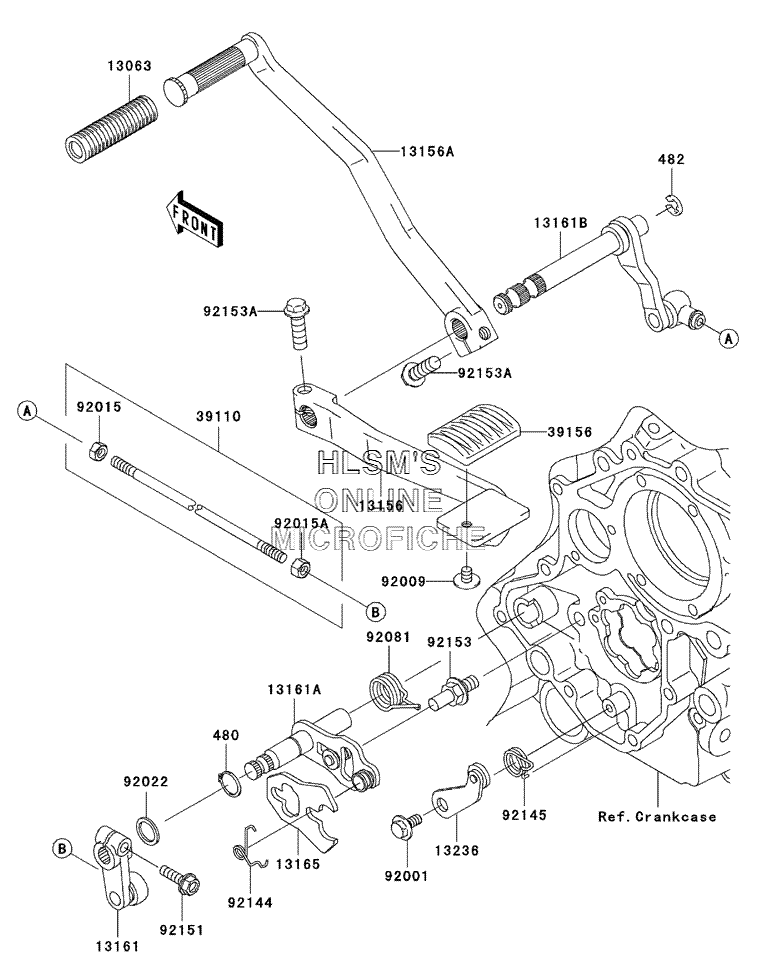

GEAR CHANGE MECHANISM для Kawasaki Vulcan 1600 Classic - 2004 года выпуска
-
№АртикулНазвание
-
480480J1300 CIRCLIP, TYPE, C, 13MMCIRCLIP, TYPE, C, 13MM
-
482482L0100 CIRCLIP, TYPE, E, 10MMCIRCLIP, TYPE, E, 10MM
-
1306313063-002 DAMPER, PEDALDAMPER, PEDAL
-
1315613156-0019 LEVER, CHANGE, PEDAL, REARLEVER, CHANGE, PEDAL, REAR
-
13156A13156-0026 LEVER, CHANGE, PEDAL, FRONTLEVER, CHANGE, PEDAL, FRONT
-
1316113161-1253 LEVER, COMP, CHANGE SHAFTLEVER, COMP, CHANGE SHAFT
-
13161A13161-1254 LEVER, COMP, CHANGE SHAFTLEVER, COMP, CHANGE SHAFT
-
13161B13161-1294 LEVER, COMP, CHANGE SHAFTLEVER, COMP, CHANGE SHAFT
-
1316513165-1120 PAWLPAWL
-
1323613236-1126 LEVER, COMP, POSITIONLEVER, COMP, POSITION
-
3911039110-1119 ROD, ASSY, TIEROD, ASSY, TIE
-
3915639156-1641 PADPAD
-
9200192001-1715 BOLT, FLANGED, M6X14BOLT, FLANGED, M6X14
-
9200992009-1677 SCREW, 6X8SCREW, 6X8
-
9201592015-1443 NUT, 6MMNUT, 6MM
-
92015A92015-1444 NUT, LEFT HANDED, 6MMNUT, LEFT HANDED, 6MM
-
9202292022-1224 WASHER, 13.2X20X0.5WASHER, 13.2X20X0.5
-
9208192081-1869 SPRING, CHANGE PEDAL RETURNSPRING, CHANGE PEDAL RETURN
-
9214492144-1029 SPRINGSPRING
-
9214592145-0008 SPRING, RETURNSPRING, RETURN
-
9215192151-1226 BOLT, FLANGED, M6X20BOLT, FLANGED, M6X20
-
9215392153-1076 BOLT, RETURN SPRINGBOLT, RETURN SPRING
-
92153A92153-1268 BOLT, 8X25BOLT, 8X25
