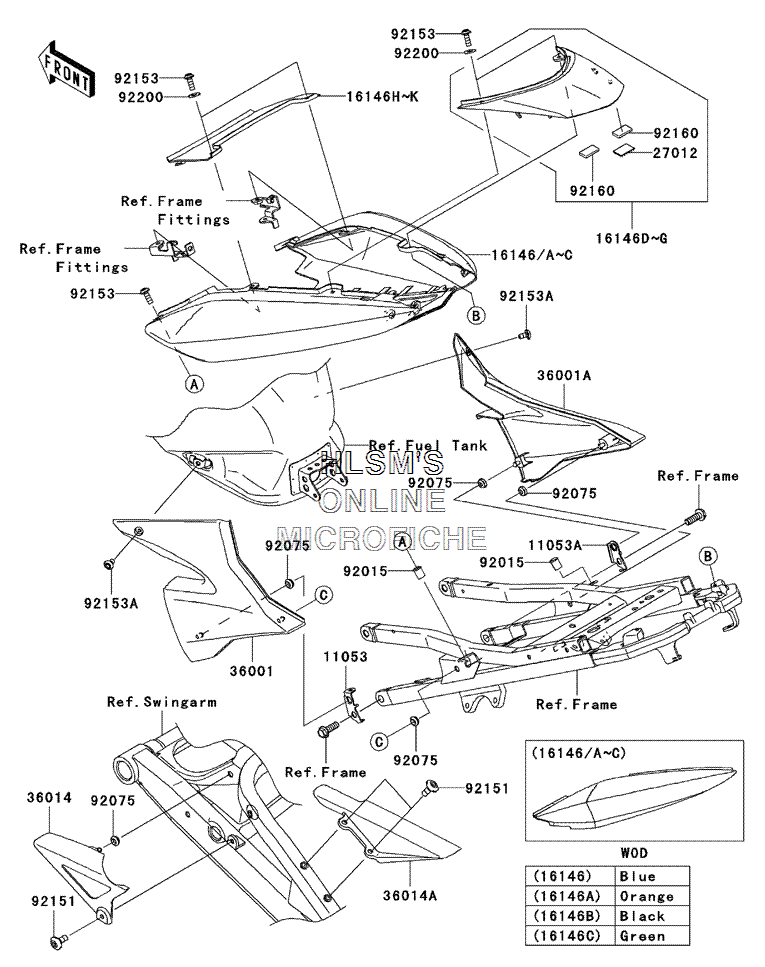

SIDE COVERS W/ CHAIN COVER для Kawasaki NINJA ZX-10R - 2004 года выпуска
-
№АртикулНазвание
-
1105311053-0394 BRACKET, SIDE COVER (LEFT/FRONT)BRACKET, SIDE COVER (LEFT/FRONT)
-
11053A11053-0395 BRACKET, SIDE COVER (RIGHT/FRONT)BRACKET, SIDE COVER (RIGHT/FRONT)
-
1614616146-0023-235 COVER, ASSY, TAIL (C.T.BLUE)COVER, ASSY, TAIL (C.T.BLUE)
-
16146A16146-0023-470 COVER, ASSY, TAIL (P.B.ORANGE)COVER, ASSY, TAIL (P.B.ORANGE)
-
16146B16146-0023-660 COVER, ASSY, TAIL (M.S.BLACK)COVER, ASSY, TAIL (M.S.BLACK)
-
16146C16146-0023-7F COVER, ASSY, TAIL (L.GREEN)COVER, ASSY, TAIL (L.GREEN)
-
16146D16146-0024-235 COVER, ASSY, TAIL, REAR (C.T.BLUE)COVER, ASSY, TAIL, REAR (C.T.BLUE)
-
16146E16146-0024-470 COVER, ASSY, TAIL, REAR (P.B.ORANGE)COVER, ASSY, TAIL, REAR (P.B.ORANGE)
-
16146F16146-0024-660 COVER, ASSY, TAIL, REAR (M.S.BLACK)COVER, ASSY, TAIL, REAR (M.S.BLACK)
-
16146G16146-0024-7F COVER, ASSY, TAIL, REAR (L.GREEN)COVER, ASSY, TAIL, REAR (L.GREEN)
-
16146H16146-0025-235 COVER, ASSY, TAIL, FRONT (C.T.BLUE)COVER, ASSY, TAIL, FRONT (C.T.BLUE)
-
16146I16146-0025-470 COVER, ASSY, TAIL, FRONT (P.B.ORANGE)COVER, ASSY, TAIL, FRONT (P.B.ORANGE)
-
16146J16146-0025-660 COVER, ASSY, TAIL, FRONT (M.S.BLACK)COVER, ASSY, TAIL, FRONT (M.S.BLACK)
-
16146K16146-0025-7F COVER, ASSY, TAIL, FRONT (L.GREEN)COVER, ASSY, TAIL, FRONT (L.GREEN)
-
2701227012-0049 MAGIC TAPEMAGIC TAPE
-
3600136001-0036-8J COVER, SIDE (LEFT) (F.S.BLACK)COVER, SIDE (LEFT) (F.S.BLACK)
-
36001A36001-0037-8J COVER, SIDE (RIGHT) (F.S.BLACK)COVER, SIDE (RIGHT) (F.S.BLACK)
-
3601436014-0009 CASE, CHAIN, FRONTCASE, CHAIN, FRONT
-
36014A36014-0018 CASE, CHAIN, REARCASE, CHAIN, REAR
-
9201592015-1700 NUTNUT
-
9207592075-1011 DAMPERDAMPER
-
9215192151-1654 BOLT, SOCKET, 6X14BOLT, SOCKET, 6X14
-
9215392153-0478 BOLT, 6X18BOLT, 6X18
-
92153A92153-0730 BOLT, SOCKET, 6X11BOLT, SOCKET, 6X11
-
9216092160-1935 DAMPERDAMPER
-
9220092200-1388 WASHER, 6.5X14X1WASHER, 6.5X14X1
