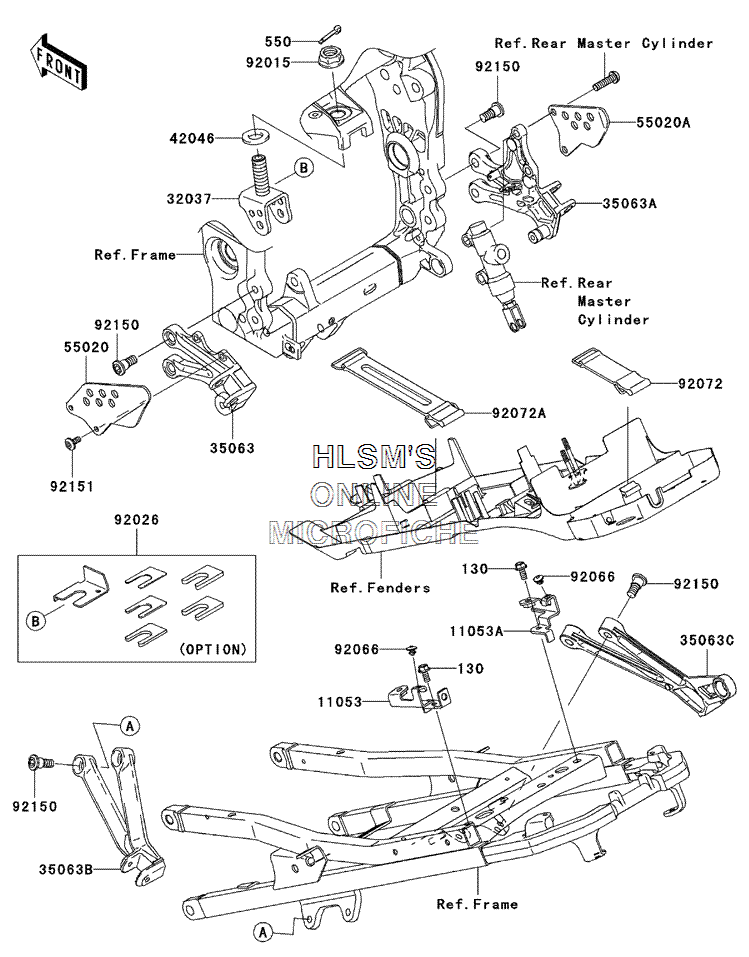

FRAME FITTINGS для Kawasaki NINJA ZX-10R - 2004 года выпуска`
-
№АртикулНазвание
-
130130L0614 BOLT, FLANGEDBOLT, FLANGED
-
550550S3025 PIN, COTTER, 3X25PIN, COTTER, 3X25
-
1105311053-0740 BRACKET, HELMET HOOKBRACKET, HELMET HOOK
-
11053A11053-0741 BRACKET, HELMET HOOKBRACKET, HELMET HOOK
-
3203732037-0013 BRACKET, SHOCKABSORBERBRACKET, SHOCKABSORBER
-
3506335063-0051 STAY, FRONT (LEFT)STAY, FRONT (LEFT)
-
35063A35063-0052 STAY, FRONT (RIGHT)STAY, FRONT (RIGHT)
-
35063B35063-0060 STAY, REAR (LEFT)STAY, REAR (LEFT)
-
35063C35063-0061 STAY, REAR (RIGHT)STAY, REAR (RIGHT)
-
4204642046-009 WASHER, 17.3X32X3.2WASHER, 17.3X32X3.2
-
5502055020-0107 GUARD, FRONT STEP STAY (LEFT)GUARD, FRONT STEP STAY (LEFT)
-
55020A55020-0108 GUARD, FRONT STEP STAY (RIGHT)GUARD, FRONT STEP STAY (RIGHT)
-
9201592015-1881 NUT, FLANGED, 16MMNUT, FLANGED, 16MM
-
9202692026-0057 SPACER, SET (OPTION)SPACER, SET (OPTION)
-
9206692066-1547 PLUGPLUG
-
9207292072-1176 BAND, TOOLBAND, TOOL
-
92072A92072-1306 BAND, L=168BAND, L=168
-
9215092150-1839 BOLT, SOCKET, 8X20BOLT, SOCKET, 8X20
-
9215192151-1654 BOLT, SOCKET, 6X14BOLT, SOCKET, 6X14
