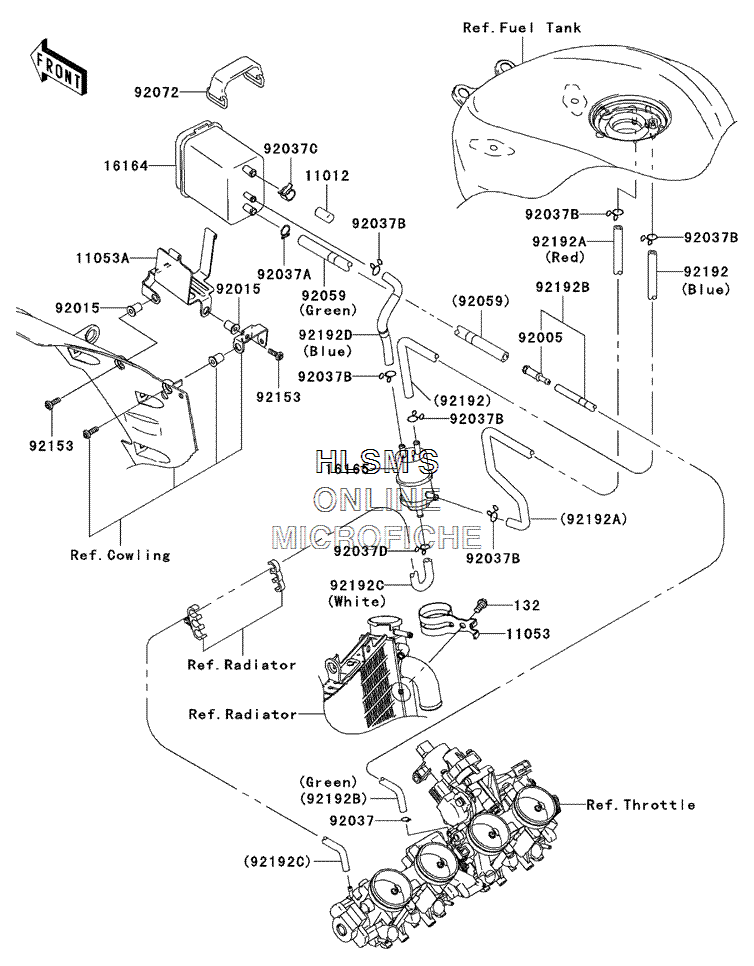

FUEL EVAPORATIVE SYSTEM (CALIF ONLY) для Kawasaki NINJA ZX-10R - 2004 года выпуска

  • №
    Артикул
    Название
  • 132
    132L0614 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 11012
    11012-1388 CAP, CANISTER
    CAP, CANISTER
  • 11053
    11053-0453 BRACKET, SEPARATOR
    BRACKET, SEPARATOR
  • 11053A
    11053-0959 BRACKET, CANISTER
    BRACKET, CANISTER
  • 16164
    16164-1001 CANISTER
    CANISTER
  • 16165
    16165-1001 SEPARATOR
    SEPARATOR
  • 92005
    92005-0023 FITTING
    FITTING
  • 92015
    92015-1757 NUT, WELL, 5MM
    NUT, WELL, 5MM
  • 92037
    92037-010 CLAMP, TUBE
    CLAMP, TUBE
  • 92037A
    92037-1104 CLAMP, HOSE
    CLAMP, HOSE
  • 92037B
    92037-147 CLAMP, TUBE
    CLAMP, TUBE
  • 92037C
    92037-1512 CLAMP, CANISTER
    CLAMP, CANISTER
  • 92037D
    92037-1712 CLAMP
    CLAMP
  • 92059
    92059-1642 TUBE, 7X12X200 (GREEN)
    TUBE, 7X12X200 (GREEN)
  • 92072
    92072-1419 BAND, L=50
    BAND, L=50
  • 92153
    92153-1244 BOLT, SOCKET, 5X16
    BOLT, SOCKET, 5X16
  • 92192
    92192-0042 TUBE, FUEL TANK, SEPARATOR (BLUE)
    TUBE, FUEL TANK, SEPARATOR (BLUE)
  • 92192A
    92192-0043 TUBE, SEPARATOR, FUEL TANK (RED)
    TUBE, SEPARATOR, FUEL TANK (RED)
  • 92192B
    92192-0132 TUBE, CANISTER, THROTTLE (GREEN)
    TUBE, CANISTER, THROTTLE (GREEN)
  • 92192C
    92192-0158 TUBE, THROTTLE, SEPARATOR (WHITE)
    TUBE, THROTTLE, SEPARATOR (WHITE)
  • 92192D
    92192-0162 TUBE, SEPARATOR, CANISTER (BLUE)
    TUBE, SEPARATOR, CANISTER (BLUE)
