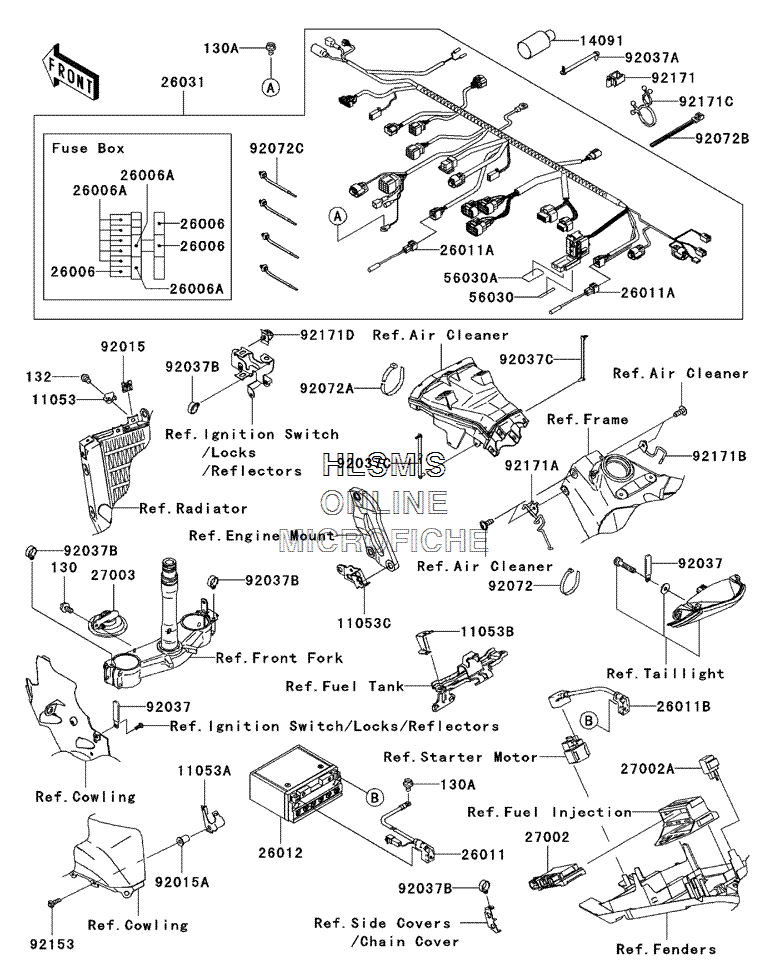

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki NINJA ZX-10R - 2004 года выпуска
-
№АртикулНазвание
-
130130L0610 BOLT, FLANGEDBOLT, FLANGED
-
130A130V0610 BOLT, FLANGED, 6X10BOLT, FLANGED, 6X10
-
132132L0612 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
1105311053-0593 BRACKET, RADIATORBRACKET, RADIATOR
-
11053A11053-0715 BRACKET, UPPER COWLINGBRACKET, UPPER COWLING
-
11053B11053-0718 BRACKET, FUEL PUMP COUPLERBRACKET, FUEL PUMP COUPLER
-
11053C11053-1297 BRACKET, HARNESSBRACKET, HARNESS
-
1409114091-0211 COVER, TAIL LAMP COUPLERCOVER, TAIL LAMP COUPLER
-
2600626006-0001 FUSE, 15AFUSE, 15A
-
26006A26006-1078 FUSE, 10AFUSE, 10A
-
2601126011-0017 WIRE, LEAD, BATTERY (-)WIRE, LEAD, BATTERY (-)
-
26011A26011-0037 WIRE, LEADWIRE, LEAD
-
26011B26011-0047 WIRE, LEAD, BATTERY (+)WIRE, LEAD, BATTERY (+)
-
2601226012-0036 BATTERY, YT12B, BS, 12V 12AHBATTERY, YT12B, BS, 12V 12AH
-
2603126031-0208 HARNESS, MAINHARNESS, MAIN
-
2700227002-0001 RELAY, ASSYRELAY, ASSY
-
27002A27002-1101 RELAY, ASSY, TURN SIGNALRELAY, ASSY, TURN SIGNAL
-
2700327003-0008 HORNHORN
-
5603056030-0016 LABEL, FUSE BOXLABEL, FUSE BOX
-
56030A56030-0046 LABEL, FUSE BOXLABEL, FUSE BOX
-
9201592015-1487 NUTNUT
-
92015A92015-1757 NUT, WELL, 5MMNUT, WELL, 5MM
-
9203792037-1069 CLAMP, L=60CLAMP, L=60
-
92037A92037-1163 CLAMP, SPEED, L=58CLAMP, SPEED, L=58
-
92037B92037-1827 CLAMP, HOSECLAMP, HOSE
-
92037C92037-1903 CLAMP, SPEED, L=80.5CLAMP, SPEED, L=80.5
-
9207292072-1195 BAND, L=202BAND, L=202
-
92072A92072-1197 BAND, L=365BAND, L=365
-
92072B92072-1293 BAND, L=140BAND, L=140
-
92072C92072-1414 BANDBAND
-
9215392153-1244 BOLT, SOCKET, 5X16BOLT, SOCKET, 5X16
-
9217192171-0290 CLAMPCLAMP
-
92171A92171-0342 CLAMP, HARNESS (LEFT)CLAMP, HARNESS (LEFT)
-
92171B92171-0369 CLAMP, HARNESS (RIGHT)CLAMP, HARNESS (RIGHT)
-
92171C92171-0425 CLAMPCLAMP
-
92171D92171-1269 CLAMP, HARNESSCLAMP, HARNESS
