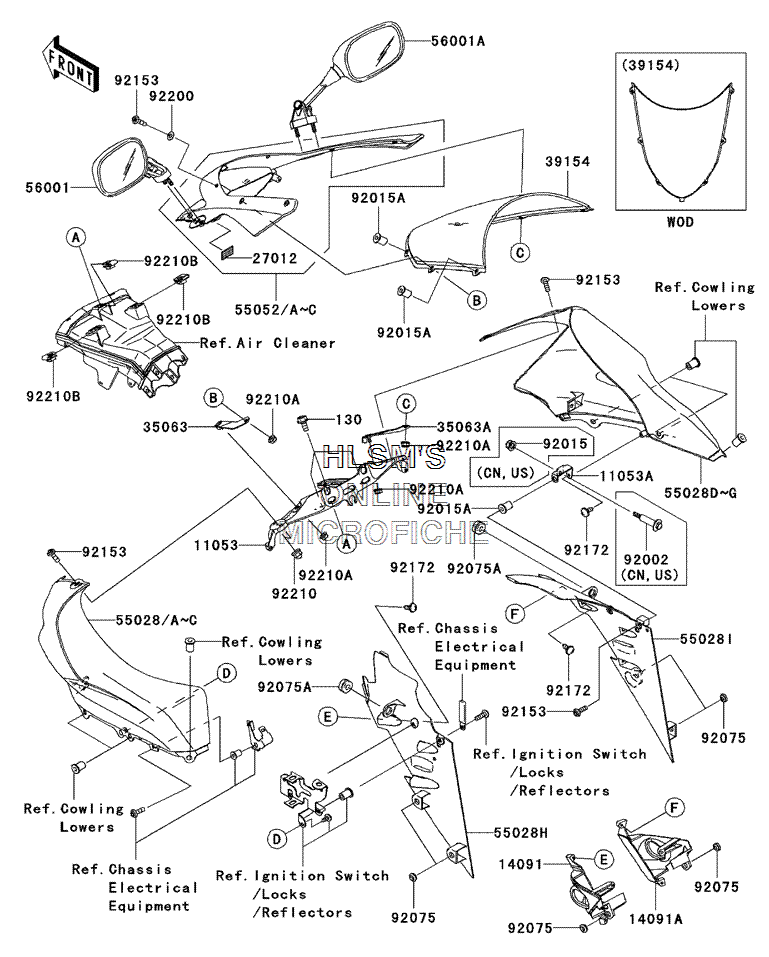

COWLING для Kawasaki NINJA ZX-10R - 2004 года выпуска
-
№АртикулНазвание
-
130130L0616 BOLT, FLANGEDBOLT, FLANGED
-
1105311053-0404 BRACKET, UPPER COWLINGBRACKET, UPPER COWLING
-
11053A11053-0459 BRACKET, UPPER COWLINGBRACKET, UPPER COWLING
-
1409114091-0269 COVER, SIGNAL LAMP (LEFT)COVER, SIGNAL LAMP (LEFT)
-
14091A14091-0271 COVER, SIGNAL LAMP (RIGHT)COVER, SIGNAL LAMP (RIGHT)
-
2701227012-0051 MAGIC TAPEMAGIC TAPE
-
3506335063-0100 STAY, UPPER COWLING (LEFT)STAY, UPPER COWLING (LEFT)
-
35063A35063-0101 STAY, UPPER COWLING (RIGHT)STAY, UPPER COWLING (RIGHT)
-
3915439154-0001 WINDSHIELDWINDSHIELD
-
5502855028-0005-235 COWLING, UPPER (LEFT) (C.T.BLUE)COWLING, UPPER (LEFT) (C.T.BLUE)
-
55028A55028-0005-470 COWLING, UPPER (LEFT) (P.B.ORANGE)COWLING, UPPER (LEFT) (P.B.ORANGE)
-
55028B55028-0005-660 COWLING, UPPER (LEFT) (M.S.BLACK)COWLING, UPPER (LEFT) (M.S.BLACK)
-
55028C55028-0005-7F COWLING, UPPER (LEFT) (L.GREEN)COWLING, UPPER (LEFT) (L.GREEN)
-
55028D55028-0006-235 COWLING, UPPER (RIGHT) (C.T.BLUE)COWLING, UPPER (RIGHT) (C.T.BLUE)
-
55028E55028-0006-470 COWLING, UPPER (RIGHT) (P.B.ORANGE)COWLING, UPPER (RIGHT) (P.B.ORANGE)
-
55028F55028-0006-660 COWLING, UPPER (RIGHT) (M.S.BLACK)COWLING, UPPER (RIGHT) (M.S.BLACK)
-
55028G55028-0006-7F COWLING, UPPER (RIGHT) (L.GREEN)COWLING, UPPER (RIGHT) (L.GREEN)
-
55028H55028-0038 COWLING, FRONT (LEFT)COWLING, FRONT (LEFT)
-
55028I55028-0039 COWLING, FRONT (RIGHT)COWLING, FRONT (RIGHT)
-
5505255052-5121-235 COWLING, ASSY., UPPER (CENTER) (BLUE)COWLING, ASSY., UPPER (CENTER) (BLUE)
-
55052A55052-5121-470 COWLING, ASSY., UPPER (CENTER), ORANGECOWLING, ASSY., UPPER (CENTER), ORANGE
-
55052B55052-5121-660 COWLING, ASSY, UPPER (CENTER) (BLACK)COWLING, ASSY, UPPER (CENTER) (BLACK)
-
55052C55052-5121-7F COWLING, ASSY., UPPER (CENTER) (GREEN)COWLING, ASSY., UPPER (CENTER) (GREEN)
-
5600156001-0005 MIRROR, ASSY (LEFT)MIRROR, ASSY (LEFT)
-
56001A56001-0006 MIRROR, ASSY (RIGHT)MIRROR, ASSY (RIGHT)
-
9200292002-1421 BOLT (EXCEPT CALIF.)BOLT (EXCEPT CALIF.)
-
9201592015-1603 NUT, LOCK, FLANGED, 6MM (EXCEPT CALIF.)NUT, LOCK, FLANGED, 6MM (EXCEPT CALIF.)
-
92015A92015-1757 NUT, WELL, 5MMNUT, WELL, 5MM
-
9207592075-1067 DAMPERDAMPER
-
92075A92075-1690 DAMPERDAMPER
-
9215392153-1244 BOLT, SOCKET, 5X16BOLT, SOCKET, 5X16
-
9217292172-0006 SCREW, TAPPING, 5X14SCREW, TAPPING, 5X14
-
9220092200-1011 WASHER, NYLON, 5.2X12X1WASHER, NYLON, 5.2X12X1
-
9221092210-0003 NUT, CAP, 6MMNUT, CAP, 6MM
-
92210A92210-0007 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
-
92210B92210-0130 NUTNUT
