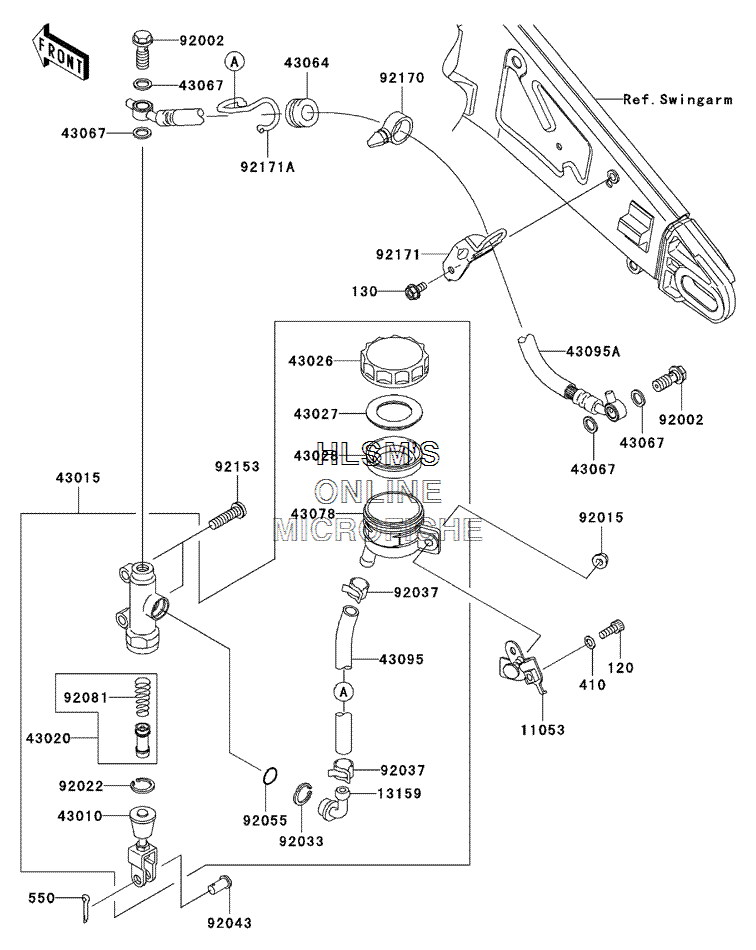

BRAKE - MASTER CYLINDER - REAR для Kawasaki NINJA ZX-10R - 2004 года выпуска`
-
№АртикулНазвание
-
120120S0616 BOLT, SOCKETBOLT, SOCKET
-
130130L0612 BOLT, FLANGEDBOLT, FLANGED
-
410410F0600 WASHER, PLAIN, SMALL, 6MM (BLACK)WASHER, PLAIN, SMALL, 6MM (BLACK)
-
550550D2015 PIN, COTTER, 2.0X15PIN, COTTER, 2.0X15
-
1105311053-1307 BRACKET, RESERVOIR TANKBRACKET, RESERVOIR TANK
-
1315913159-1052 CONNECTOR, REAR MASTER CYLINDERCONNECTOR, REAR MASTER CYLINDER
-
4301043010-1055 ROD, ASSY, BRAKEROD, ASSY, BRAKE
-
4301543015-0016 CYLINDER, ASSY, MASTER, REARCYLINDER, ASSY, MASTER, REAR
-
4302043020-1057 PISTON, COMP, BRAKEPISTON, COMP, BRAKE
-
4302643026-1051 CAP, BRAKECAP, BRAKE
-
4302743027-1051 PLATE, DIAPHRAGMPLATE, DIAPHRAGM
-
4302843028-1057 DIAPHRAGM, MASTER CYLINDERDIAPHRAGM, MASTER CYLINDER
-
4306443064-006 GROMMET, HOSE CLAMPGROMMET, HOSE CLAMP
-
4306743067-001 WASHER, 10.5X15X1.5WASHER, 10.5X15X1.5
-
4307843078-1082 RESERVOIR, REAR MASTER CYLINDERRESERVOIR, REAR MASTER CYLINDER
-
4309543095-0041 HOSE, BRAKE, REAR MASTER CYLINDERHOSE, BRAKE, REAR MASTER CYLINDER
-
43095A43095-0063 HOSE, BRAKE, REARHOSE, BRAKE, REAR
-
9200292002-1888 BOLT, OIL, L=23BOLT, OIL, L=23
-
9201592015-1386 NUT, 6MMNUT, 6MM
-
9202292022-1601 WASHER, CIRCRIPWASHER, CIRCRIP
-
9203392033-1186 RING, SNAP, 20.5MMRING, SNAP, 20.5MM
-
9203792037-1547 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
9204392043-1303 PIN, 8MMPIN, 8MM
-
9205592055-1251 O-RING, MASTER CYLINDERO-RING, MASTER CYLINDER
-
9208192081-1737 SPRING, MASTER CYLINDERSPRING, MASTER CYLINDER
-
9215392153-0393 BOLT, SOCKET, 8X30BOLT, SOCKET, 8X30
-
9217092170-1067 CLAMPCLAMP
-
9217192171-0309 CLAMP, HOSECLAMP, HOSE
-
92171A92171-0386 CLAMP, HOSECLAMP, HOSE
