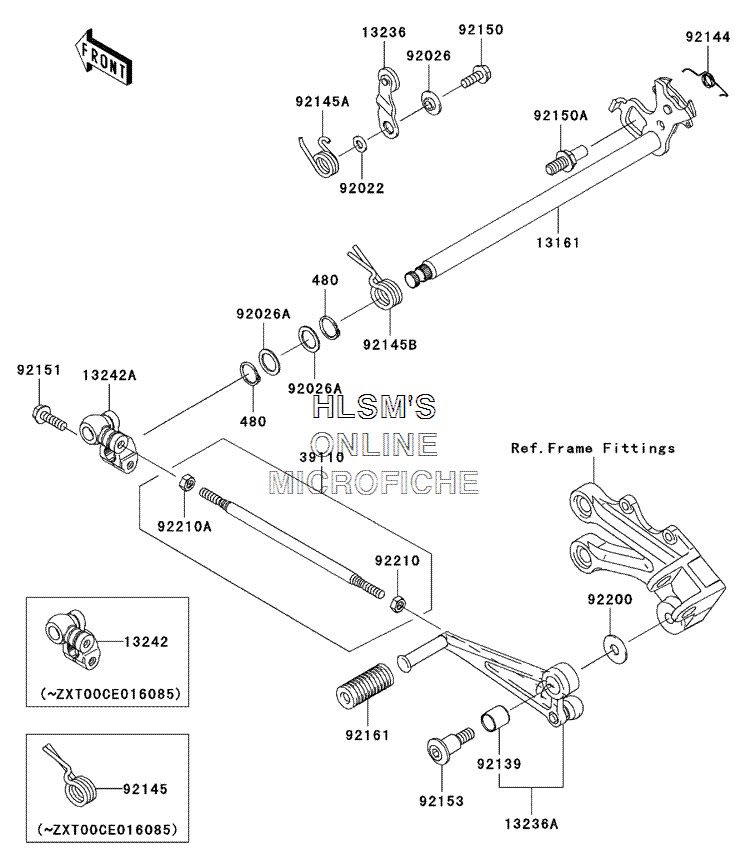

GEAR CHANGE MECHANISM для Kawasaki NINJA ZX-10R - 2004 года выпуска

  • №
    Артикул
    Название
  • 480
    480J1400 CIRCLIP, TYPE, C, 14MM
    CIRCLIP, TYPE, C, 14MM
  • 13161
    13161-0011 LEVER, COMP, CHANGE SHAFT
    LEVER, COMP, CHANGE SHAFT
  • 13236
    13236-0062 LEVER, COMP, POSITION
    LEVER, COMP, POSITION
  • 13236A
    13236-0063 LEVER, COMP, CHANGE PEDAL
    LEVER, COMP, CHANGE PEDAL
  • 13242
    13242-0013 LEVER, ASSY, CHANGE (SERIAL ZXT00CE016085 AND BELOW)
    LEVER, ASSY, CHANGE (SERIAL ZXT00CE016085 AND BELOW)
  • 13242A
    13242-0016 LEVER, ASSY, CHANGE (SERIAL ZXT00CE016086 AND ABOVE)
    LEVER, ASSY, CHANGE (SERIAL ZXT00CE016086 AND ABOVE)
  • 39110
    39110-1131 ROD, ASSY, TIE
    ROD, ASSY, TIE
  • 92022
    92022-1827 WASHER, 6X12.8X1.2
    WASHER, 6X12.8X1.2
  • 92026
    92026-1217 SPACER
    SPACER
  • 92026A
    92026-1534 SPACER, 14X20X1.0
    SPACER, 14X20X1.0
  • 92139
    92139-0023 BUSHING
    BUSHING
  • 92144
    92144-1029 SPRING
    SPRING
  • 92145
    92145-0201 SPRING (SERIAL ZXT00CE016085 AND BELOW)
    SPRING (SERIAL ZXT00CE016085 AND BELOW)
  • 92145A
    92145-0202 SPRING
    SPRING
  • 92145B
    92145-0256 SPRING (SERIAL ZXT00CE016086 AND ABOVE)
    SPRING (SERIAL ZXT00CE016086 AND ABOVE)
  • 92150
    92150-1394 BOLT, 6X16
    BOLT, 6X16
  • 92150A
    92150-1869 BOLT, RETURN SPRING
    BOLT, RETURN SPRING
  • 92151
    92151-1226 BOLT, 6X20
    BOLT, 6X20
  • 92153
    92153-0446 BOLT, 8X32
    BOLT, 8X32
  • 92161
    92161-1300 DAMPER, CHANGE LEVER
    DAMPER, CHANGE LEVER
  • 92200
    92200-0174 WASHER, 8.0X22.0X1.5
    WASHER, 8.0X22.0X1.5
  • 92210
    92210-1100 NUT, 6MM
    NUT, 6MM
  • 92210A
    92210-1101 NUT, LEFT HANDED, 6MM
    NUT, LEFT HANDED, 6MM
