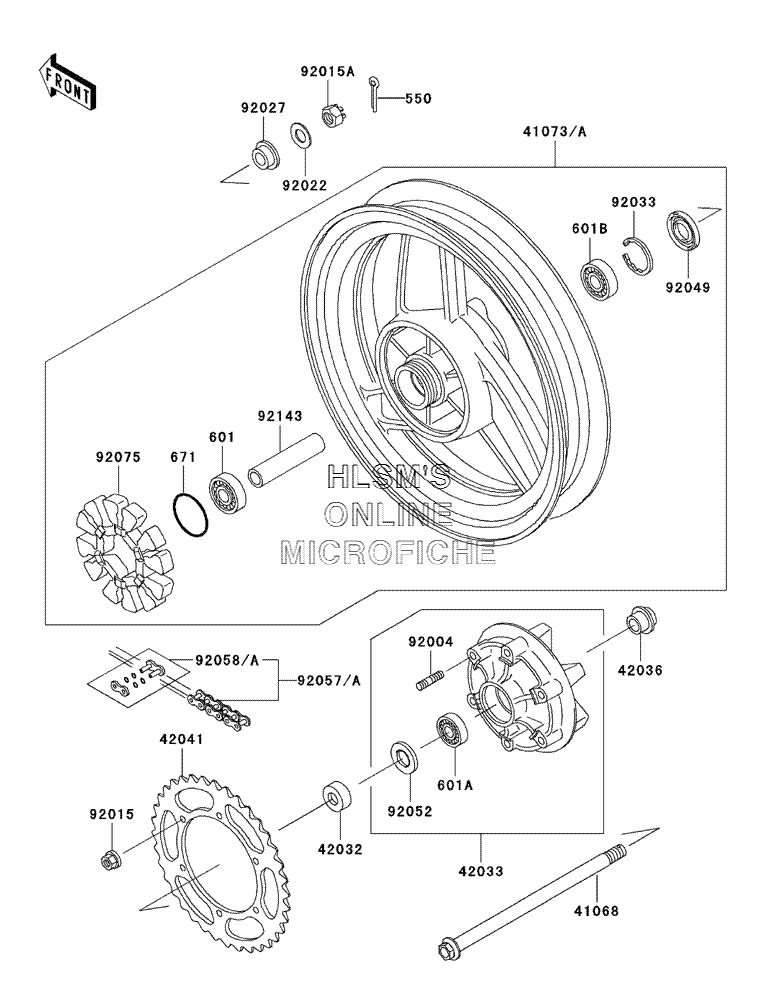

WHEEL - REAR W/ CHAIN для Kawasaki NINJA 500R - 2003 года выпуска
-
№АртикулНазвание
-
550550D4035 PIN, COTTER, 4.0X35PIN, COTTER, 4.0X35
-
601601B6203UU BEARING, BALL, #6203UUC3BEARING, BALL, #6203UUC3
-
601A601B6205G BEARING, BALL, #6205GBEARING, BALL, #6205G
-
601B601B6303UU BEARING, BALL, #6303UUC3BEARING, BALL, #6303UUC3
-
671671B2550 O-RINGO-RING
-
4106841068-1223 AXLE, REARAXLE, REAR
-
4107341073-1474-GE WHEEL, ASSY, REAR (G.GRAY)WHEEL, ASSY, REAR (G.GRAY)
-
4203242032-063 COLLAR, REAR AXLE, L=13COLLAR, REAR AXLE, L=13
-
4203342033-1210-7J COUPLING, ASSY, REAR HUB (M.SILVER)COUPLING, ASSY, REAR HUB (M.SILVER)
-
4203642036-1055 SLEEVE, REAR HUB, L=30SLEEVE, REAR HUB, L=30
-
4204142041-1354 SPROCKET, HUB (41 TEETH)SPROCKET, HUB (41 TEETH)
-
9200492004-1275 STUD, 10X19STUD, 10X19
-
9201592015-1335 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
92015A92015-1947 NUT, CASTLE, 16MMNUT, CASTLE, 16MM
-
9202292022-1916 WASHER, 17.5X34X2.0WASHER, 17.5X34X2.0
-
9202792027-1785 COLLAR, REAR HUBCOLLAR, REAR HUB
-
9203392033-1042 RING, SNAP, 47MMRING, SNAP, 47MM
-
9204992049-1056 SEAL, OIL, BJN28475SEAL, OIL, BJN28475
-
9205292052-006 SEAL, OIL, TWC35527SEAL, OIL, TWC35527
-
9205792057-0009 CHAIN, DRIVE, EK520SX, OX104LCHAIN, DRIVE, EK520SX, OX104L
-
92058A92058-1103 JOINT, CHAIN, DRIVEJOINT, CHAIN, DRIVE
-
9207592075-1436 DAMPER, REAR HUB SHOCKDAMPER, REAR HUB SHOCK
-
9214392143-1416 COLLAR, REAR HUB, L=111COLLAR, REAR HUB, L=111
