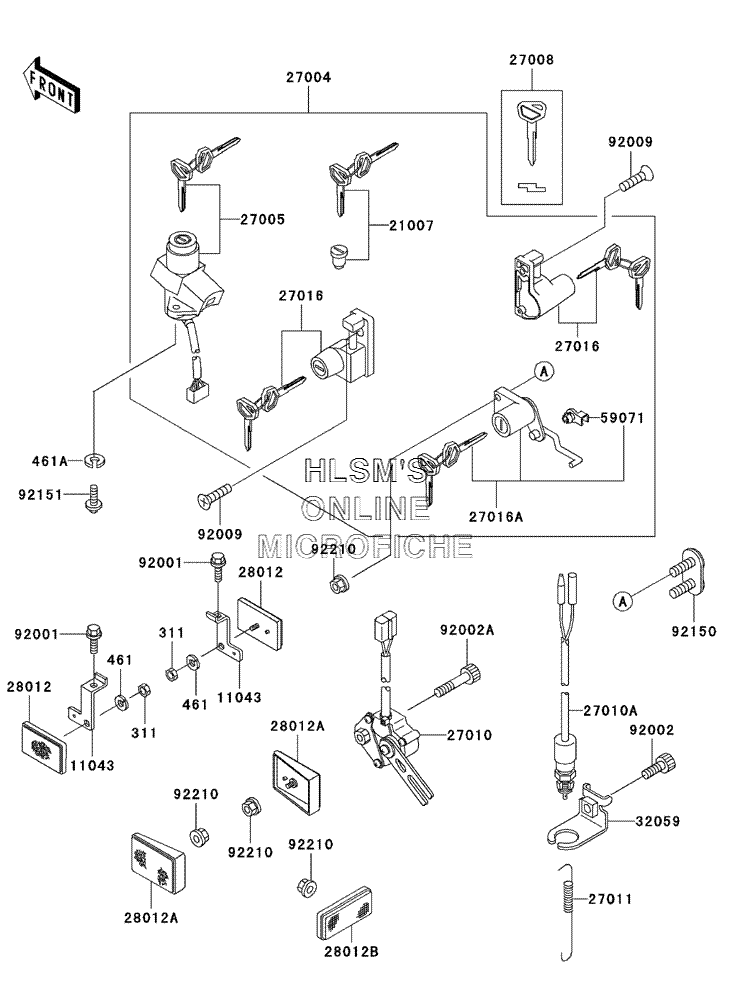

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki NINJA 500R - 2003 года выпуска

  • №
    Артикул
    Название
  • 311
    311C0500 NUT, HEX
    NUT, HEX
  • 461
    461K0500 WASHER, SPRING, 5MM (BLACK)
    WASHER, SPRING, 5MM (BLACK)
  • 461A
    461L0600 WASHER, SPRING
    WASHER, SPRING
  • 11043
    11043-1423 BRACKET, FRONT, REFLECTOR
    BRACKET, FRONT, REFLECTOR
  • 21007
    21007-5037 ROTOR, LOCK, TANK CAP
    ROTOR, LOCK, TANK CAP
  • 27004
    27004-5464 SWITCH, ASSY
    SWITCH, ASSY
  • 27005
    27005-5101 SWITCH, ASSY, IGNITION
    SWITCH, ASSY, IGNITION
  • 27008
    27008-1173 KEY, LOCK, BLANK (OPT)
    KEY, LOCK, BLANK (OPT)
  • 27010
    27010-1467 SWITCH, SIDE STAND
    SWITCH, SIDE STAND
  • 27010A
    27010-1479 SWITCH, REAR BRAKE
    SWITCH, REAR BRAKE
  • 27011
    27011-006 SPRING, BRAKE LAMP SWITCH
    SPRING, BRAKE LAMP SWITCH
  • 27016
    27016-5211 LOCK, ASSY, HELMET
    LOCK, ASSY, HELMET
  • 27016A
    27016-5217 LOCK, ASSY, SEAT
    LOCK, ASSY, SEAT
  • 28012
    28012-1003 REFLECTOR, REFLEX
    REFLECTOR, REFLEX
  • 28012A
    28012-1056 REFLECTOR, REFLEX, REAR
    REFLECTOR, REFLEX, REAR
  • 28012B
    28012-1077 REFLECTOR, REFLEX
    REFLECTOR, REFLEX
  • 32059
    32059-1121 BRACKET, SWITCH, REAR BRAKE
    BRACKET, SWITCH, REAR BRAKE
  • 59071
    59071-1103 JOINT
    JOINT
  • 92001
    92001-1847 BOLT, 6X14 (BLACK)
    BOLT, 6X14 (BLACK)
  • 92002
    92002-1175 BOLT, SOCKET, 6X14
    BOLT, SOCKET, 6X14
  • 92002A
    92002-1537 BOLT, 6X28
    BOLT, 6X28
  • 92009
    92009-1305 SCREW, 5X18
    SCREW, 5X18
  • 92150
    92150-1820 BOLT, SEAT LOCK
    BOLT, SEAT LOCK
  • 92151
    92151-1911 BOLT, TORX, 6X16
    BOLT, TORX, 6X16
  • 92210
    92210-0007 NUT, FLANGED, 5MM
    NUT, FLANGED, 5MM
