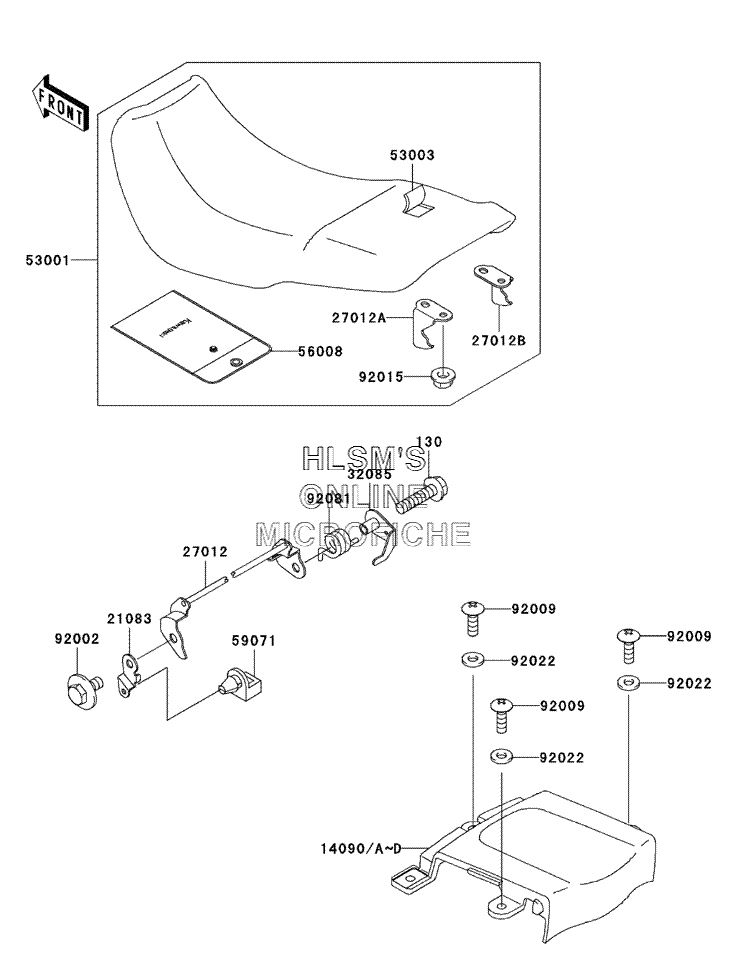

SEAT для Kawasaki NINJA 500R - 2003 года выпуска

  • №
    Артикул
    Название
  • 130
    130J0625 BOLT, FLANGED, 6X25
    BOLT, FLANGED, 6X25
  • 14090A
    14090-1369-SL COVER, SEAT (P.C.GRAY)
    COVER, SEAT (P.C.GRAY)
  • 14090B
    14090-1369-T2 COVER, SEAT (P.C.GRAY) (CANADA ONLY)
    COVER, SEAT (P.C.GRAY) (CANADA ONLY)
  • 21083
    21083-1063 ARM, SEAT LOCK
    ARM, SEAT LOCK
  • 27012
    27012-1363 HOOK, SEAT LOCK
    HOOK, SEAT LOCK
  • 27012A
    27012-1377 HOOK, SEAT (LEFT)
    HOOK, SEAT (LEFT)
  • 27012B
    27012-1378 HOOK, SEAT (RIGHT)
    HOOK, SEAT (RIGHT)
  • 32085
    32085-1270 STOPPER, SEAT LOCK SPRING
    STOPPER, SEAT LOCK SPRING
  • 53001
    53001-1726-MA SEAT, ASSY, DUAL (BLACK)
    SEAT, ASSY, DUAL (BLACK)
  • 53003
    53003-1284-MA LEATHER, SEAT (BLACK)
    LEATHER, SEAT (BLACK)
  • 56008
    56008-1066 BAG, HAND BOOK
    BAG, HAND BOOK
  • 59071
    59071-1103 JOINT
    JOINT
  • 92002
    92002-1884 BOLT, 6X12
    BOLT, 6X12
  • 92009
    92009-1654 SCREW, 5X16 (BLACK)
    SCREW, 5X16 (BLACK)
  • 92015
    92015-1078 NUT, FLANGED, 6MM
    NUT, FLANGED, 6MM
  • 92022
    92022-1521 WASHER, NYLON, 5.3X11.5X1.5
    WASHER, NYLON, 5.3X11.5X1.5
  • 92081
    92081-1982 SPRING
    SPRING
