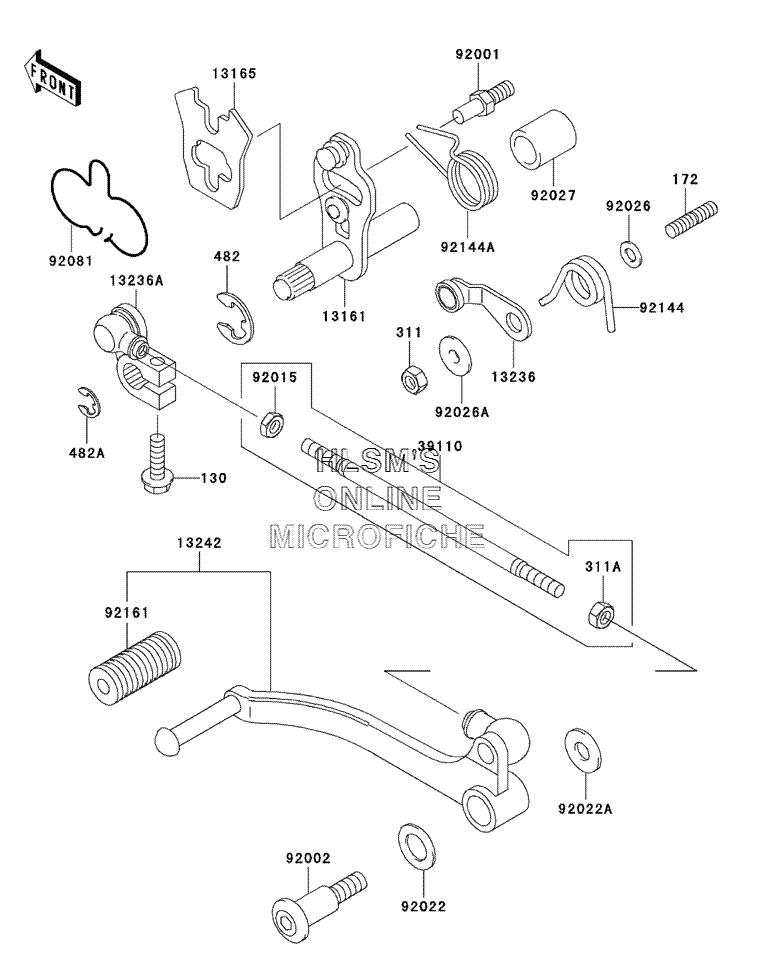

GEAR CHANGE MECHANISM для Kawasaki NINJA 500R - 2003 года выпуска

  • №
    Артикул
    Название
  • 130
    130S0620 BOLT, FLANGED, 6X20 (BLACK)
    BOLT, FLANGED, 6X20 (BLACK)
  • 172
    172G0614 BOLT, STUD, 6X14
    BOLT, STUD, 6X14
  • 311
    311G0600 NUT, HEX, 6MM
    NUT, HEX, 6MM
  • 311A
    311J0600 NUT, HEX
    NUT, HEX
  • 482
    482J0200 CIRCLIP, TYPE, E, 12MM
    CIRCLIP, TYPE, E, 12MM
  • 482A
    482L7000 CIRCLIP, TYPE, E
    CIRCLIP, TYPE, E
  • 13161
    13161-1117 LEVER, COMP, CHANGE SHAFT
    LEVER, COMP, CHANGE SHAFT
  • 13165
    13165-1034 PAWL, CHANGE LEVER
    PAWL, CHANGE LEVER
  • 13236
    13236-1103 LEVER, COMP, GEAR POSITION
    LEVER, COMP, GEAR POSITION
  • 13236A
    13236-1154 LEVER, COMP, CHANGE LINK
    LEVER, COMP, CHANGE LINK
  • 13242
    13242-0004 LEVER, ASSY, CHANGE, CHANGE PEDAL
    LEVER, ASSY, CHANGE, CHANGE PEDAL
  • 39110
    39110-1077 ROD, ASSY, TIE
    ROD, ASSY, TIE
  • 92001
    92001-1455 BOLT, RETURN SPRING
    BOLT, RETURN SPRING
  • 92002
    92002-1926 BOLT, CHANGE PEDAL
    BOLT, CHANGE PEDAL
  • 92015
    92015-1178 NUT, LEFT HANDED, 6MM
    NUT, LEFT HANDED, 6MM
  • 92022
    92022-072 WASHER, 12.5X21X1.2
    WASHER, 12.5X21X1.2
  • 92022A
    92022-1561 WASHER, 8.5X20X1.6
    WASHER, 8.5X20X1.6
  • 92026
    92026-094 SPACER, 6.3X12X1.0
    SPACER, 6.3X12X1.0
  • 92026A
    92026-1217 SPACER
    SPACER
  • 92027
    92027-1440 COLLAR, 13X18.3X21.5
    COLLAR, 13X18.3X21.5
  • 92081
    92081-1785 SPRING, CHANGE LEVER
    SPRING, CHANGE LEVER
  • 92144
    92144-1180 SPRING, POSITION LEVER
    SPRING, POSITION LEVER
  • 92144A
    92144-1644 SPRING, CHANGE PEDAL RETURN
    SPRING, CHANGE PEDAL RETURN
  • 92161
    92161-1300 DAMPER, CHANGE LEVER
    DAMPER, CHANGE LEVER
