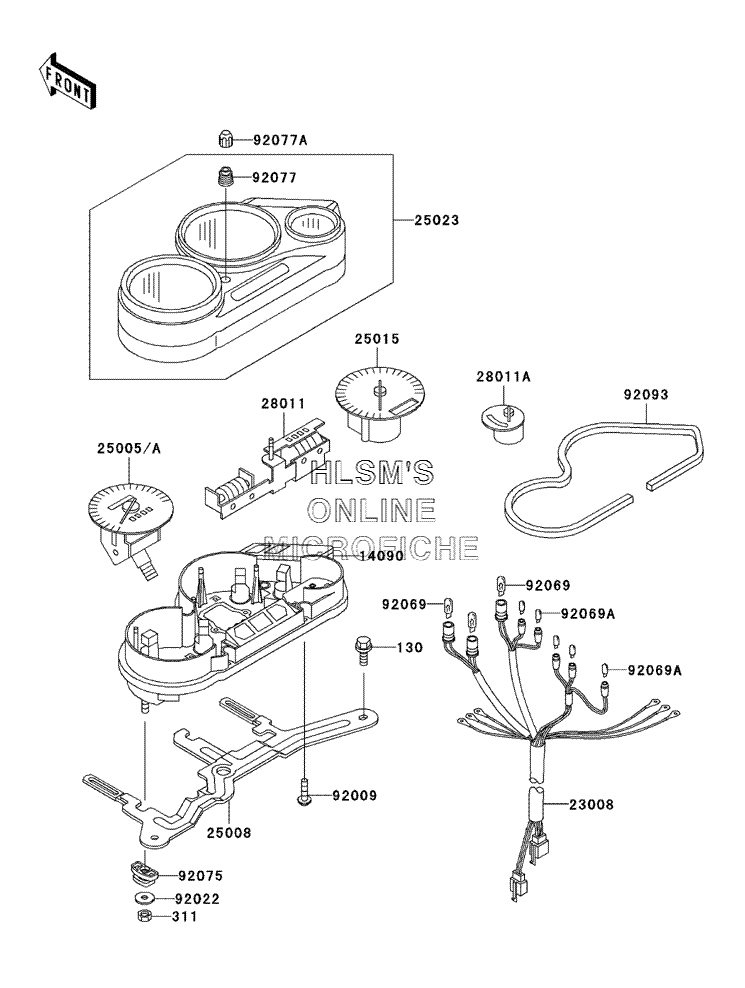

METER(S) для Kawasaki NINJA 500R - 2003 года выпуска

  • №
    Артикул
    Название
  • 130
    130C0612 BOLT, FLANGED, 6X12
    BOLT, FLANGED, 6X12
  • 311
    311B0500 NUT, HEX
    NUT, HEX
  • 14090
    14090-1869 COVER, METER HOUSING
    COVER, METER HOUSING
  • 23008
    23008-1431 SOCKET, ASSY, METER
    SOCKET, ASSY, METER
  • 25005
    25005-1706 SPEEDOMETER, KPH (CANADA ONLY)
    SPEEDOMETER, KPH (CANADA ONLY)
  • 25005A
    25005-1729 SPEEDOMETER, MPH (US ONLY)
    SPEEDOMETER, MPH (US ONLY)
  • 25008
    25008-1160 BRACKET, METER
    BRACKET, METER
  • 25015
    25015-1327 TACHOMETER, X1000R/MIN
    TACHOMETER, X1000R/MIN
  • 25023
    25023-1167 COVER, METER CASE, UPPER
    COVER, METER CASE, UPPER
  • 28011
    28011-1118 METER, TRIP
    METER, TRIP
  • 28011A
    28011-1144 METER, TEMP
    METER, TEMP
  • 92009
    92009-1163 SCREW, TAPPING, 4X16
    SCREW, TAPPING, 4X16
  • 92022
    92022-263 WASHER, 5.2X16X1.2
    WASHER, 5.2X16X1.2
  • 92069
    92069-1059 BULB, 12V 1.7W, T10
    BULB, 12V 1.7W, T10
  • 92069A
    92069-1068 BULB, 12V 3W, T6.5
    BULB, 12V 3W, T6.5
  • 92075
    92075-1495 DAMPER, METER BRACKET
    DAMPER, METER BRACKET
  • 92077
    92077-1087 KNOB, TRIP RESET
    KNOB, TRIP RESET
  • 92077A
    92077-1094 KNOB, TRIP RESET
    KNOB, TRIP RESET
  • 92093
    92093-1373 SEAL
    SEAL
