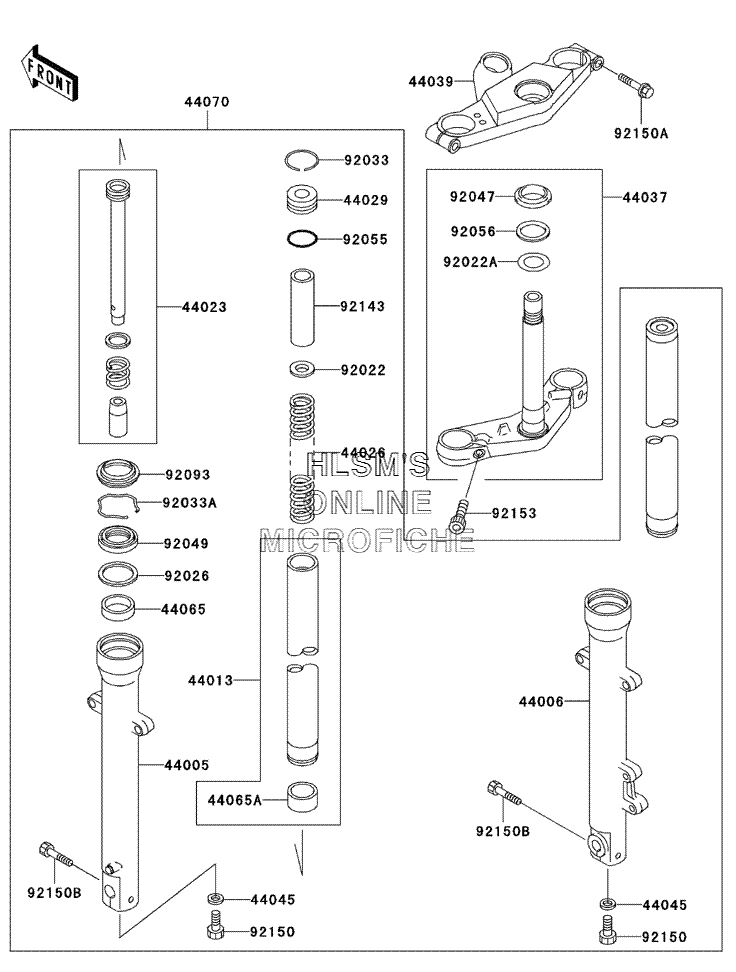

FRONT FORK для Kawasaki NINJA 500R - 2003 года выпуска

  • №
    Артикул
    Название
  • 44005
    44005-1330 PIPE, LEFT FORK OUTER
    PIPE, LEFT FORK OUTER
  • 44006
    44006-1330 PIPE, RIGHT FORK OUTER
    PIPE, RIGHT FORK OUTER
  • 44013
    44013-1394 PIPE, FORK INNER
    PIPE, FORK INNER
  • 44023
    44023-1092 CYLINDER, COMP, FORK
    CYLINDER, COMP, FORK
  • 44026
    44026-1555 SPRING, FRONT FORK
    SPRING, FRONT FORK
  • 44029
    44029-1127 SEAT, FORK SPRING
    SEAT, FORK SPRING
  • 44037
    44037-1319 HOLDER, FORK UNDER
    HOLDER, FORK UNDER
  • 44039
    44039-1246-10 HOLDER, FORK UPPER (BLACK)
    HOLDER, FORK UPPER (BLACK)
  • 44045
    44045-051 GASKET, FORK CYLINDER BOLT
    GASKET, FORK CYLINDER BOLT
  • 44065
    44065-1109 BUSHING, FRONT FORK
    BUSHING, FRONT FORK
  • 44065A
    44065-1110 BUSHING, FRONT FORK, INNER PIPE
    BUSHING, FRONT FORK, INNER PIPE
  • 44070
    44070-5174 DAMPER, ASSY, FORK
    DAMPER, ASSY, FORK
  • 92022
    92022-1879 WASHER
    WASHER
  • 92022A
    92022-231 WASHER, 30.5X50X0.6
    WASHER, 30.5X50X0.6
  • 92026
    92026-1443 SPACER, FORK
    SPACER, FORK
  • 92033
    92033-1236 RING, SNAP
    RING, SNAP
  • 92033A
    92033-1286 RING, SNAP
    RING, SNAP
  • 92047
    92047-012 RACE, STEERING STEM BEARING
    RACE, STEERING STEM BEARING
  • 92049
    92049-1421 SEAL, OIL, FORK OUTER
    SEAL, OIL, FORK OUTER
  • 92055
    92055-1384 O-RING, FORK SPRING SEAT
    O-RING, FORK SPRING SEAT
  • 92056
    92056-003 SEAL, OIL, STEERING STEM
    SEAL, OIL, STEERING STEM
  • 92093
    92093-1367 SEAL, FORK OUTER
    SEAL, FORK OUTER
  • 92143
    92143-1682 COLLAR, FORK, L=100
    COLLAR, FORK, L=100
  • 92150
    92150-1432 BOLT, SOCKET, 8X18
    BOLT, SOCKET, 8X18
  • 92150A
    92150-1610 BOLT
    BOLT
  • 92150B
    92150-1613 BOLT, SOCKET, 8MM
    BOLT, SOCKET, 8MM
  • 92153
    92153-0301 BOLT, SOCKET, 10X25
    BOLT, SOCKET, 10X25
