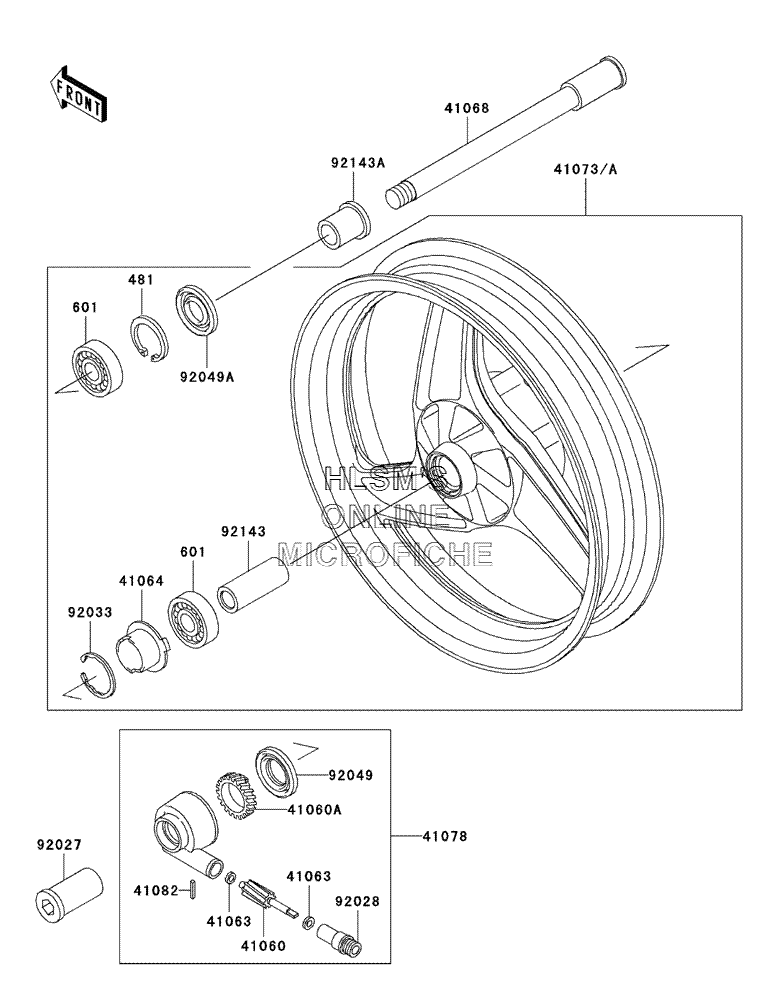

WHEEL - FRONT для Kawasaki NINJA 500R - 2003 года выпуска

  • №
    Артикул
    Название
  • 481
    481J3500 CIRCLIP, TYPE, C, 35MM
    CIRCLIP, TYPE, C, 35MM
  • 601
    601B6202UU BEARING, BALL
    BEARING, BALL
  • 41060
    41060-1123 GEAR, METER SCREW (9 TEETH)
    GEAR, METER SCREW (9 TEETH)
  • 41060A
    41060-1124 GEAR, METER SCREW (23 TEETH)
    GEAR, METER SCREW (23 TEETH)
  • 41063
    41063-001 WASHER, 5.1X9X0.4
    WASHER, 5.1X9X0.4
  • 41064
    41064-1006 RECEIVER, SPEEDOMETER
    RECEIVER, SPEEDOMETER
  • 41068
    41068-1175 AXLE, FRONT
    AXLE, FRONT
  • 41073
    41073-1543-GE WHEEL, ASSY, FRONT (G.GRAY)
    WHEEL, ASSY, FRONT (G.GRAY)
  • 41078
    41078-1068 CASE, ASSY, METER GEAR
    CASE, ASSY, METER GEAR
  • 41082
    41082-001 PIN, SPRING
    PIN, SPRING
  • 92027
    92027-1726 COLLAR, FRONT AXLE, L=36.5
    COLLAR, FRONT AXLE, L=36.5
  • 92028
    92028-1066 BUSHING, SPEEDOMETER
    BUSHING, SPEEDOMETER
  • 92033
    92033-1041 RING, SNAP, 42MM
    RING, SNAP, 42MM
  • 92049
    92049-1057 SEAL, OIL, BJN30427, C3
    SEAL, OIL, BJN30427, C3
  • 92049A
    92049-1176 SEAL, OIL, MH20354.5
    SEAL, OIL, MH20354.5
  • 92143
    92143-1185 COLLAR, 15.1X20X70
    COLLAR, 15.1X20X70
  • 92143A
    92143-1187 COLLAR, FRONT AXLE, L=24
    COLLAR, FRONT AXLE, L=24
