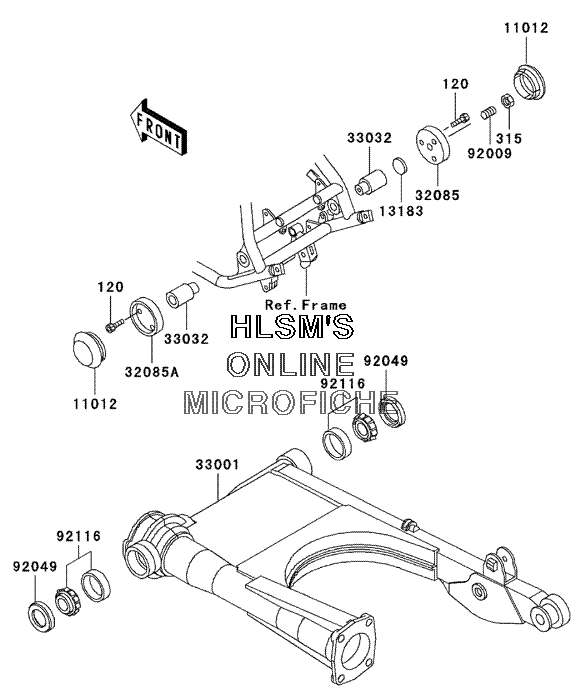

SUSPENSION - SWINGARM для Kawasaki Voyager XII - 2002 года выпуска

  • №
    Артикул
    Название
  • 120
    120S0612 BOLT, SOCKET
    BOLT, SOCKET
  • 315
    315C1200 NUT, HEX, FINE
    NUT, HEX, FINE
  • 11012
    11012-1433 CAP, SWING ARM
    CAP, SWING ARM
  • 13183
    13183-1004 PLATE, 25X4.5
    PLATE, 25X4.5
  • 32085
    32085-1227 STOPPER, SWING ARM SHAFT (RIGHT)
    STOPPER, SWING ARM SHAFT (RIGHT)
  • 32085A
    32085-1228 STOPPER, SWING ARM SHAFT (LEFT)
    STOPPER, SWING ARM SHAFT (LEFT)
  • 33001
    33001-1304 ARM, COMP, SWING
    ARM, COMP, SWING
  • 33032
    33032-1120 SHAFT, SWING ARM
    SHAFT, SWING ARM
  • 92009
    92009-1374 SCREW, SOCKET, 12X22
    SCREW, SOCKET, 12X22
  • 92049
    92049-1030 SEAL, OIL, 26406
    SEAL, OIL, 26406
  • 92116
    92116-1001 BEARING, ROLLER, 4T30203E1
    BEARING, ROLLER, 4T30203E1
