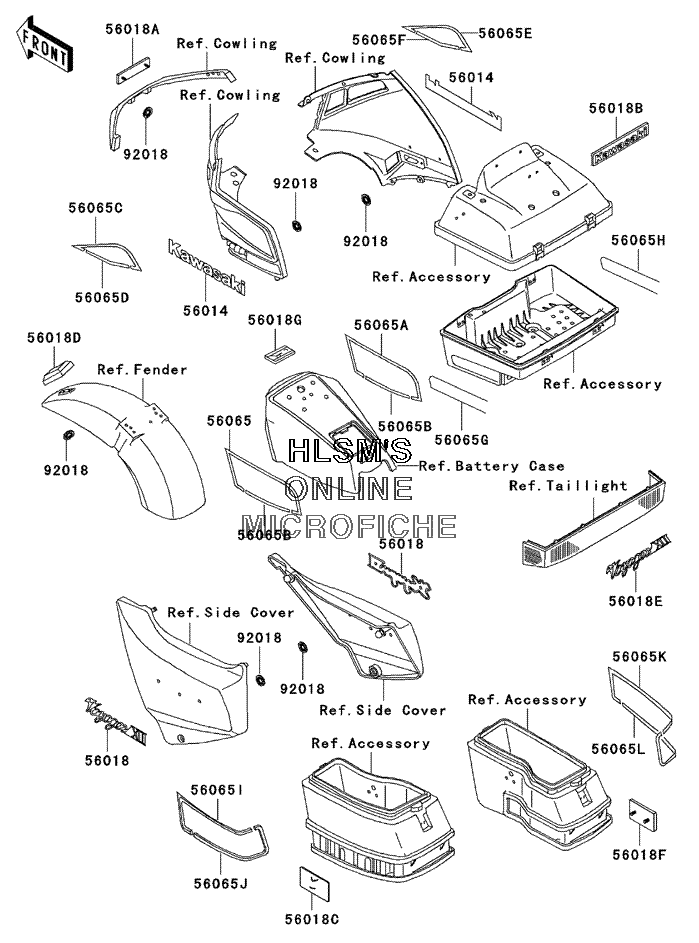

DECALS для Kawasaki Voyager XII - 2002 года выпуска
-
№АртикулНазвание
-
5601456014-1133 EMBLEM, COWLING, KAWASAKIEMBLEM, COWLING, KAWASAKI
-
5601856018-1857 MARK, SIDE COVERMARK, SIDE COVER
-
56018A56018-1858 MARK, WINDSHIELD COVER, KAWASAKIMARK, WINDSHIELD COVER, KAWASAKI
-
56018B56018-1859 MARK, TRUNK COVER, KAWASAKIMARK, TRUNK COVER, KAWASAKI
-
56018C56018-1860 MARK, SIDE BAG (LEFT)MARK, SIDE BAG (LEFT)
-
56018D56018-1861 MARK, FRONT FENDERMARK, FRONT FENDER
-
56018E56018-1862 MARK, TAIL LAMPMARK, TAIL LAMP
-
56018F56018-1882 MARK, SIDE BAG (RIGHT)MARK, SIDE BAG (RIGHT)
-
56018G56018-1982 MARK, CRUISE CONTROL SWITCHMARK, CRUISE CONTROL SWITCH
-
5606556065-1128 PATTERN, TANK COVER (LEFT) TOPPATTERN, TANK COVER (LEFT) TOP
-
56065A56065-1129 PATTERN, TANK COVER (RIGHT) TOPPATTERN, TANK COVER (RIGHT) TOP
-
56065B56065-1130 PATTERN, TANK COVER, LEFT AND RIGHT, BOTTOMPATTERN, TANK COVER, LEFT AND RIGHT, BOTTOM
-
56065C56065-1131 PATTERN, UPPER COWLING, UPPER (LEFT)PATTERN, UPPER COWLING, UPPER (LEFT)
-
56065D56065-1132 PATTERN, UPPER COWLING, LOWER (LEFT)PATTERN, UPPER COWLING, LOWER (LEFT)
-
56065E56065-1133 PATTERN, UPPER COWLING, UPPER (RIGHT)PATTERN, UPPER COWLING, UPPER (RIGHT)
-
56065F56065-1134 PATTERN, UPPER COWLING, LOWER (RIGHT)PATTERN, UPPER COWLING, LOWER (RIGHT)
-
56065G56065-1135 PATTERN, CENTER BAG BODY (LEFT)PATTERN, CENTER BAG BODY (LEFT)
-
56065H56065-1136 PATTERN, CENTER BAG BODY (RIGHT)PATTERN, CENTER BAG BODY (RIGHT)
-
56065I56065-1137 PATTERN, SIDE BAG BODY, UPPER (LEFT)PATTERN, SIDE BAG BODY, UPPER (LEFT)
-
56065J56065-1138 PATTERN, SIDE BAG BODY, LOWER (LEFT)PATTERN, SIDE BAG BODY, LOWER (LEFT)
-
56065K56065-1139 PATTERN, SIDE BAG BODY, UPPER (RIGHT)PATTERN, SIDE BAG BODY, UPPER (RIGHT)
-
56065L56065-1140 PATTERN, SIDE BAG BODY, LOWER (RIGHT)PATTERN, SIDE BAG BODY, LOWER (RIGHT)
-
9201892018-005 NUT, PUSH, 3MMNUT, PUSH, 3MM
Все узлы модели:
- AIR CLEANER
- AUDIO/SPEAKERS
- BALANCER SHAFT
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER - FRONT
- BRAKE - MASTER CYLINDER - REAR
- BRAKE - REAR
- BRAKE PEDAL W/ TORQUE LINK
- BREATHER COVER W/ OIL PAN
- CABLES
- CAMSHAFT(S) W/ TENSIONER
- CARBURETOR
- CARBURETOR PARTS
- CHASSIS ELECTRICAL EQUIPMENT
- CLUTCH
- CLUTCH MASTER CYLINDER
- COWLING
- COWLING - LOWERS
- CRANKCASE
- CRANKCASE BOLT PATTERN
- CRANKSHAFT
- CRUISE CONTROL
- CRUISE CONTROL - CONTROL UNIT
- CYLINDER HEAD
- CYLINDER HEAD COVER
- CYLINDER/PISTON(S)
- • DECALS
- DRIVE SHAFT/FINAL GEAR
- ENGINE COVER
- ENGINE MOUNT
- FENDER(S)
- FOOTRESTS
- FRAME
- FRAME FITTINGS
- FRONT BEVEL GEAR
- FRONT FORK
- FUEL EVAPORATIVE SYSTEM
- FUEL PUMP
- FUEL TANK
- GEAR CHANGE DRUM W/ SHIFT FORK(S)
- GEAR CHANGE MECHANISM
- GENERATOR
- HANDLEBAR
- HEADLIGHT(S)
- IGNITION SWITCH W/ LOCKS AND REFLECTORS
- IGNITION SYSTEM
- LABELS
- METER(S)
- MUFFLER(S)
- OIL PUMP/OIL FILTER
- OWNERS TOOLS
- RADIATOR
- SADDLEBAGS (SIDE BAG)
- SEAT
- SECONDARY SHAFT
- SIDE COVERS
- STAND(S)
- STARTER MOTOR
- SUSPENSION - SHOCK ABSORBER
- SUSPENSION - SWINGARM
- TAILLIGHT(S)
- TIRES
- TRANSMISSION
- TRUNK
- TRUNK BRACKET
- TURN SIGNALS
- VALVE(S)
- WATER PUMP
- WHEEL - FRONT
- WHEEL - REAR W/ CHAIN
