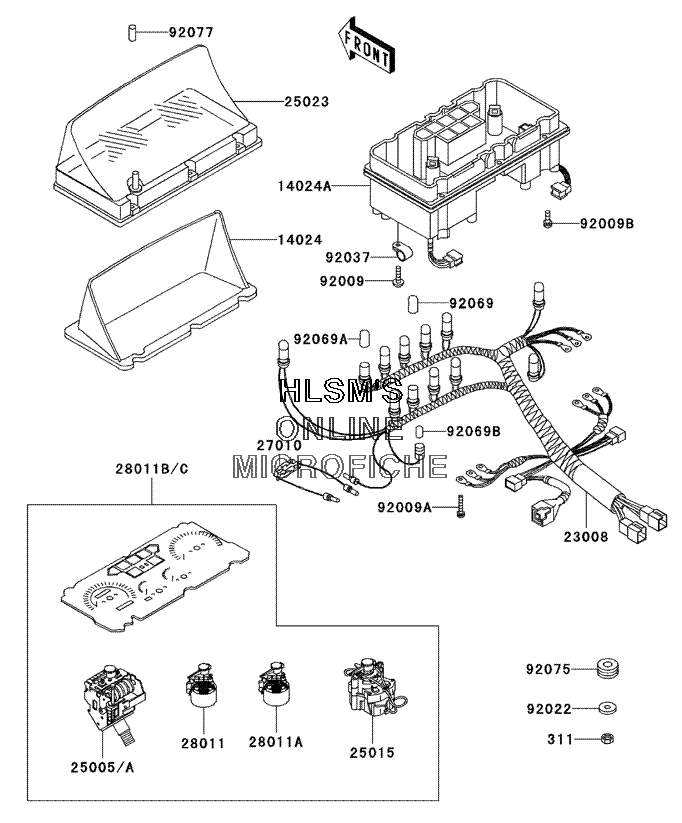

METER(S) для Kawasaki Voyager XII - 2002 года выпуска

  • №
    Артикул
    Название
  • 311
    311B0500 NUT, HEX
    NUT, HEX
  • 14024
    14024-1179 COVER, METER, UPPER
    COVER, METER, UPPER
  • 14024A
    14024-1180 COVER, METER, LOWER
    COVER, METER, LOWER
  • 23008
    23008-1344 SOCKET, ASSY., METER
    SOCKET, ASSY., METER
  • 25005
    25005-1638 SPEEDOMETER, MPH (US ONLY)
    SPEEDOMETER, MPH (US ONLY)
  • 25005A
    25005-1639 SPEEDOMETER, KPH (CANADA ONLY)
    SPEEDOMETER, KPH (CANADA ONLY)
  • 25015
    25015-1255 TACHOMETER, X1000R/MIN
    TACHOMETER, X1000R/MIN
  • 25023
    25023-1133 COVER, METER CASE, UPPER
    COVER, METER CASE, UPPER
  • 27010
    27010-1231 SWITCH, METER
    SWITCH, METER
  • 28011
    28011-1079 METER, FUEL
    METER, FUEL
  • 28011A
    28011-1082 METER, TEMP
    METER, TEMP
  • 28011B
    28011-1171 METER, FACE PLATE (MPH) (US ONLY)
    METER, FACE PLATE (MPH) (US ONLY)
  • 28011C
    28011-1172 METER, FACE PLATE (KPH) (CANADA ONLY)
    METER, FACE PLATE (KPH) (CANADA ONLY)
  • 92009
    92009-1163 SCREW, TAPPING, 4X16
    SCREW, TAPPING, 4X16
  • 92009A
    92009-1293 SCREW, 3X22
    SCREW, 3X22
  • 92009B
    92009-1382 SCREW, 3X10
    SCREW, 3X10
  • 92022
    92022-263 WASHER, 5.2X16X1.2
    WASHER, 5.2X16X1.2
  • 92037
    92037-1769 CLAMP, CODE
    CLAMP, CODE
  • 92069
    92069-1007 BULB, 12V 3.4W, T10
    BULB, 12V 3.4W, T10
  • 92069A
    92069-1020 BULB, 12V 3W, T7
    BULB, 12V 3W, T7
  • 92069B
    92069-1059 BULB, 12V 1.7W, T10
    BULB, 12V 1.7W, T10
  • 92075
    92075-1805 DAMPER
    DAMPER
  • 92077
    92077-1017 KNOB, RESET TRIP
    KNOB, RESET TRIP
