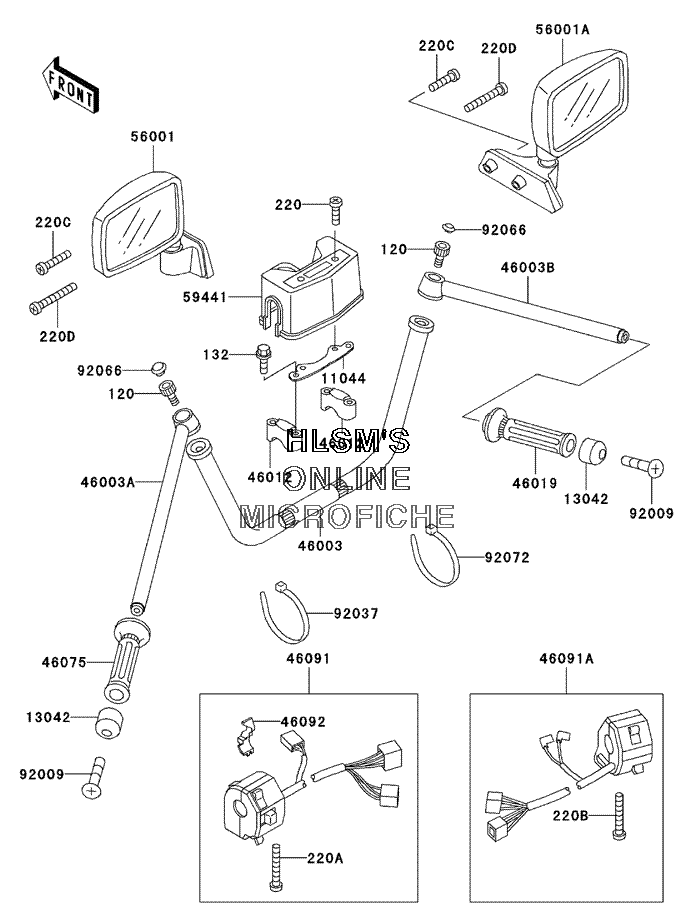

HANDLEBAR для Kawasaki Voyager XII - 2002 года выпуска

  • №
    Артикул
    Название
  • 120
    120T1025 BOLT, SOCKET
    BOLT, SOCKET
  • 132
    132G0840 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 220
    220C0416 SCREW, PAN, CROS
    SCREW, PAN, CROS
  • 220A
    220C0545 SCREW, PAN, CROS
    SCREW, PAN, CROS
  • 220B
    220C0550 SCREW, PAN, CROS, 5X50
    SCREW, PAN, CROS, 5X50
  • 220C
    220C0630 SCREW, PAN, CROS, 6X30 (BLACK)
    SCREW, PAN, CROS, 6X30 (BLACK)
  • 220D
    220C0645 SCREW, PAN, CROS, 6X45 (BLACK)
    SCREW, PAN, CROS, 6X45 (BLACK)
  • 11044
    11044-1635 BRACKET, HANDLE COVER
    BRACKET, HANDLE COVER
  • 13042
    13042-1051 WEIGHT, HANDLE
    WEIGHT, HANDLE
  • 46003
    46003-1210 HANDLE, CENTER
    HANDLE, CENTER
  • 46003A
    46003-1211 HANDLE (LEFT)
    HANDLE (LEFT)
  • 46003B
    46003-1212 HANDLE (RIGHT)
    HANDLE (RIGHT)
  • 46012
    46012-1151 HOLDER, HANDLE, UPPER
    HOLDER, HANDLE, UPPER
  • 46019
    46019-1064 GRIP, ASSY., THROTTLE
    GRIP, ASSY., THROTTLE
  • 46075
    46075-1068 GRIP (LEFT)
    GRIP (LEFT)
  • 46091
    46091-1385 HOUSING, ASSY., CONTROL (LEFT)
    HOUSING, ASSY., CONTROL (LEFT)
  • 46091A
    46091-1452 HOUSING, ASSY., CONTROL (RIGHT)
    HOUSING, ASSY., CONTROL (RIGHT)
  • 46092
    46092-1124 LEVER, GRIP, CHOKE
    LEVER, GRIP, CHOKE
  • 56001
    56001-1262 MIRROR, ASSY. (LEFT)
    MIRROR, ASSY. (LEFT)
  • 56001A
    56001-1263 MIRROR, ASSY. (RIGHT)
    MIRROR, ASSY. (RIGHT)
  • 59441
    59441-1065 COVER, HANDLE
    COVER, HANDLE
  • 92009
    92009-1257 SCREW, 8X45
    SCREW, 8X45
  • 92037
    92037-1817 CLAMP, BAND, L=137
    CLAMP, BAND, L=137
  • 92066
    92066-1234 PLUG, 18.3X4.5
    PLUG, 18.3X4.5
  • 92072
    92072-1195 BAND, L=202
    BAND, L=202
