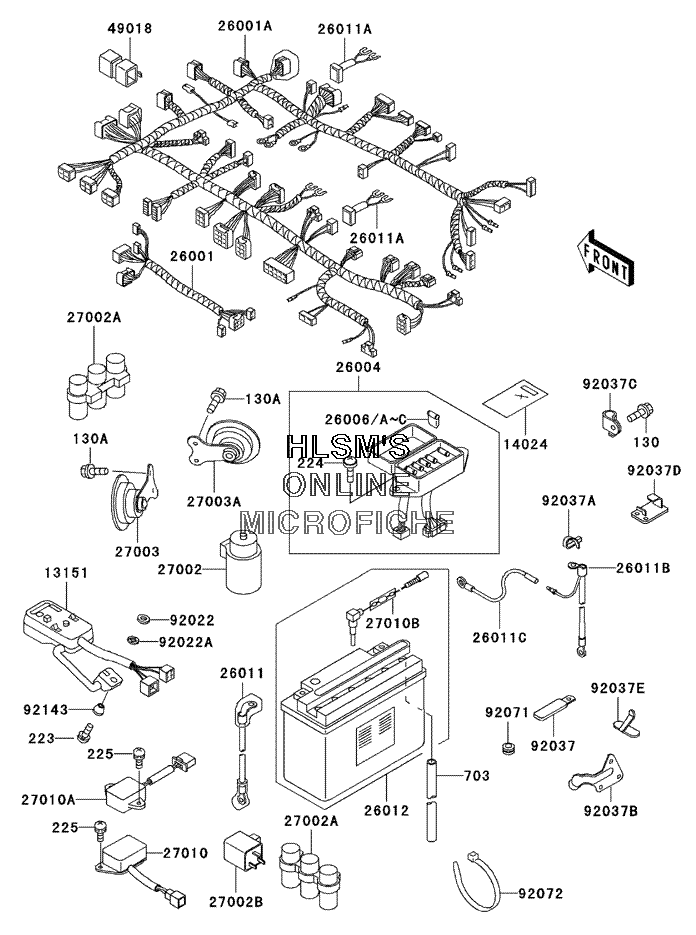

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki Voyager XII - 2002 года выпуска

  • №
    Артикул
    Название
  • 130
    130B0610 BOLT, FLANGED, 6X10
    BOLT, FLANGED, 6X10
  • 130A
    130C0612 BOLT, FLANGED, 6X12
    BOLT, FLANGED, 6X12
  • 223
    223C0620 SCREW, PAN, WS, CROS
    SCREW, PAN, WS, CROS
  • 224
    224B0614 SCREW, PAN, WP, CROS
    SCREW, PAN, WP, CROS
  • 225
    225B0620 SCREW, PAN, WSP, CROS
    SCREW, PAN, WSP, CROS
  • 703
    703A08750 TUBE, RUBBER, 8X750
    TUBE, RUBBER, 8X750
  • 13151
    13151-1063 SWITCH, COMP, AUDIO
    SWITCH, COMP, AUDIO
  • 14024
    14024-1352 COVER, HARNESS
    COVER, HARNESS
  • 26001
    26001-1863 HARNESS, RADIO
    HARNESS, RADIO
  • 26001A
    26001-1892 HARNESS, MAIN
    HARNESS, MAIN
  • 26004
    26004-1085 FUSE, ASSY.
    FUSE, ASSY.
  • 26006
    26006-1006 FUSE, 30A, G
    FUSE, 30A, G
  • 26006A
    26006-1007 FUSE, 10A, R
    FUSE, 10A, R
  • 26006B
    26006-1060 FUSE, 3A, P
    FUSE, 3A, P
  • 26006C
    26006-1061 FUSE, 15A, B
    FUSE, 15A, B
  • 26011
    26011-1339 WIRE, LEAD, BATTERY (+)
    WIRE, LEAD, BATTERY (+)
  • 26011A
    26011-1365 WIRE, LEAD, IGNITION COIL
    WIRE, LEAD, IGNITION COIL
  • 26011B
    26011-1705 WIRE, LEAD, BATTERY (-)
    WIRE, LEAD, BATTERY (-)
  • 26011C
    26011-1706 WIRE, LEAD, THERMO SENSER
    WIRE, LEAD, THERMO SENSER
  • 26012
    26012-1394 BATTERY, SY50, N18L, A, 12V 20AH
    BATTERY, SY50, N18L, A, 12V 20AH
  • 27002
    27002-1051 RELAY, ASSY.
    RELAY, ASSY.
  • 27002A
    27002-1052 RELAY, ASSY.
    RELAY, ASSY.
  • 27002B
    27002-1060 RELAY, ASSY., TURN SIGNAL
    RELAY, ASSY., TURN SIGNAL
  • 27003
    27003-1239 HORN, 350HZ (LEFT)
    HORN, 350HZ (LEFT)
  • 27003A
    27003-1240 HORN, 415HZ (RIGHT)
    HORN, 415HZ (RIGHT)
  • 27010
    27010-1069 SWITCH, RESERVE LIGHTING
    SWITCH, RESERVE LIGHTING
  • 27010A
    27010-1166 SWITCH, TURN SIGNAL OPERATION
    SWITCH, TURN SIGNAL OPERATION
  • 27010B
    27010-1256 SWITCH, BATTERY, L=180
    SWITCH, BATTERY, L=180
  • 49018
    49018-1052 DIODE
    DIODE
  • 92022
    92022-125 WASHER, 6.5X20X1.6
    WASHER, 6.5X20X1.6
  • 92022A
    92022-1828 WASHER, WAVE, 10MM
    WASHER, WAVE, 10MM
  • 92037
    92037-1069 CLAMP, WIRING HARNESS, L=60
    CLAMP, WIRING HARNESS, L=60
  • 92037A
    92037-1163 CLAMP, SPEED, L=58
    CLAMP, SPEED, L=58
  • 92037B
    92037-1720 CLAMP
    CLAMP
  • 92037C
    92037-1727 CLAMP, HOSE
    CLAMP, HOSE
  • 92037D
    92037-1816 CLAMP, HARNESS
    CLAMP, HARNESS
  • 92037E
    92037-1820 CLAMP, HARNESS
    CLAMP, HARNESS
  • 92071
    92071-024 GROMMET
    GROMMET
  • 92072
    92072-1195 BAND, L=202
    BAND, L=202
  • 92143
    92143-1026 COLLAR
    COLLAR
