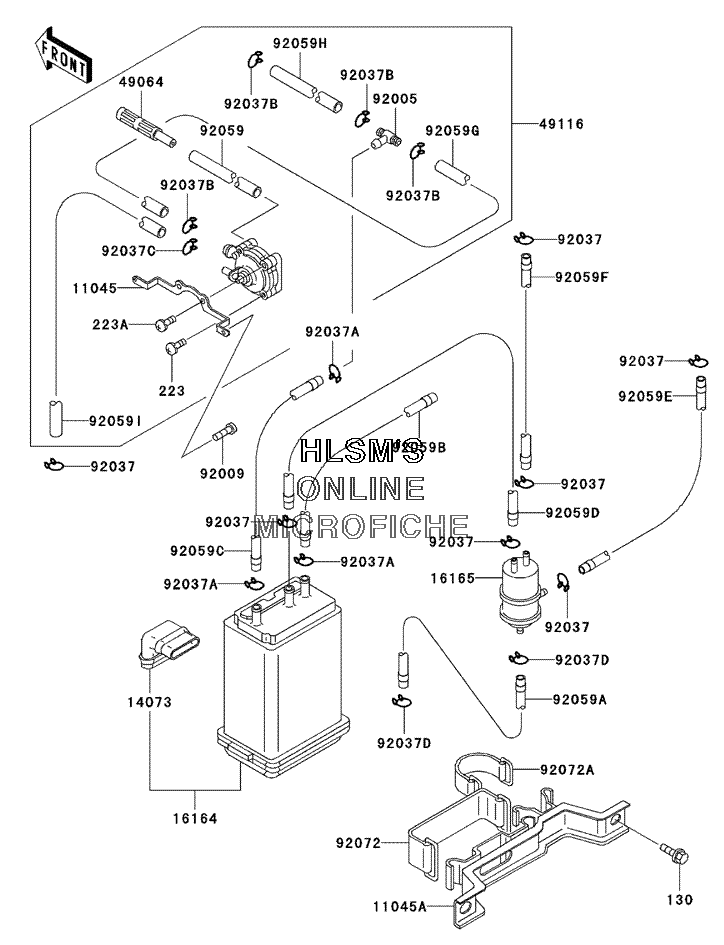

FUEL EVAPORATIVE SYSTEM для Kawasaki Voyager XII - 2002 года выпуска

  • №
    Артикул
    Название
  • 11045
    11045-1278 BRACKET, VALVE (CALIF. ONLY)
    BRACKET, VALVE (CALIF. ONLY)
  • 11045A
    11045-1819 BRACKET, CANISTER (CALIF. ONLY)
    BRACKET, CANISTER (CALIF. ONLY)
  • 14073
    14073-1178 DUCT, CANISTER (CALIF. ONLY)
    DUCT, CANISTER (CALIF. ONLY)
  • 16164
    16164-1066 CANISTER (CALIF. ONLY)
    CANISTER (CALIF. ONLY)
  • 16165
    16165-1001 SEPARATOR (CALIF. ONLY)
    SEPARATOR (CALIF. ONLY)
  • 49064
    49064-1051 FILTER, AIR, VALVE (CALIF. ONLY)
    FILTER, AIR, VALVE (CALIF. ONLY)
  • 49116
    49116-1066 VALVE, ASSY. (CALIF. ONLY)
    VALVE, ASSY. (CALIF. ONLY)
  • 92005
    92005-1119 FITTING, T, TYPE (CALIF. ONLY)
    FITTING, T, TYPE (CALIF. ONLY)
  • 92009
    92009-1264 SCREW, TAPPING, 5X16 (CALIF. ONLY)
    SCREW, TAPPING, 5X16 (CALIF. ONLY)
  • 92037
    92037-010 CLAMP, TUBE (CALIF. ONLY)
    CLAMP, TUBE (CALIF. ONLY)
  • 92037A
    92037-1104 CLAMP, HOSE (CALIF. ONLY)
    CLAMP, HOSE (CALIF. ONLY)
  • 92037B
    92037-1194 CLAMP, TUBE (CALIF. ONLY)
    CLAMP, TUBE (CALIF. ONLY)
  • 92037C
    92037-1396 CLAMP, TUBE (CALIF. ONLY)
    CLAMP, TUBE (CALIF. ONLY)
  • 92037D
    92037-1712 CLAMP (CALIF. ONLY)
    CLAMP (CALIF. ONLY)
  • 92059
    92059-1635 TUBE, 7X11X240 (CALIF. ONLY)
    TUBE, 7X11X240 (CALIF. ONLY)
  • 92059A
    92059-1678 TUBE, 4X9X730 (WHITE) (CALIF. ONLY)
    TUBE, 4X9X730 (WHITE) (CALIF. ONLY)
  • 92059B
    92059-1679 TUBE, 7X12X760 (GREEN) (CALIF. ONLY)
    TUBE, 7X12X760 (GREEN) (CALIF. ONLY)
  • 92059C
    92059-1680 TUBE, 7X12X350 (YELLOW) (CALIF. ONLY)
    TUBE, 7X12X350 (YELLOW) (CALIF. ONLY)
  • 92059D
    92059-1681 TUBE, 5X8X140 (BLUE) (CALIF. ONLY)
    TUBE, 5X8X140 (BLUE) (CALIF. ONLY)
  • 92059E
    92059-1682 TUBE, 5X8X540 (RED) (CALIF. ONLY)
    TUBE, 5X8X540 (RED) (CALIF. ONLY)
  • 92059F
    92059-1683 TUBE, 5X8X430 (BLUE) (CALIF. ONLY)
    TUBE, 5X8X430 (BLUE) (CALIF. ONLY)
  • 92059G
    92059-1737 TUBE, 7X11X180 (CALIF. ONLY)
    TUBE, 7X11X180 (CALIF. ONLY)
  • 130
    130B0610 BOLT, FLANGED, 6X10 (CALIF. ONLY)
    BOLT, FLANGED, 6X10 (CALIF. ONLY)
  • 223
    223C0416 SCREW, PAN, WS, CROS (CALIF. ONLY)
    SCREW, PAN, WS, CROS (CALIF. ONLY)
  • 223A
    223C0418 SCREW, PAN, WS, CROS (CALIF. ONLY)
    SCREW, PAN, WS, CROS (CALIF. ONLY)
  • 92059H
    92059-1738 TUBE, 7X11X45 (CALIF. ONLY)
    TUBE, 7X11X45 (CALIF. ONLY)
  • 92059I
    92059-1739 TUBE, 3.5X7.5X300 (CALIF. ONLY)
    TUBE, 3.5X7.5X300 (CALIF. ONLY)
  • 92072
    92072-006 BAND, L=142.1 (CALIF. ONLY)
    BAND, L=142.1 (CALIF. ONLY)
  • 92072A
    92072-1419 BAND, L=50 (CALIF. ONLY)
    BAND, L=50 (CALIF. ONLY)
