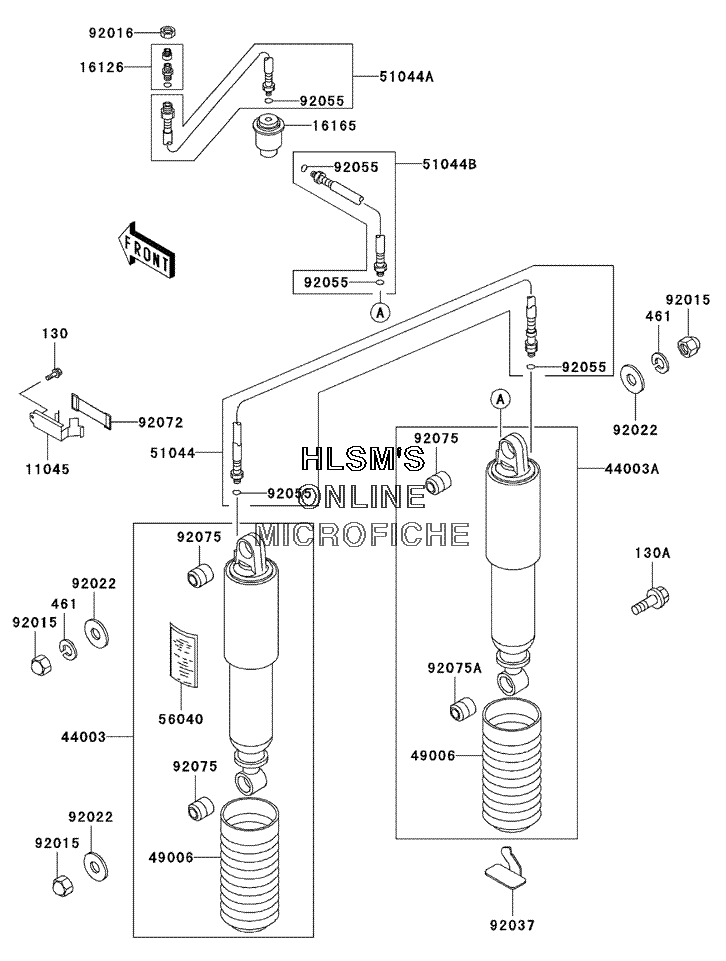

SUSPENSION - SHOCK ABSORBER для Kawasaki Voyager XII - 2002 года выпуска

  • №
    Артикул
    Название
  • 130
    130B0610 BOLT, FLANGED, 6X10
    BOLT, FLANGED, 6X10
  • 130A
    130J1035 BOLT, FLANGED, 10X35
    BOLT, FLANGED, 10X35
  • 461
    461K1000 WASHER, SPRING, 10MM (BLACK)
    WASHER, SPRING, 10MM (BLACK)
  • 11045
    11045-1245 BRACKET, SEPARATOR
    BRACKET, SEPARATOR
  • 16126
    16126-1029 VALVE, AIR
    VALVE, AIR
  • 16165
    16165-1056 SEPARATOR
    SEPARATOR
  • 44003
    44003-1682 DAMPER, ASSY., SHOCKABSORBER (LEFT)
    DAMPER, ASSY., SHOCKABSORBER (LEFT)
  • 44003A
    44003-1683 DAMPER, ASSY., SHOCKABSORBER (RIGHT)
    DAMPER, ASSY., SHOCKABSORBER (RIGHT)
  • 49006
    49006-1092 BOOT, SHOCKABSORBER (BLACK)
    BOOT, SHOCKABSORBER (BLACK)
  • 51044
    51044-1079 TUBE, ASSY., SHOCKABSORBER
    TUBE, ASSY., SHOCKABSORBER
  • 51044A
    51044-1080 TUBE, ASSY., SHOCKABSORBER
    TUBE, ASSY., SHOCKABSORBER
  • 51044B
    51044-1081 TUBE, ASSY., SHOCKABSORBER
    TUBE, ASSY., SHOCKABSORBER
  • 56040
    56040-1030 LABEL, WARNING
    LABEL, WARNING
  • 92015
    92015-1203 NUT, CAP, 10MM (BLACK)
    NUT, CAP, 10MM (BLACK)
  • 92016
    92016-044 NUT, 14MM
    NUT, 14MM
  • 92022
    92022-1302 WASHER, 10.5X30X2.3 (BLACK)
    WASHER, 10.5X30X2.3 (BLACK)
  • 92037
    92037-1820 CLAMP, HARNESS
    CLAMP, HARNESS
  • 92055
    92055-1100 O-RING, FORK
    O-RING, FORK
  • 92072
    92072-1419 BAND, L=50
    BAND, L=50
  • 92075
    92075-1141 DAMPER, SHOCKABSORBER
    DAMPER, SHOCKABSORBER
  • 92075A
    92075-1586 DAMPER, SHOCKABSORBER
    DAMPER, SHOCKABSORBER
