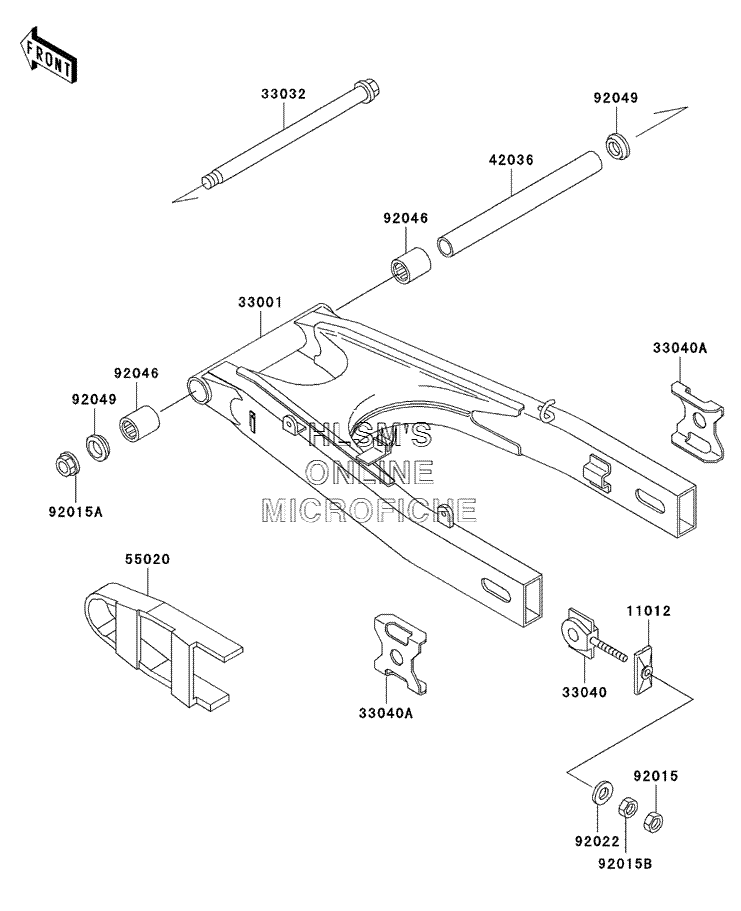

SUSPENSION - SWINGARM для Kawasaki NINJA 500R - 2002 года выпуска`
-
№АртикулНазвание
-
1101211012-1871-10 CAP, CHAIN ADJUSTER (BLACK)CAP, CHAIN ADJUSTER (BLACK)
-
3300133001-1444-10 ARM, COMP, SWING (BLACK)ARM, COMP, SWING (BLACK)
-
3303233032-1109 SHAFT, SWING ARMSHAFT, SWING ARM
-
3304033040-1116 ADJUSTER, CHAIN, INNERADJUSTER, CHAIN, INNER
-
33040A33040-1137-10 ADJUSTER, CHAIN, OUTER (BLACK)ADJUSTER, CHAIN, OUTER (BLACK)
-
4203642036-1212 SLEEVE, 14.1X22X220SLEEVE, 14.1X22X220
-
5502055020-1500 GUARD, CHAINGUARD, CHAIN
-
9201592015-1364 NUT, 8MMNUT, 8MM
-
92015A92015-1407 NUT, 14MMNUT, 14MM
-
92015B92015-1658 NUT, 8MMNUT, 8MM
-
9202292022-1582 WASHER, 8.5X16X1.2WASHER, 8.5X16X1.2
-
9204692046-1162 BEARING, NEEDLE, F, 2220BEARING, NEEDLE, F, 2220
-
9204992049-1254 SEAL, OIL, MHA22 28 5.7FSEAL, OIL, MHA22 28 5.7F
