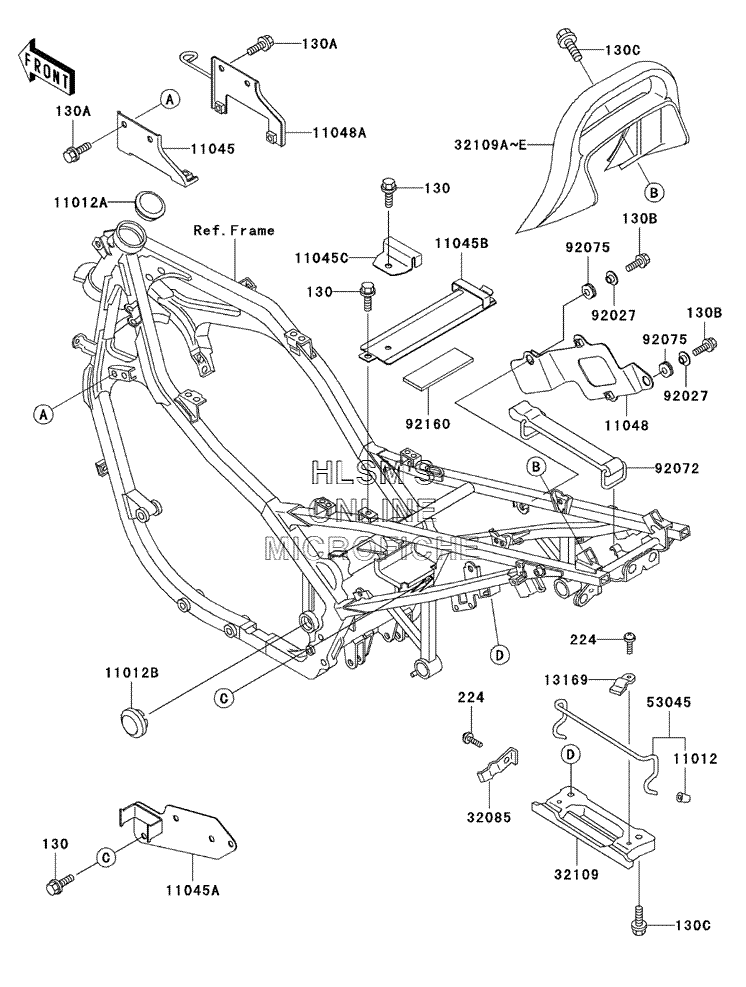

FRAME - BRACKETS для Kawasaki NINJA 500R - 2002 года выпуска

  • №
    Артикул
    Название
  • 130
    130J0608 BOLT, FLANGED, 6X8
    BOLT, FLANGED, 6X8
  • 130A
    130J0614 BOLT, FLANGED, 6X14 (BLACK)
    BOLT, FLANGED, 6X14 (BLACK)
  • 130B
    130J0616 BOLT, FLANGED, 6X16 (BLACK)
    BOLT, FLANGED, 6X16 (BLACK)
  • 130C
    130J0816 BOLT, FLANGED, 8X16 (BLACK)
    BOLT, FLANGED, 8X16 (BLACK)
  • 224
    224C0508 SCREW, PAN, WP, CROS
    SCREW, PAN, WP, CROS
  • 11012
    11012-1589 CAP, BUNGEE CORD HOOK
    CAP, BUNGEE CORD HOOK
  • 11012A
    11012-1688 CAP, SWING ARM
    CAP, SWING ARM
  • 11012B
    11012-1717-10 CAP, CROSS PIPE (BLACK)
    CAP, CROSS PIPE (BLACK)
  • 11045
    11045-1419 BRACKET, IGNITION COIL (LEFT)
    BRACKET, IGNITION COIL (LEFT)
  • 11045A
    11045-1421 BRACKET, REGULATOR
    BRACKET, REGULATOR
  • 11045B
    11045-1423 BRACKET, BATTERY BAND
    BRACKET, BATTERY BAND
  • 11045C
    11045-1424 BRACKET, JUNCTION BOX
    BRACKET, JUNCTION BOX
  • 11048
    11048-1343 BRACKET, IGNITER
    BRACKET, IGNITER
  • 11048A
    11048-1665 BRACKET, IGNITION COIL (RIGHT)
    BRACKET, IGNITION COIL (RIGHT)
  • 13169
    13169-1760 PLATE, GRIP
    PLATE, GRIP
  • 32085
    32085-1187 STOPPER, HOOK
    STOPPER, HOOK
  • 32109
    32109-1108 GRIP, FRAME
    GRIP, FRAME
  • 32109E
    32109-1245-T2 GRIP, FRAME, TAIL (P.C.GRAY)
    GRIP, FRAME, TAIL (P.C.GRAY)
  • 53045
    53045-1062 HOOK, ASSY, BUNGEE CORD
    HOOK, ASSY, BUNGEE CORD
  • 92027
    92027-1166 COLLAR
    COLLAR
  • 92072
    92072-1085 BAND
    BAND
  • 92075
    92075-051 DAMPER
    DAMPER
  • 92160
    92160-1094 DAMPER, BATTERY
    DAMPER, BATTERY
