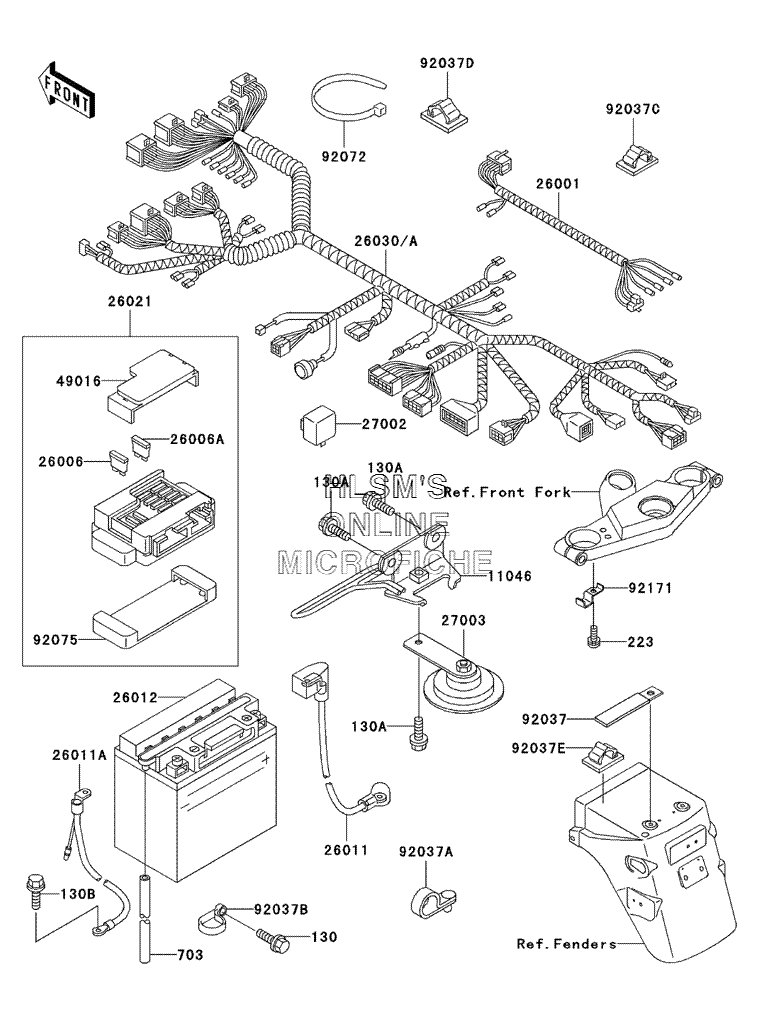

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki NINJA 500R - 2002 года выпуска

  • №
    Артикул
    Название
  • 130
    130B0610 BOLT, FLANGED, 6X10
    BOLT, FLANGED, 6X10
  • 130A
    130J0612 BOLT, FLANGED
    BOLT, FLANGED
  • 130B
    130V0610 BOLT, FLANGED, 6X10
    BOLT, FLANGED, 6X10
  • 223
    223C0610 SCREW, PAN, WS, CROS
    SCREW, PAN, WS, CROS
  • 703
    703A08530 TUBE, RUBBER, 8X12X530
    TUBE, RUBBER, 8X12X530
  • 11046
    11046-1233 BRACKET, HORN AND CABLE
    BRACKET, HORN AND CABLE
  • 26001
    26001-1859 HARNESS, FRONT SIGNAL LAMP
    HARNESS, FRONT SIGNAL LAMP
  • 26006
    26006-1067 FUSE, 30A, G
    FUSE, 30A, G
  • 26006A
    26006-1068 FUSE, 10A, R
    FUSE, 10A, R
  • 26011
    26011-1388 WIRE, LEAD, BATTERY (+)
    WIRE, LEAD, BATTERY (+)
  • 26011A
    26011-1389 WIRE, LEAD, BATTERY (-)
    WIRE, LEAD, BATTERY (-)
  • 26012
    26012-1349 BATTERY, FB14L, A2, 12V 14AH
    BATTERY, FB14L, A2, 12V 14AH
  • 26021
    26021-1089 JUNCTION BOX
    JUNCTION BOX
  • 26030A
    26030-1733 HARNESS, MAIN
    HARNESS, MAIN
  • 27002
    27002-1101 RELAY, ASSY, TURN SIGNAL
    RELAY, ASSY, TURN SIGNAL
  • 27003
    27003-1288 HORN
    HORN
  • 49016
    49016-1177 COVER, SEAL, FUSE
    COVER, SEAL, FUSE
  • 92037
    92037-1069 CLAMP, WIRING HARNESS, L=60
    CLAMP, WIRING HARNESS, L=60
  • 92037A
    92037-1163 CLAMP, SPEED, L=58
    CLAMP, SPEED, L=58
  • 92037B
    92037-1727 CLAMP, HOSE
    CLAMP, HOSE
  • 92037C
    92037-1793 CLAMP, HARNESS
    CLAMP, HARNESS
  • 92037D
    92037-1794 CLAMP, TUBE
    CLAMP, TUBE
  • 92037E
    92037-1816 CLAMP, HARNESS
    CLAMP, HARNESS
  • 92072
    92072-1195 BAND, L=202
    BAND, L=202
  • 92075
    92075-1688 DAMPER, JUNCTION BOX
    DAMPER, JUNCTION BOX
  • 92171
    92171-1199 CLAMP, HARNESS
    CLAMP, HARNESS
