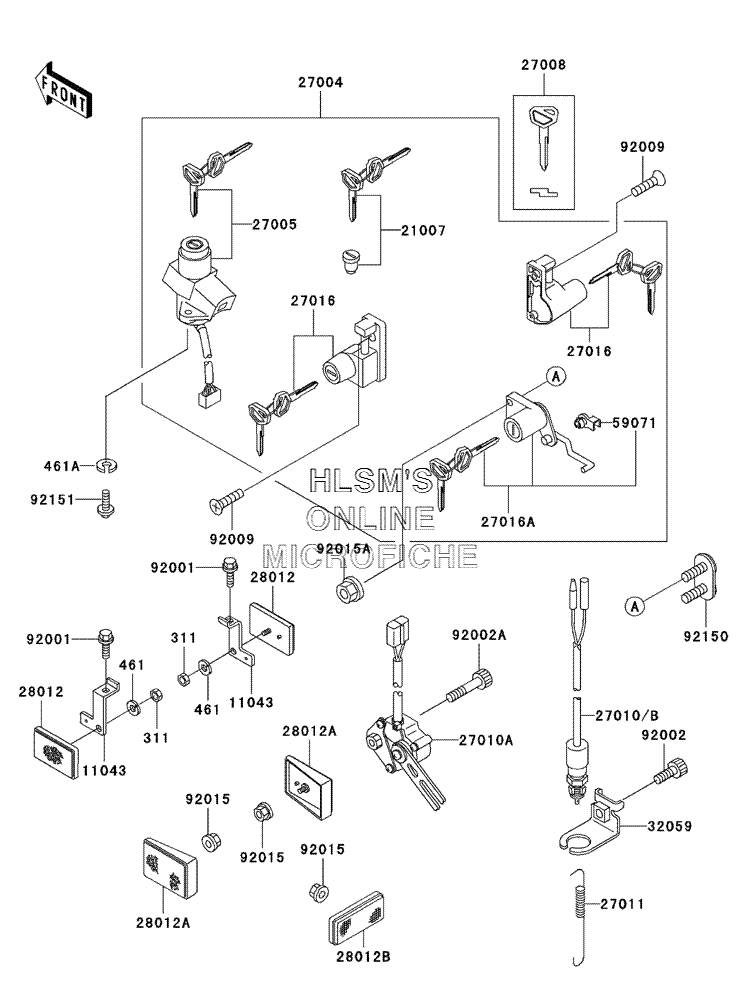

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki NINJA 500R - 2002 года выпуска`
-
№АртикулНазвание
-
311311B0500 NUT, HEXNUT, HEX
-
461461F0500 WASHER, SPRING, 5MMWASHER, SPRING, 5MM
-
461A461L0600 WASHER, SPRINGWASHER, SPRING
-
1104311043-1423 BRACKET, FRONT, REFLECTORBRACKET, FRONT, REFLECTOR
-
2100721007-5037 ROTOR, LOCK, TANK CAPROTOR, LOCK, TANK CAP
-
2700427004-5464 SWITCH, ASSYSWITCH, ASSY
-
2700527005-5101 SWITCH, ASSY, IGNITIONSWITCH, ASSY, IGNITION
-
2700827008-1173 KEY, LOCK, BLANK (OPT)KEY, LOCK, BLANK (OPT)
-
27010A27010-1394 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
27010B27010-1432 SWITCH, BRAKE LAMPSWITCH, BRAKE LAMP
-
2701127011-006 SPRING, BRAKE LAMP SWITCHSPRING, BRAKE LAMP SWITCH
-
2701627016-5211 LOCK, ASSY, HELMETLOCK, ASSY, HELMET
-
27016A27016-5217 LOCK, ASSY, SEATLOCK, ASSY, SEAT
-
2801228012-1003 REFLECTOR, REFLEXREFLECTOR, REFLEX
-
28012A28012-1056 REFLECTOR, REFLEX, REARREFLECTOR, REFLEX, REAR
-
28012B28012-1077 REFLECTOR, REFLEXREFLECTOR, REFLEX
-
3205932059-1121 BRACKET, SWITCH, REAR BRAKEBRACKET, SWITCH, REAR BRAKE
-
5907159071-1103 JOINTJOINT
-
9200192001-1847 BOLT, 6X14 (BLACK)BOLT, 6X14 (BLACK)
-
9200292002-1175 BOLT, SOCKET, 6X14BOLT, SOCKET, 6X14
-
92002A92002-1537 BOLT, 6X28BOLT, 6X28
-
9200992009-1305 SCREW, 5X18SCREW, 5X18
-
9201592015-1259 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
-
92015A92015-1328 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
-
9215092150-1820 BOLT, SEAT LOCKBOLT, SEAT LOCK
-
9215192151-1911 BOLT, TORX, 6X16BOLT, TORX, 6X16
