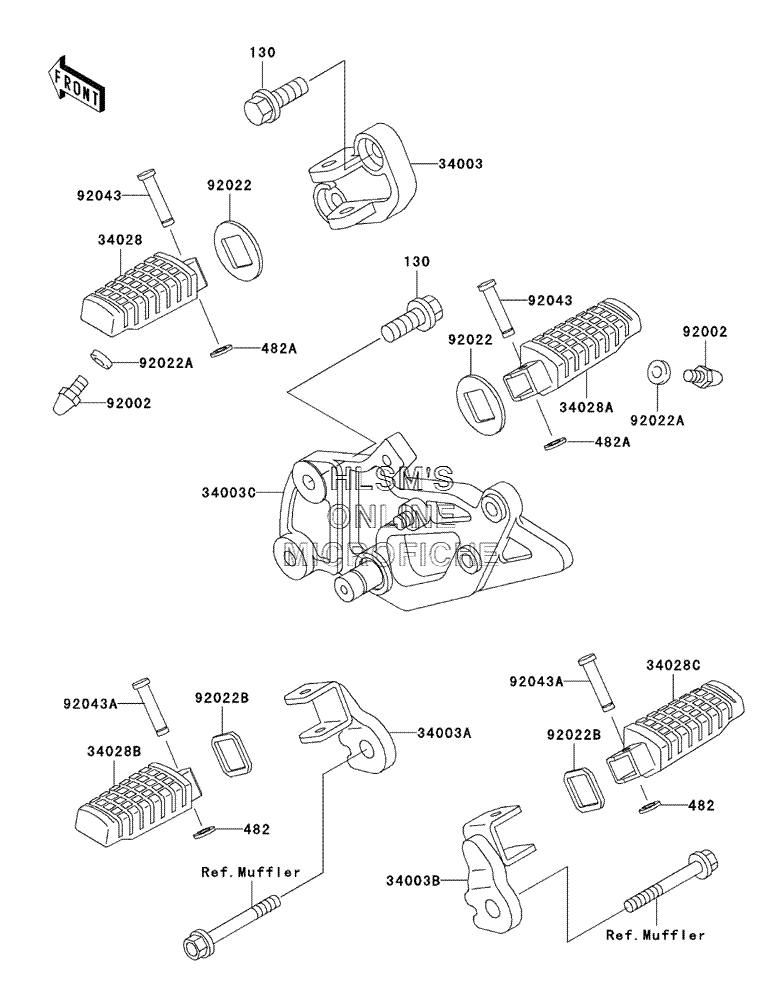

FOOTRESTS для Kawasaki NINJA 500R - 2002 года выпуска

  • №
    Артикул
    Название
  • 130
    130J0820 BOLT, FLANGED, 8X20
    BOLT, FLANGED, 8X20
  • 482
    482L5000 CIRCLIP, TYPE, E, 5MM
    CIRCLIP, TYPE, E, 5MM
  • 482A
    482L7000 CIRCLIP, TYPE, E
    CIRCLIP, TYPE, E
  • 34003
    34003-1319 HOLDER, STEP, FRONT (LEFT)
    HOLDER, STEP, FRONT (LEFT)
  • 34003A
    34003-1321 HOLDER, STEP, REAR (LEFT)
    HOLDER, STEP, REAR (LEFT)
  • 34003B
    34003-1322 HOLDER, STEP, REAR (RIGHT)
    HOLDER, STEP, REAR (RIGHT)
  • 34003C
    34003-1394 HOLDER, STEP, FRONT (RIGHT)
    HOLDER, STEP, FRONT (RIGHT)
  • 34028
    34028-1193 STEP, FRONT (LEFT)
    STEP, FRONT (LEFT)
  • 34028A
    34028-1194 STEP, FRONT (RIGHT)
    STEP, FRONT (RIGHT)
  • 34028B
    34028-1195 STEP, REAR (LEFT)
    STEP, REAR (LEFT)
  • 34028C
    34028-1196 STEP, REAR (RIGHT)
    STEP, REAR (RIGHT)
  • 92002
    92002-1995 BOLT, BANK SENSOR
    BOLT, BANK SENSOR
  • 92022
    92022-1314 WASHER, STEP FITTING
    WASHER, STEP FITTING
  • 92022A
    92022-1523 WASHER, 6.5X13X2.0
    WASHER, 6.5X13X2.0
  • 92022B
    92022-1797 WASHER, STEP FITTING
    WASHER, STEP FITTING
  • 92043
    92043-1326 PIN, 8X40.5
    PIN, 8X40.5
  • 92043A
    92043-1607 PIN, 6X30
    PIN, 6X30
