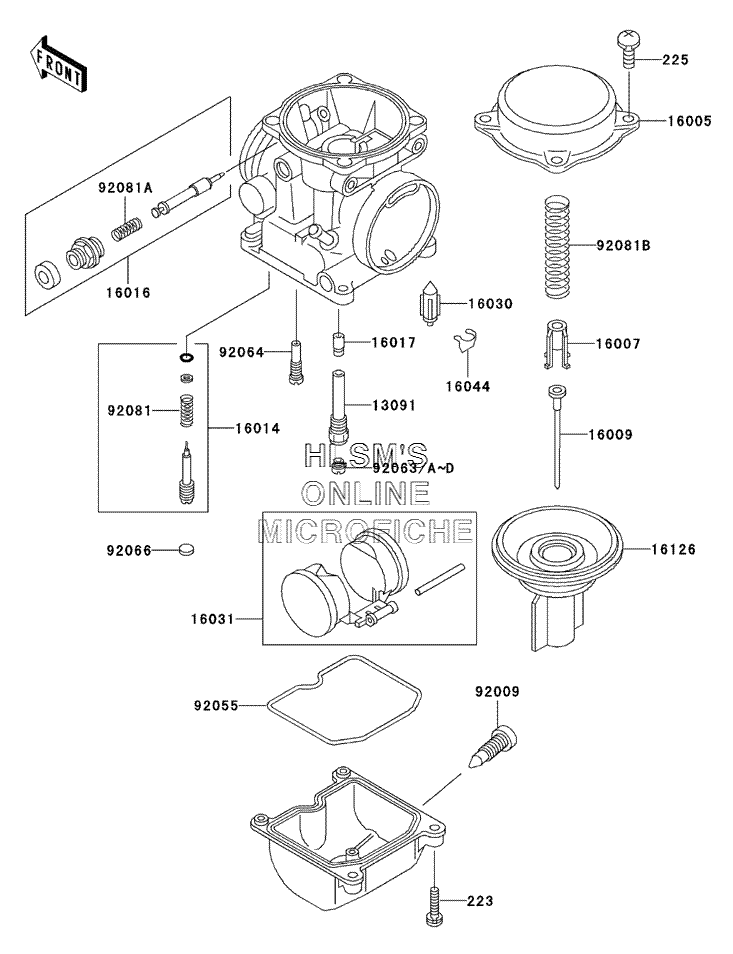

CARBURETOR PARTS для Kawasaki NINJA 500R - 2002 года выпуска

  • №
    Артикул
    Название
  • 223
    223C0416 SCREW, PAN, WS, CROS
    SCREW, PAN, WS, CROS
  • 225
    225C0418 SCREW, PAN, WSP, CROS
    SCREW, PAN, WSP, CROS
  • 13091
    13091-1406 HOLDER, NEEDLE JET
    HOLDER, NEEDLE JET
  • 16005
    16005-1057 TOP, CHAMBER, MIXING, 27/60
    TOP, CHAMBER, MIXING, 27/60
  • 16007
    16007-1117 SEAT, SPRING, VALVE
    SEAT, SPRING, VALVE
  • 16009
    16009-1342 NEEDLE, JET, N36N
    NEEDLE, JET, N36N
  • 16014
    16014-1081 SCREW, PILOT AIR
    SCREW, PILOT AIR
  • 16016
    16016-1090 PLUNGER, STARTER
    PLUNGER, STARTER
  • 16017
    16017-1059 JET, NEEDLE
    JET, NEEDLE
  • 16030
    16030-1007 VALVE, FLOAT
    VALVE, FLOAT
  • 16031
    16031-1077 FLOAT
    FLOAT
  • 16044
    16044-007 CLAMP, FLOAT VALVE
    CLAMP, FLOAT VALVE
  • 16126
    16126-1173 VALVE, VACUUM, 60PS
    VALVE, VACUUM, 60PS
  • 92009
    92009-1551 SCREW, DRAIN, M6X0.75
    SCREW, DRAIN, M6X0.75
  • 92055
    92055-1222 O-RING, FLOAT CHAMBER
    O-RING, FLOAT CHAMBER
  • 92063
    92063-1014 JET, MAIN, #135 (RACING USE ONLY)
    JET, MAIN, #135 (RACING USE ONLY)
  • 92063A
    92063-1069 JET, MAIN, #125 (RACING USE ONLY)
    JET, MAIN, #125 (RACING USE ONLY)
  • 92063B
    92063-1074 JET, MAIN, #128 (RACING USE ONLY)
    JET, MAIN, #128 (RACING USE ONLY)
  • 92063C
    92063-1075 JET, MAIN, #130
    JET, MAIN, #130
  • 92063D
    92063-1076 JET, MAIN, #132 (RACING USE ONLY)
    JET, MAIN, #132 (RACING USE ONLY)
  • 92064
    92064-1101 JET, PILOT, #35
    JET, PILOT, #35
  • 92066
    92066-1051 PLUG, PILOT AIR SCREW, 6.9X2
    PLUG, PILOT AIR SCREW, 6.9X2
  • 92081
    92081-1002 SPRING, PILOT ADJUST SCREW
    SPRING, PILOT ADJUST SCREW
  • 92081A
    92081-1761 SPRING, STARTER PLUNGER
    SPRING, STARTER PLUNGER
  • 92081B
    92081-1874 SPRING, VACUUM VALVE
    SPRING, VACUUM VALVE
