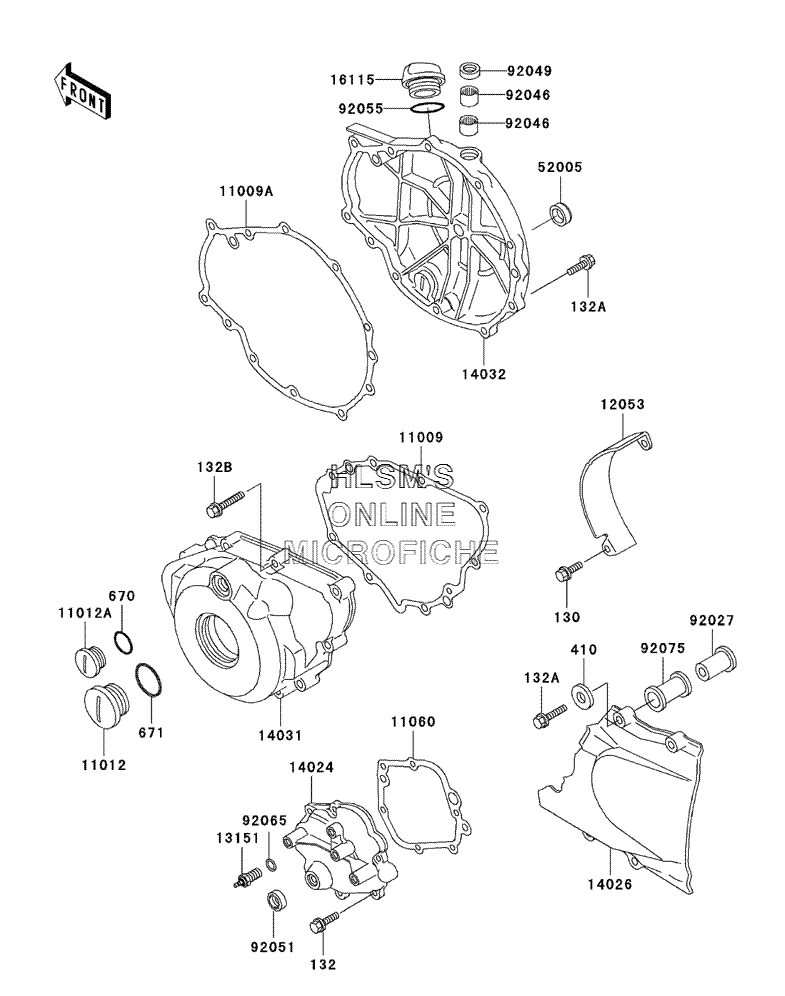

ENGINE COVER для Kawasaki NINJA 500R - 2002 года выпуска

  • №
    Артикул
    Название
  • 130
    130G0612 BOLT, FLANGED, 6X12
    BOLT, FLANGED, 6X12
  • 132
    132J0620 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 132A
    132J0625 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 132B
    132J0630 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 410
    410F0600 WASHER, PLAIN, SMALL, 6MM (BLACK)
    WASHER, PLAIN, SMALL, 6MM (BLACK)
  • 670
    670B2018 O-RING, 18MM
    O-RING, 18MM
  • 671
    671B2540 O-RING, 40MM
    O-RING, 40MM
  • 11009
    11009-1834 GASKET, GENERATOR COVER
    GASKET, GENERATOR COVER
  • 11009A
    11009-1836 GASKET, CLUTCH COVER
    GASKET, CLUTCH COVER
  • 11012
    11012-1362 CAP
    CAP
  • 11012A
    11012-1363 CAP, TOP MARK
    CAP, TOP MARK
  • 11060
    11060-1830 GASKET, CHANGE MECHANISM
    GASKET, CHANGE MECHANISM
  • 12053
    12053-1215 GUIDE, CHAIN
    GUIDE, CHAIN
  • 13151
    13151-1080 SWITCH, COMP, NEUTRAL
    SWITCH, COMP, NEUTRAL
  • 14024
    14024-1387 COVER, CHANGE MECHANISM
    COVER, CHANGE MECHANISM
  • 14026
    14026-1128 COVER, CHAIN
    COVER, CHAIN
  • 14031
    14031-1202 COVER, GENERATOR
    COVER, GENERATOR
  • 14032
    14032-1386 COVER, CLUTCH
    COVER, CLUTCH
  • 16115
    16115-1009 CAP, OIL FILLER
    CAP, OIL FILLER
  • 52005
    52005-1009 GAUGE, OIL LEVEL
    GAUGE, OIL LEVEL
  • 92027
    92027-1858 COLLAR
    COLLAR
  • 92046
    92046-1010 BEARING, NEEDLE, HK1210
    BEARING, NEEDLE, HK1210
  • 92049
    92049-1271 SEAL, OIL, TB12205.5
    SEAL, OIL, TB12205.5
  • 92051
    92051-005 SEAL, OIL, TB13225.5
    SEAL, OIL, TB13225.5
  • 92055
    92055-049 O-RING, 31.7X2.4
    O-RING, 31.7X2.4
  • 92065
    92065-058 GASKET, 10.5X16X1
    GASKET, 10.5X16X1
  • 92075
    92075-1681 DAMPER
    DAMPER
