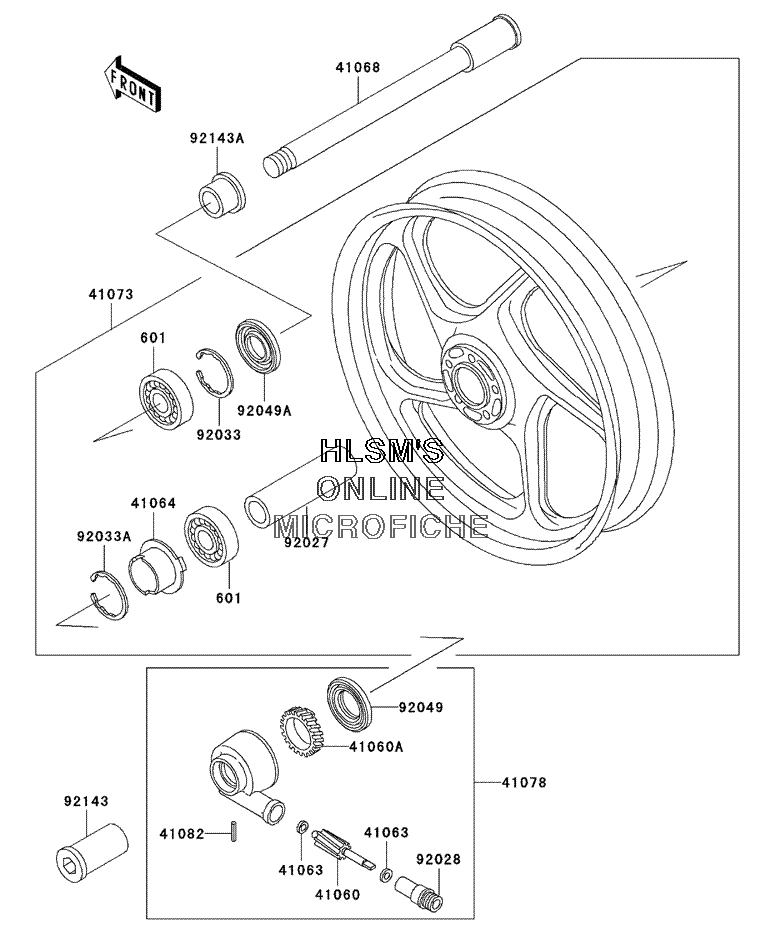

WHEEL - FRONT для Kawasaki Concours - 2001 года выпуска

  • №
    Артикул
    Название
  • 601
    601B6203UU BEARING, BALL, #6203UUC3
    BEARING, BALL, #6203UUC3
  • 41060
    41060-1123 GEAR, METER SCREW, 9T
    GEAR, METER SCREW, 9T
  • 41060A
    41060-1151 GEAR, METER SCREW (25 TEETH)
    GEAR, METER SCREW (25 TEETH)
  • 41063
    41063-001 WASHER, 5.1X9X0.4
    WASHER, 5.1X9X0.4
  • 41064
    41064-1006 RECEIVER, SPEEDOMETER
    RECEIVER, SPEEDOMETER
  • 41068
    41068-1255 AXLE, FRONT
    AXLE, FRONT
  • 41073
    41073-1545-GE WHEEL, ASSY., FRONT (G.GRAY)
    WHEEL, ASSY., FRONT (G.GRAY)
  • 41078
    41078-1101 CASE, ASSY., METER GEAR
    CASE, ASSY., METER GEAR
  • 41082
    41082-001 PIN, SPRING
    PIN, SPRING
  • 92027
    92027-1545 COLLAR, 17X25X92
    COLLAR, 17X25X92
  • 92028
    92028-1066 BUSHING, SPEEDOMETER
    BUSHING, SPEEDOMETER
  • 92033
    92033-1040 RING, SNAP, 40MM
    RING, SNAP, 40MM
  • 92033A
    92033-1041 RING, SNAP, 42MM
    RING, SNAP, 42MM
  • 92049
    92049-1057 SEAL, OIL, BJN30427, C3
    SEAL, OIL, BJN30427, C3
  • 92049A
    92049-1110 SEAL, OIL, AG1258AO
    SEAL, OIL, AG1258AO
  • 92143
    92143-1206 COLLAR, FRONT AXLE NUT, L=42.5
    COLLAR, FRONT AXLE NUT, L=42.5
  • 92143A
    92143-1578 COLLAR, FRONT AXLE, L=15
    COLLAR, FRONT AXLE, L=15
