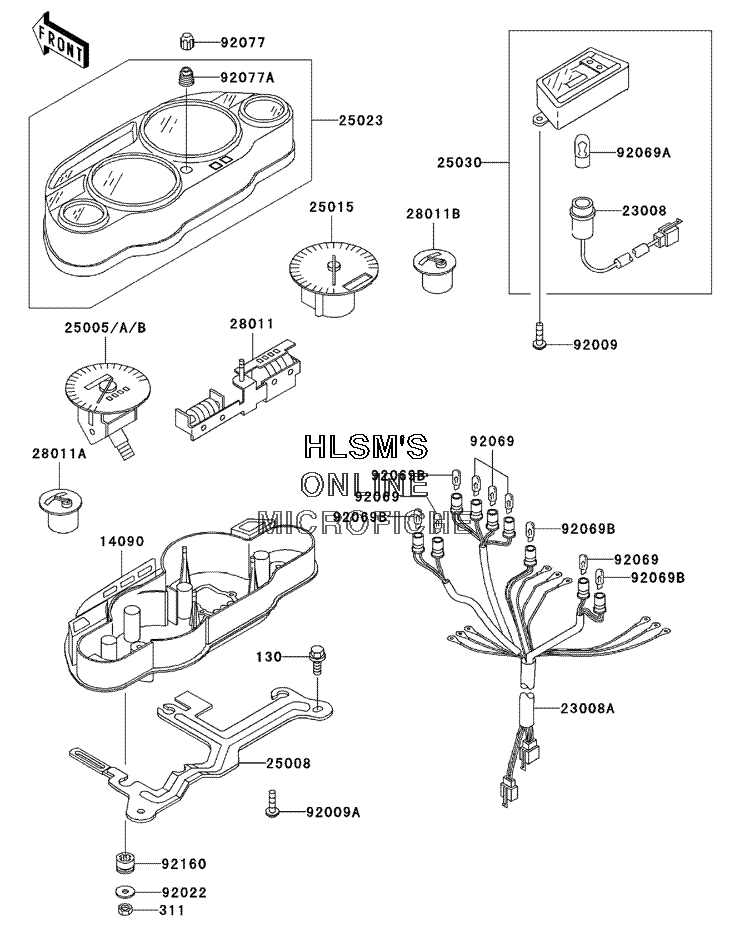

METER(S) для Kawasaki Concours - 2001 года выпуска

  • №
    Артикул
    Название
  • 130
    130J0614 BOLT, FLANGED, 6X14 (BLACK)
    BOLT, FLANGED, 6X14 (BLACK)
  • 311
    311B0600 NUT, HEX, 6MM
    NUT, HEX, 6MM
  • 14090
    14090-1287 COVER, METER HOUSING
    COVER, METER HOUSING
  • 23008
    23008-1529 SOCKET, ASSY., DIGITAL CLOCK
    SOCKET, ASSY., DIGITAL CLOCK
  • 23008A
    23008-1534 SOCKET, ASSY., METER
    SOCKET, ASSY., METER
  • 25005
    25005-1558 SPEEDOMETER, KPH (CANADA ONLY)
    SPEEDOMETER, KPH (CANADA ONLY)
  • 25005A
    25005-1559 SPEEDOMETER, MPH (US ONLY)
    SPEEDOMETER, MPH (US ONLY)
  • 25008
    25008-1199 BRACKET, METER
    BRACKET, METER
  • 25015
    25015-1329 TACHOMETER, X1000R/MIN
    TACHOMETER, X1000R/MIN
  • 25023
    25023-1201 COVER, METER CASE, UPPER
    COVER, METER CASE, UPPER
  • 25030
    25030-1002 CLOCK, DEGITAL
    CLOCK, DEGITAL
  • 28011
    28011-1130 METER, TRIP
    METER, TRIP
  • 28011A
    28011-1145 METER, FUEL
    METER, FUEL
  • 28011B
    28011-1146 METER, TEMP
    METER, TEMP
  • 92009
    92009-1163 SCREW, TAPPING, 4X16
    SCREW, TAPPING, 4X16
  • 92009A
    92009-1503 SCREW, TAPPING, 4X14
    SCREW, TAPPING, 4X14
  • 92022
    92022-1369 WASHER, 6.2X18X1.2
    WASHER, 6.2X18X1.2
  • 92069
    92069-1007 BULB, 12V 3.4W, T10
    BULB, 12V 3.4W, T10
  • 92069A
    92069-1020 BULB, 12V 3W, T7
    BULB, 12V 3W, T7
  • 92069B
    92069-1059 BULB, 12V 1.7W, T10
    BULB, 12V 1.7W, T10
  • 92077
    92077-1094 KNOB, TRIP RESET
    KNOB, TRIP RESET
  • 92077A
    92077-1112 KNOB, TRIP RESET
    KNOB, TRIP RESET
  • 92160
    92160-1461 DAMPER
    DAMPER
