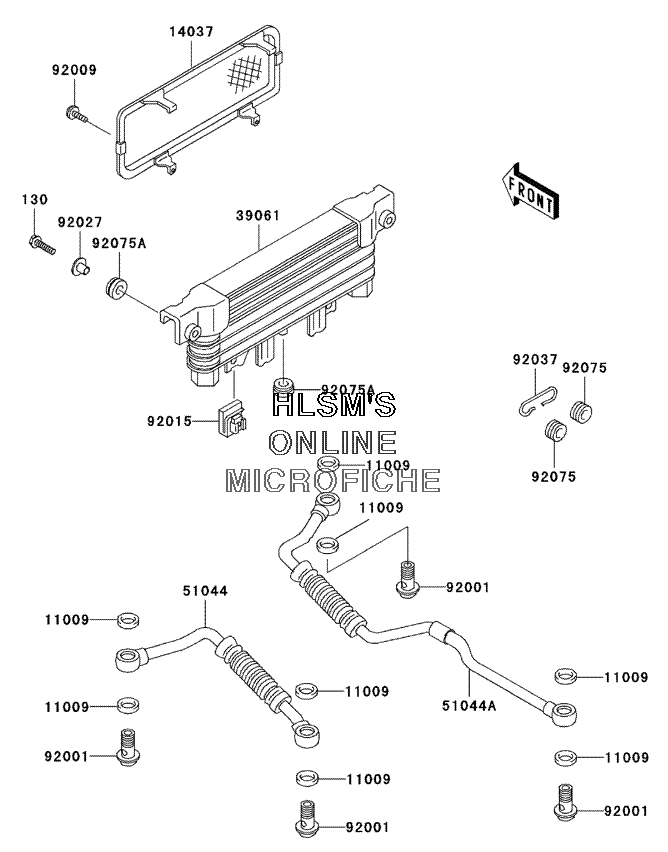

OIL COOLER для Kawasaki Concours - 2001 года выпуска
-
№АртикулНазвание
-
130130J0625 BOLT, FLANGED, 6X25BOLT, FLANGED, 6X25
-
1100911009-1461 GASKET, 14X19.5X1.4GASKET, 14X19.5X1.4
-
1403714037-1073 SCREEN, OIL COOLERSCREEN, OIL COOLER
-
3906139061-1117 OIL COOLEROIL COOLER
-
5104451044-1068 TUBE, ASSY., OIL COOLER (LEFT)TUBE, ASSY., OIL COOLER (LEFT)
-
51044A51044-1086 TUBE, ASSY., OIL COOLER (RIGHT)TUBE, ASSY., OIL COOLER (RIGHT)
-
9200192001-1930 BOLT, 14X28.5BOLT, 14X28.5
-
9200992009-1261 SCREW, TAPPING, 6MMSCREW, TAPPING, 6MM
-
9201592015-1758 NUT, 6MMNUT, 6MM
-
9202792027-1651 COLLAR, FLANGED, L=12.1 (BLACK)COLLAR, FLANGED, L=12.1 (BLACK)
-
9203792037-1905 CLAMP, OIL COOLERCLAMP, OIL COOLER
-
9207592075-1942 DAMPER, OIL COOLERDAMPER, OIL COOLER
-
92075A92075-277 DAMPERDAMPER
