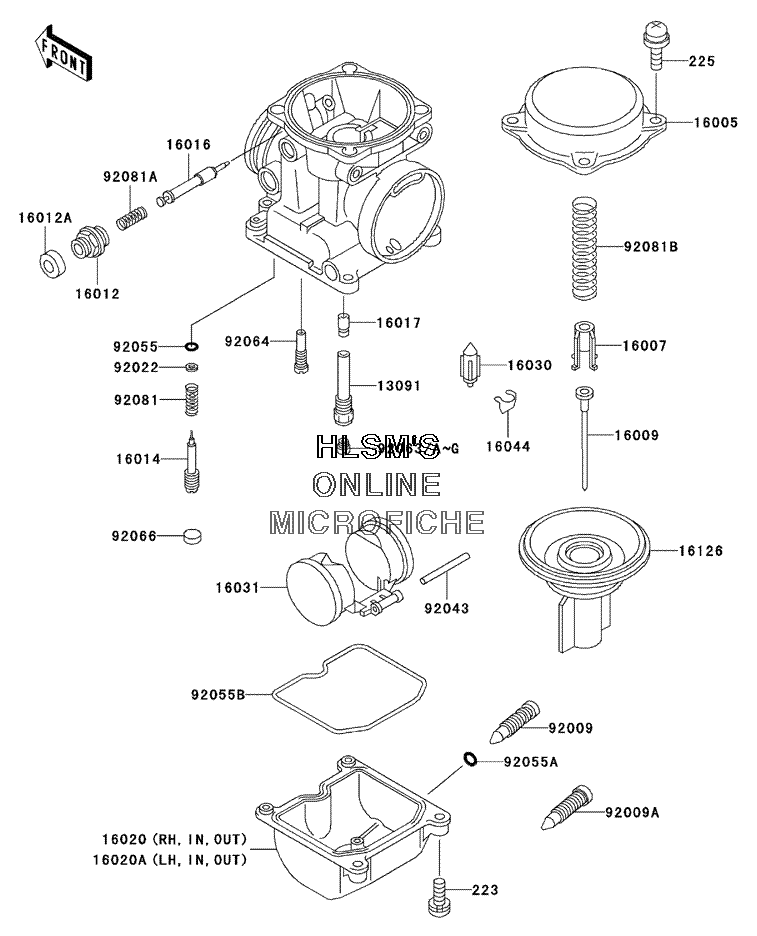

CARBURETOR PARTS для Kawasaki Concours - 2001 года выпуска

  • №
    Артикул
    Название
  • 13091
    13091-1259 HOLDER, NEEDLE JET
    HOLDER, NEEDLE JET
  • 16005
    16005-1056 TOP, CHAMBER, MIXING
    TOP, CHAMBER, MIXING
  • 16007
    16007-1120 SEAT, SPRING, THROTTLE VALVE
    SEAT, SPRING, THROTTLE VALVE
  • 16009
    16009-1326 NEEDLE, JET, N52M
    NEEDLE, JET, N52M
  • 16012
    16012-1051 CAP, STARTER PLUNGER
    CAP, STARTER PLUNGER
  • 16012A
    16012-1052 CAP, STARTER PLUNGER
    CAP, STARTER PLUNGER
  • 16014
    16014-1054 SCREW, PILOT AIR
    SCREW, PILOT AIR
  • 16016
    16016-1061 PLUNGER, STARTER
    PLUNGER, STARTER
  • 16017
    16017-1316 JET, NEEDLE
    JET, NEEDLE
  • 16020
    16020-1054 CHAMBER, FLOAT, RIGHT SIDE
    CHAMBER, FLOAT, RIGHT SIDE
  • 16020A
    16020-1055 CHAMBER, FLOAT, LEFT SIDE
    CHAMBER, FLOAT, LEFT SIDE
  • 16030
    16030-1007 VALVE, FLOAT
    VALVE, FLOAT
  • 16031
    16031-1056 FLOAT
    FLOAT
  • 16044
    16044-007 CLAMP, FLOAT VALVE
    CLAMP, FLOAT VALVE
  • 16126
    16126-1160 VALVE, VACUUM
    VALVE, VACUUM
  • 92009
    92009-1487 SCREW, DRAIN, M6X1.0
    SCREW, DRAIN, M6X1.0
  • 92009A
    92009-1551 SCREW, DRAIN, M6X0.75
    SCREW, DRAIN, M6X0.75
  • 92022
    92022-1003 WASHER, PLAIN
    WASHER, PLAIN
  • 92043
    92043-1207 PIN, FLOAT
    PIN, FLOAT
  • 92055
    92055-1002 O-RING, PILOT ADJUST
    O-RING, PILOT ADJUST
  • 92055A
    92055-1053 O-RING
    O-RING
  • 92055B
    92055-1222 O-RING, FLOAT CHAMBER
    O-RING, FLOAT CHAMBER
  • 92063
    92063-1014 JET, MAIN, #135 (CALIF. ONLY) (RACING USE ONLY)
    JET, MAIN, #135 (CALIF. ONLY) (RACING USE ONLY)
  • 92063A
    92063-1069 JET, MAIN, #125
    JET, MAIN, #125
  • 92063B
    92063-1072 JET, MAIN, #120 (EXCEPT CALIF.)
    JET, MAIN, #120 (EXCEPT CALIF.)
  • 92063C
    92063-1073 JET, MAIN, #122 (EXCEPT CALIF.)
    JET, MAIN, #122 (EXCEPT CALIF.)
  • 92063D
    92063-1074 JET, MAIN, #128 (RACING USE ONLY)
    JET, MAIN, #128 (RACING USE ONLY)
  • 92063E
    92063-1075 JET, MAIN, #130 (CALIF. ONLY)
    JET, MAIN, #130 (CALIF. ONLY)
  • 223
    223C0416 SCREW, PAN, WS, CROS
    SCREW, PAN, WS, CROS
  • 225
    225C0418 SCREW, PAN, WSP, CROS
    SCREW, PAN, WSP, CROS
  • 92063F
    92063-1075 JET, MAIN, #130 (EXCEPT CALIF.)
    JET, MAIN, #130 (EXCEPT CALIF.)
  • 92063G
    92063-1076 JET, MAIN, #132 (CALIF. ONLY)
    JET, MAIN, #132 (CALIF. ONLY)
  • 92064
    92064-1101 JET, PILOT, #35
    JET, PILOT, #35
  • 92066
    92066-1051 PLUG, PILOT AIR SCREW, 6.9X2
    PLUG, PILOT AIR SCREW, 6.9X2
  • 92081
    92081-1002 SPRING, PILOT ADJUST SCREW
    SPRING, PILOT ADJUST SCREW
  • 92081A
    92081-1761 SPRING, STARTER PLUNGER
    SPRING, STARTER PLUNGER
  • 92081B
    92081-1925 SPRING, VACUUM VALVE
    SPRING, VACUUM VALVE
