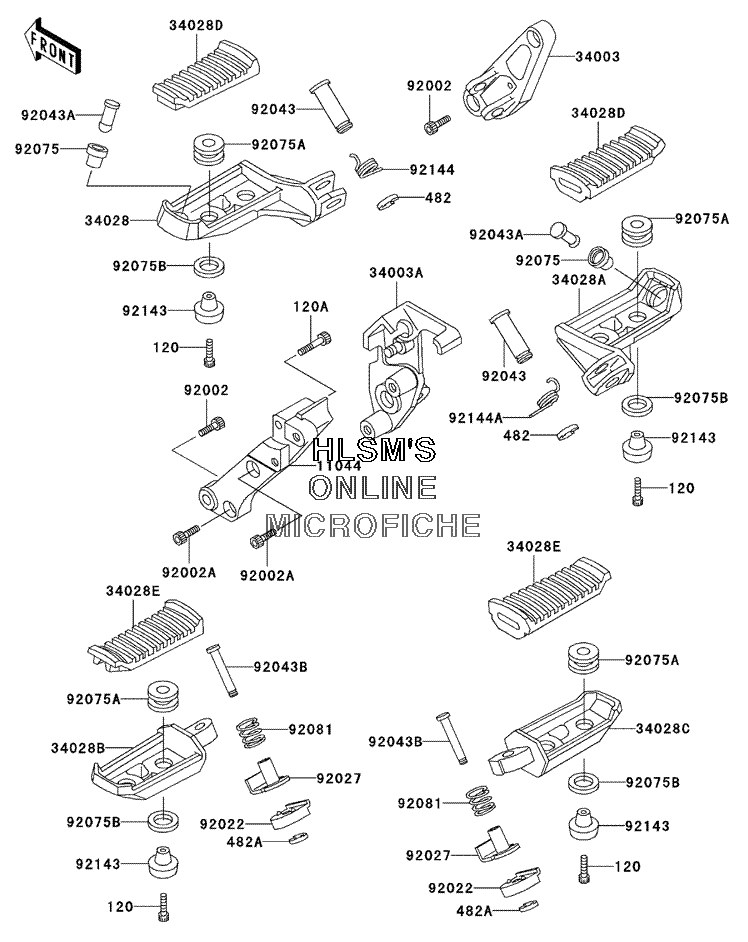

FOOTRESTS для Kawasaki Concours - 2001 года выпуска

  • №
    Артикул
    Название
  • 120
    120P0520 BOLT, SOCKET
    BOLT, SOCKET
  • 120A
    120P0840 BOLT, SOCKET, 8X40
    BOLT, SOCKET, 8X40
  • 482
    482L0100 CIRCLIP, TYPE, E, 10MM
    CIRCLIP, TYPE, E, 10MM
  • 482A
    482L5000 CIRCLIP, TYPE, E, 5MM
    CIRCLIP, TYPE, E, 5MM
  • 11044
    11044-1911 BRACKET, FRONT STEP (RIGHT)
    BRACKET, FRONT STEP (RIGHT)
  • 34003
    34003-1259 HOLDER, STEP, FRONT (LEFT)
    HOLDER, STEP, FRONT (LEFT)
  • 34003A
    34003-1260 HOLDER, STEP, FRONT (RIGHT)
    HOLDER, STEP, FRONT (RIGHT)
  • 34028
    34028-1198 STEP, FRONT (LEFT)
    STEP, FRONT (LEFT)
  • 34028A
    34028-1199 STEP, FRONT (RIGHT)
    STEP, FRONT (RIGHT)
  • 34028B
    34028-1200 STEP, REAR (LEFT)
    STEP, REAR (LEFT)
  • 34028C
    34028-1201 STEP, REAR (RIGHT)
    STEP, REAR (RIGHT)
  • 34028D
    34028-1206 STEP, FRONT, RUBBER
    STEP, FRONT, RUBBER
  • 34028E
    34028-1207 STEP, REAR, RUBBER
    STEP, REAR, RUBBER
  • 92002
    92002-1178 BOLT, SOCKET, 8X20
    BOLT, SOCKET, 8X20
  • 92002A
    92002-1442 BOLT, SOCKET, 8X25
    BOLT, SOCKET, 8X25
  • 92022
    92022-1507 WASHER, STEP, REAR
    WASHER, STEP, REAR
  • 92027
    92027-1732 COLLAR, STEP
    COLLAR, STEP
  • 92043
    92043-1145 PIN, 12X42.5
    PIN, 12X42.5
  • 92043A
    92043-1219 PIN, BANK SENSOR
    PIN, BANK SENSOR
  • 92043B
    92043-1238 PIN, 6X38.5
    PIN, 6X38.5
  • 92075
    92075-1597 DAMPER, BANK SENSOR
    DAMPER, BANK SENSOR
  • 92075A
    92075-174 DAMPER, MALE
    DAMPER, MALE
  • 92075B
    92075-175 DAMPER, FEMALE
    DAMPER, FEMALE
  • 92081
    92081-1612 SPRING, STEP, REAR
    SPRING, STEP, REAR
  • 92143
    92143-1005 COLLAR, STEP
    COLLAR, STEP
  • 92144
    92144-1567 SPRING, STEP RETURN (LEFT)
    SPRING, STEP RETURN (LEFT)
  • 92144A
    92144-1568 SPRING, STEP RETURN
    SPRING, STEP RETURN
