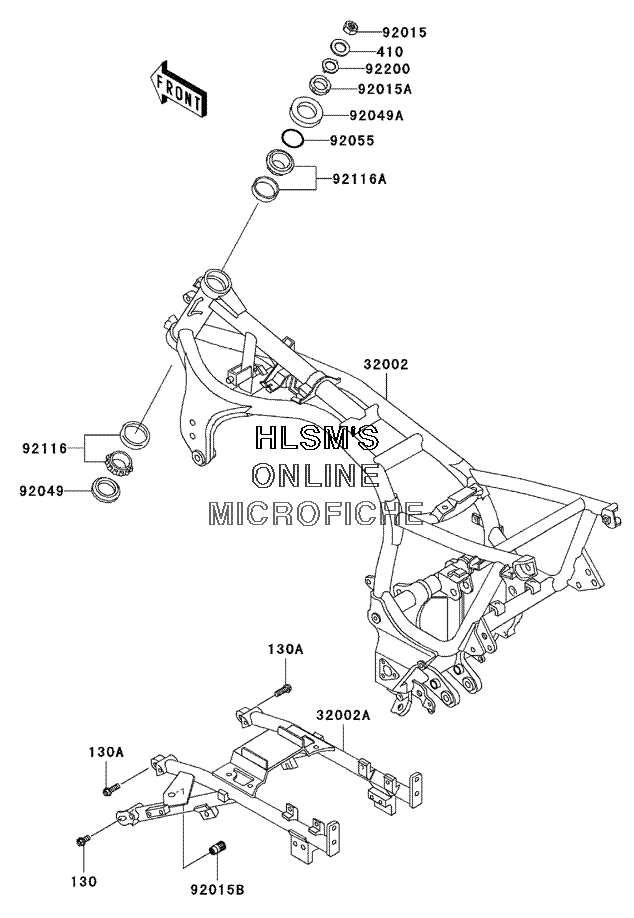

FRAME для Kawasaki Concours - 2001 года выпуска

  • №
    Артикул
    Название
  • 130
    130G1020 BOLT, FLANGED, 10X20
    BOLT, FLANGED, 10X20
  • 130A
    130G1030 BOLT, FLANGED, 10X30
    BOLT, FLANGED, 10X30
  • 410
    410F1800 W, PLAIN, S
    W, PLAIN, S
  • 32002
    32002-1878 FRAME, COMP, FRONT
    FRAME, COMP, FRONT
  • 32002A
    32002-1879 FRAME, COMP, AL, REAR
    FRAME, COMP, AL, REAR
  • 92015
    92015-1404 NUT, 18MM
    NUT, 18MM
  • 92015A
    92015-1546 NUT, 25MM, T=12
    NUT, 25MM, T=12
  • 92015B
    92015-1796 NUT, CRIMP 6MM
    NUT, CRIMP 6MM
  • 92049
    92049-1162 SEAL, OIL, XMHE36X52X4J
    SEAL, OIL, XMHE36X52X4J
  • 92049A
    92049-1214 SEAL, OIL, STEERING STEM
    SEAL, OIL, STEERING STEM
  • 92055
    92055-1459 O-RING, ID=24.5
    O-RING, ID=24.5
  • 92116
    92116-1009 BEARING, ROLLER, HR320/28XJ
    BEARING, ROLLER, HR320/28XJ
  • 92116A
    92116-1056 BEARING, ROLLER, HI, CAP32005JR, 1
    BEARING, ROLLER, HI, CAP32005JR, 1
  • 92200
    92200-1357 WASHER, CLAW, 18.5X30X2.3
    WASHER, CLAW, 18.5X30X2.3
