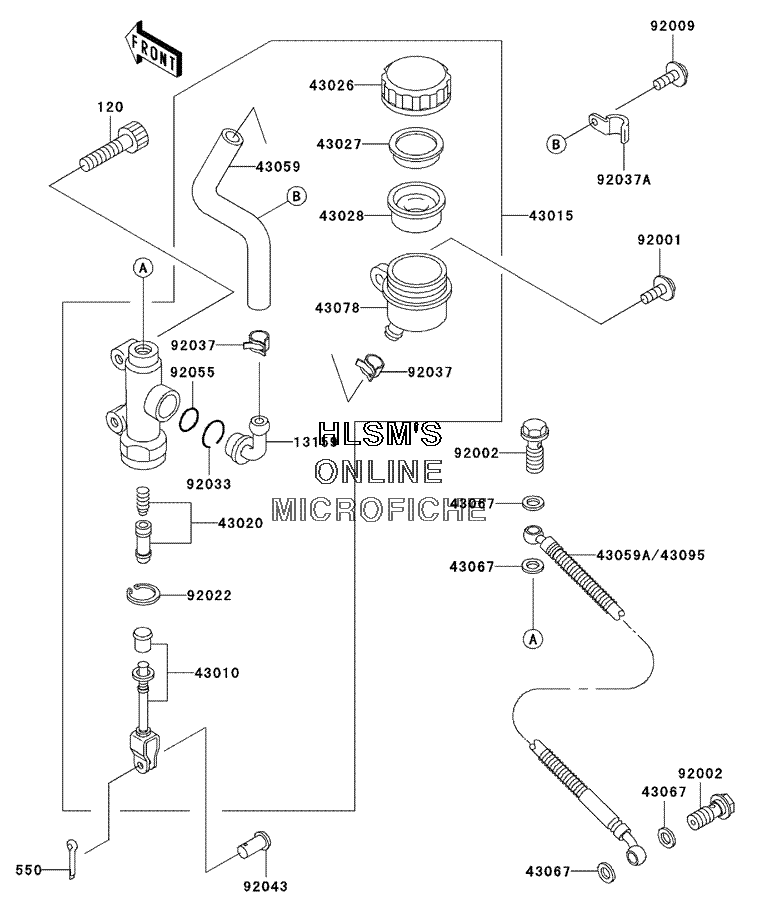

BRAKE - MASTER CYLINDER - REAR для Kawasaki Concours - 2001 года выпуска`
-
№АртикулНазвание
-
120120P0830 BOLT, SOCKET, 8X30BOLT, SOCKET, 8X30
-
550550D2015 PIN, COTTER, 2.0X15PIN, COTTER, 2.0X15
-
1315913159-1052 CONNECTOR, REAR MASTER CYLINDERCONNECTOR, REAR MASTER CYLINDER
-
4301043010-1066 ROD, ASSY., BRAKEROD, ASSY., BRAKE
-
4301543015-1359 CYLINDER, ASSY., MASTER, REARCYLINDER, ASSY., MASTER, REAR
-
4302043020-1067 PISTON, COMP, BRAKE, REARPISTON, COMP, BRAKE, REAR
-
4302643026-1051 CAP, BRAKECAP, BRAKE
-
4302743027-1051 PLATE, DIAPHRAGMPLATE, DIAPHRAGM
-
4302843028-1057 DIAPHRAGM, MASTER CYLINDERDIAPHRAGM, MASTER CYLINDER
-
4305943059-1374 HOSE, BRAKE, REAR MASTER CYLINDERHOSE, BRAKE, REAR MASTER CYLINDER
-
43059A43059-1976 HOSE, BRAKE, REARHOSE, BRAKE, REAR
-
4306743067-001 WASHER, 10.5X15X1.5WASHER, 10.5X15X1.5
-
4307843078-1165 RESERVOIR, REAR MASTER CYLINDERRESERVOIR, REAR MASTER CYLINDER
-
9200192001-1860 BOLT, W/P, 6X16BOLT, W/P, 6X16
-
9200292002-1888 BOLT, OIL, L=23BOLT, OIL, L=23
-
9200992009-1294 SCREW, 6X8SCREW, 6X8
-
9202292022-1601 WASHER, CIRCRIPWASHER, CIRCRIP
-
9203392033-1186 RING, SNAP, 20.5MMRING, SNAP, 20.5MM
-
9203792037-1547 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
92037A92037-1807 CLAMP, HOSECLAMP, HOSE
-
9204392043-1303 PIN, 8MMPIN, 8MM
-
9205592055-1251 O-RING, MASTER CYLINDERO-RING, MASTER CYLINDER
