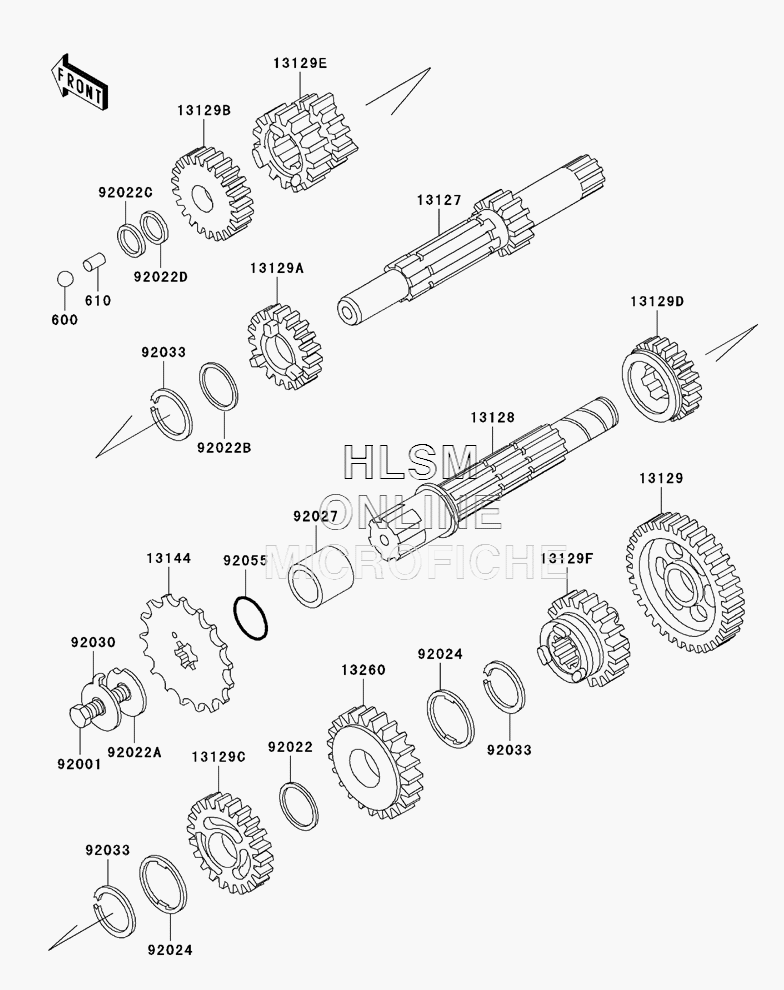

TRANSMISSION для Kawasaki GTO - 2000 года выпуска

  • №
    Артикул
    Название
  • 600
    600A0900 BALL, STEEL, 9/32"
    BALL, STEEL, 9/32"
  • 610
    610A0406 ROLLER, 4X6
    ROLLER, 4X6
  • 13127
    13127-1054 SHAFT, TRANSMISSION INPUT
    SHAFT, TRANSMISSION INPUT
  • 13128
    13128-1186 SHAFT, TRANSMISSION OUTPUT
    SHAFT, TRANSMISSION OUTPUT
  • 13129
    13129-010 GEAR, OUTPUT LOW (35 TEETH)
    GEAR, OUTPUT LOW (35 TEETH)
  • 13129A
    13129-1139 GEAR, INPUT 4TH (22 TEETH)
    GEAR, INPUT 4TH (22 TEETH)
  • 13129B
    13129-1146 GEAR, INPUT TOP (28 TEETH)
    GEAR, INPUT TOP (28 TEETH)
  • 13129C
    13129-1148 GEAR, OUTPUT 3RD (26 TEETH)
    GEAR, OUTPUT 3RD (26 TEETH)
  • 13129D
    13129-1149 GEAR, OUTPUT TOP (26 TEETH)
    GEAR, OUTPUT TOP (26 TEETH)
  • 13129E
    13129-1289 GEAR, INPUT 2ND AND 3RD (15/20 TEETH)
    GEAR, INPUT 2ND AND 3RD (15/20 TEETH)
  • 13129F
    13129-1708 GEAR, OUTPUT 4TH (24 TEETH)
    GEAR, OUTPUT 4TH (24 TEETH)
  • 13144
    13144-066 SPROCKET, OUTPUT (14 TEETH)
    SPROCKET, OUTPUT (14 TEETH)
  • 13260
    13260-1390 GEAR, OUTPUT 2ND (26 TEETH)
    GEAR, OUTPUT 2ND (26 TEETH)
  • 92001
    92001-1368 BOLT, 8X16
    BOLT, 8X16
  • 92022
    92022-146 WASHER, THRUST, 18.5X23X1.6
    WASHER, THRUST, 18.5X23X1.6
  • 92022A
    92022-266 WASHER, T=2.3
    WASHER, T=2.3
  • 92022B
    92022-271 WASHER, 18.3X22X0.5
    WASHER, 18.3X22X0.5
  • 92022C
    92022-272 WASHER, 14.3X24X1
    WASHER, 14.3X24X1
  • 92022D
    92022-273 WASHER, 14.3X24X1
    WASHER, 14.3X24X1
  • 92024
    92024-030 WASHER, TOOTHED, 18.5X23X1.2
    WASHER, TOOTHED, 18.5X23X1.2
  • 92027
    92027-1595 COLLAR, ENGINE SPROCKET, L=13.7
    COLLAR, ENGINE SPROCKET, L=13.7
  • 92030
    92030-012 WASHER, CLAW, 8X22X1.2
    WASHER, CLAW, 8X22X1.2
  • 92033
    92033-014 RING, SNAP, 16MM
    RING, SNAP, 16MM
  • 92055
    92055-022 O-RING, 17.5X1.5
    O-RING, 17.5X1.5
