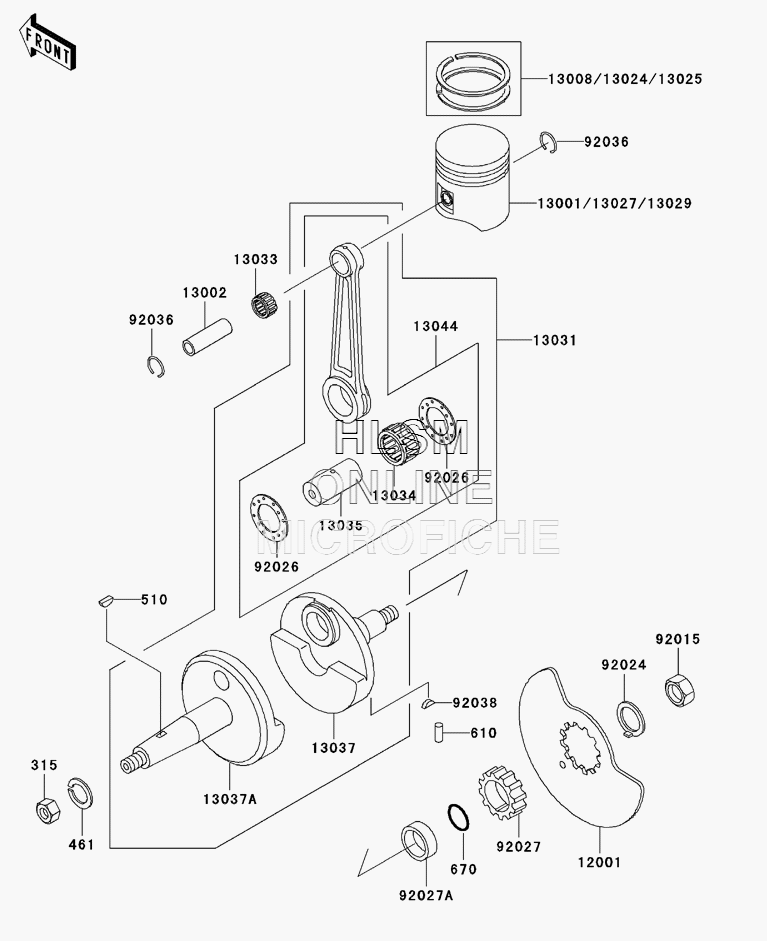

CRANKSHAFT/PISTON(S) для Kawasaki GTO - 2000 года выпуска

  • №
    Артикул
    Название
  • 315
    315G1200 NUT, HEX, FINE
    NUT, HEX, FINE
  • 461
    461E1200 WASHER, SPRING, 12MM
    WASHER, SPRING, 12MM
  • 510
    510A3200 KEY, WOODRUFF
    KEY, WOODRUFF
  • 610
    610A0410 ROLLER, 4X10
    ROLLER, 4X10
  • 670
    670B2016 O-RING, 16MM
    O-RING, 16MM
  • 12001
    12001-1002 VALVE, ROTARY
    VALVE, ROTARY
  • 13001
    13001-1514 PISTON, ENGINE (STD)
    PISTON, ENGINE (STD)
  • 13002
    13002-1051 PIN, PISTON
    PIN, PISTON
  • 13008
    13008-5060 RING, SET, PISTON (STD)
    RING, SET, PISTON (STD)
  • 13024
    13024-5025 RING, SET, PISTON (O/S 1.00)
    RING, SET, PISTON (O/S 1.00)
  • 13025
    13025-5026 RING, SET, PISTON (O/S 0.50)
    RING, SET, PISTON (O/S 0.50)
  • 13027
    13027-1169 PISTON, ENGINE (O/S 1.00)
    PISTON, ENGINE (O/S 1.00)
  • 13029
    13029-1213 PISTON, ENGINE (O/S 0.50)
    PISTON, ENGINE (O/S 0.50)
  • 13031
    13031-1337 CRANKSHAFT, COMP
    CRANKSHAFT, COMP
  • 13033
    13033-1008 BEARING, NEEDLE, KBK15X19X18.8X1
    BEARING, NEEDLE, KBK15X19X18.8X1
  • 13034
    13034-1053 BEARING, BIG END
    BEARING, BIG END
  • 13035
    13035-1075 PIN, CRANK
    PIN, CRANK
  • 13037
    13037-1137 CRANKSHAFT (RIGHT)
    CRANKSHAFT (RIGHT)
  • 13037A
    13037-1140 CRANKSHAFT (LEFT)
    CRANKSHAFT (LEFT)
  • 13044
    13044-5081 SET, CONNECTING ROD
    SET, CONNECTING ROD
  • 92015
    92015-006 NUT, 12MM
    NUT, 12MM
  • 92024
    92024-003 WASHER, CLAW, 12.5X25X0.8
    WASHER, CLAW, 12.5X25X0.8
  • 92026
    92026-1136 SPACER, 22.2X37X1.0
    SPACER, 22.2X37X1.0
  • 92027
    92027-1245 COLLAR, ROTARY VALVE
    COLLAR, ROTARY VALVE
  • 92027A
    92027-285 COLLAR, 20X25X9.5
    COLLAR, 20X25X9.5
  • 92036
    92036-005 RING, SNAP
    RING, SNAP
  • 92038
    92038-003 KEY, WOODRUFF
    KEY, WOODRUFF
