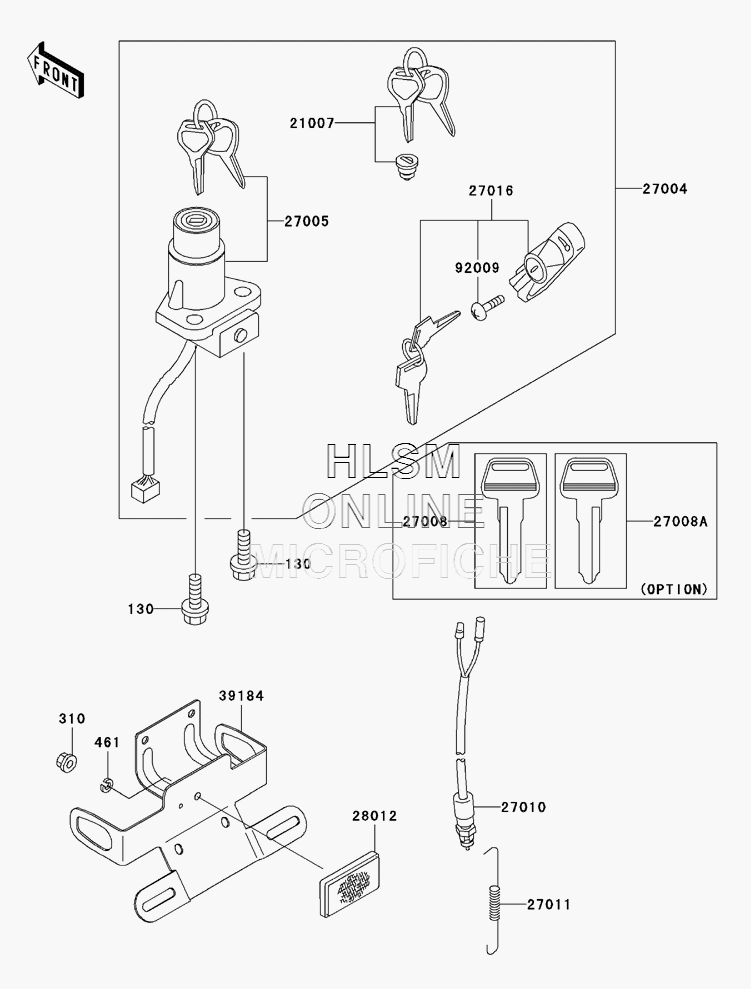

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki GTO - 2000 года выпуска
-
№АртикулНазвание
-
130130D0614 BOLT, FLANGED, 6X14BOLT, FLANGED, 6X14
-
310310B0500 NUTNUT
-
461461F0500 WASHER, SPRING, 5MMWASHER, SPRING, 5MM
-
2100721007-5004 ROTOR, LOCK, TANK CAPROTOR, LOCK, TANK CAP
-
2700427004-5140 SWITCH, ASSY.SWITCH, ASSY.
-
2700527005-1039 SWITCH, ASSY., IGNITIONSWITCH, ASSY., IGNITION
-
2700827008-1034 KEY, LOCK, BLANK, #A (OPT)KEY, LOCK, BLANK, #A (OPT)
-
27008A27008-1035 KEY, LOCK, BLANK, #B (OPT)KEY, LOCK, BLANK, #B (OPT)
-
2701027010-1451 SWITCH, REAR BRAKESWITCH, REAR BRAKE
-
2701127011-015 SPRING, BRAKE LAMP SWITCHSPRING, BRAKE LAMP SWITCH
-
2701627016-5029 LOCK, ASSY., HELMETLOCK, ASSY., HELMET
-
2801228012-1076 REFLECTOR, REFLEXREFLECTOR, REFLEX
-
3918439184-1082 BRACKET, ASSY., SIGNAL LAMP, REARBRACKET, ASSY., SIGNAL LAMP, REAR
-
9200992009-1547 SCREW, 5X18SCREW, 5X18
