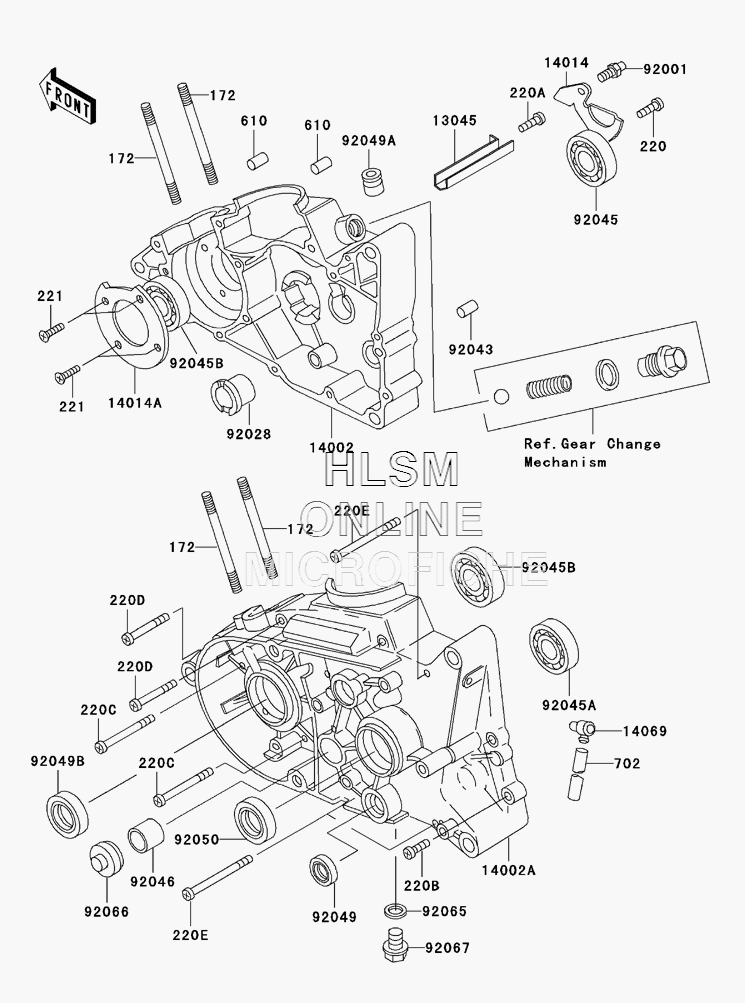

CRANKCASE для Kawasaki GTO - 2000 года выпуска
-
№АртикулНазвание
-
172172G08120 BOLT, STUD, 8X120BOLT, STUD, 8X120
-
220220B0612 SCREW, PAN, CROS, 6X12SCREW, PAN, CROS, 6X12
-
220A220B0620 SCREW, PAN, CROS, 6X20SCREW, PAN, CROS, 6X20
-
220B220B0625 SCREW, PAN, CROS, 6X25SCREW, PAN, CROS, 6X25
-
220C220B0640 SCREW, PAN, CROS, 6X40SCREW, PAN, CROS, 6X40
-
220D220B0660 SCREW, PAN, CROS, 6X60SCREW, PAN, CROS, 6X60
-
220E220B0665 SCREW, PAN, CROS, 6X65SCREW, PAN, CROS, 6X65
-
221221B0616 SCREW, CSK, CROS, 6X16SCREW, CSK, CROS, 6X16
-
610610A0512 ROLLER, 5X12ROLLER, 5X12
-
702702A06150 TUBE, RUBBER, 6X9X150TUBE, RUBBER, 6X9X150
-
1304513045-1003 RECEIVER, OILRECEIVER, OIL
-
1400214002-1906 CRANKCASE (RIGHT)CRANKCASE (RIGHT)
-
14002A14002-1907 CRANKCASE (LEFT)CRANKCASE (LEFT)
-
1401414014-008 PLATE, POSITIONPLATE, POSITION
-
14014A14014-017 PLATE, POSITIONPLATE, POSITION
-
1406914069-003 BREATHERBREATHER
-
9200192001-1426 BOLT, CHANGE DRUM STOPBOLT, CHANGE DRUM STOP
-
9202892028-069 BUSHING, L=14BUSHING, L=14
-
9204392043-1322 PIN, 8X16PIN, 8X16
-
9204592045-1039 BEARING, BALL, TMB005BEARING, BALL, TMB005
-
92045A92045-1118 BEARING, BALL, 6004TMBBEARING, BALL, 6004TMB
-
92045B92045-1278 BEARING, BALL, TMB204JR2C3BEARING, BALL, TMB204JR2C3
-
9204692046-037 BEARING, NEEDLE, 7E, HK1412BEARING, NEEDLE, 7E, HK1412
-
9204992049-004 SEAL, OIL, SB12205SEAL, OIL, SB12205
-
92049A92049-1001 SEAL, OIL, TACHOMETERSEAL, OIL, TACHOMETER
-
92049B92049-1481 SEAL, OILSEAL, OIL
-
9205092050-013 SEAL, OIL, SC25376SEAL, OIL, SC25376
-
9206592065-058 GASKET, 10.5X16X1GASKET, 10.5X16X1
-
9206692066-1071 PLUGPLUG
-
9206792067-001 PLUG, DRAIN, 10X12PLUG, DRAIN, 10X12
