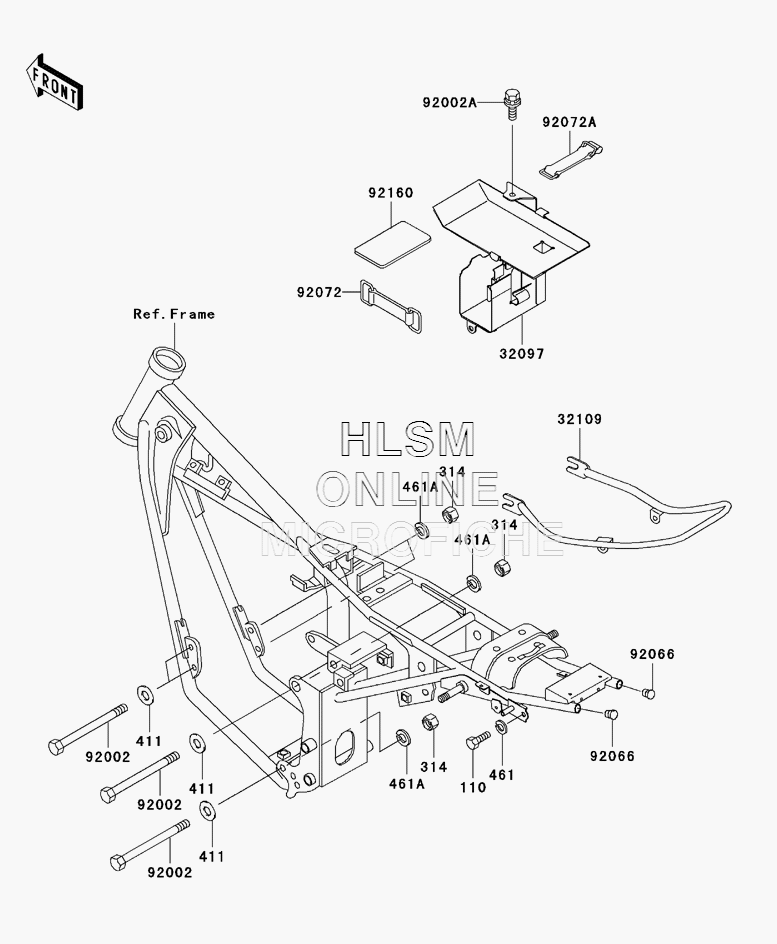

FRAME FITTINGS для Kawasaki GTO - 2000 года выпуска
-
№АртикулНазвание
-
110110B0820 BOLT, 8X20BOLT, 8X20
-
314314B1000 NUT, HEX, FINE, 10MMNUT, HEX, FINE, 10MM
-
411411B1000 WASHER, PLAIN, 10MMWASHER, PLAIN, 10MM
-
461461F0800 WASHER, SPRING, 8MMWASHER, SPRING, 8MM
-
461A461F1000 WASHER, SPRING, 10MMWASHER, SPRING, 10MM
-
3209732097-1168 CASE, BATTERYCASE, BATTERY
-
3210932109-1291 GRIP, FRAMEGRIP, FRAME
-
9200292002-1072 BOLT, 10X115BOLT, 10X115
-
92002A92002-1133 BOLT, 6X14BOLT, 6X14
-
9206692066-1459 PLUGPLUG
-
9207292072-045 BAND, L=90BAND, L=90
-
92072A92072-1085 BANDBAND
-
9216092160-1806 DAMPER, BATTERYDAMPER, BATTERY
