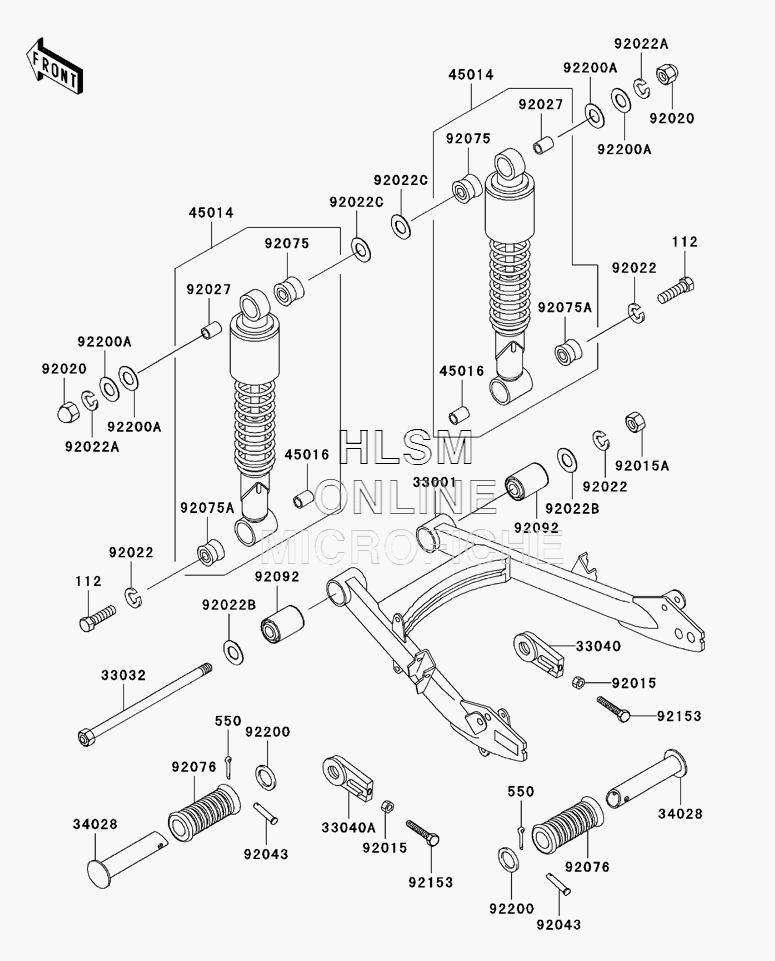

SUSPENSION - SWINGARM W/ SHOCK ABSORBER для Kawasaki GTO - 2000 года выпуска

  • №
    Артикул
    Название
  • 112
    112N1035 BOLT, UPSET
    BOLT, UPSET
  • 550
    550D2518 PIN, COTTER, 2.5X18
    PIN, COTTER, 2.5X18
  • 33001
    33001-1212 ARM, COMP, SWING
    ARM, COMP, SWING
  • 33032
    33032-039 SHAFT, SWING ARM
    SHAFT, SWING ARM
  • 33040
    33040-1025 ADJUSTER, CHAIN (RIGHT)
    ADJUSTER, CHAIN (RIGHT)
  • 33040A
    33040-1054 ADJUSTER, CHAIN (LEFT)
    ADJUSTER, CHAIN (LEFT)
  • 34028
    34028-1023 STEP, REAR
    STEP, REAR
  • 45014
    45014-1650 SHOCKABSORBER
    SHOCKABSORBER
  • 45016
    45016-003 COLLAR, SHOCKABSORBER
    COLLAR, SHOCKABSORBER
  • 92015
    92015-1364 NUT, 8MM
    NUT, 8MM
  • 92015A
    92015-1416 NUT, 10MM
    NUT, 10MM
  • 92020
    92020-014 NUT, CAP, 12MM
    NUT, CAP, 12MM
  • 92022
    92022-1540 WASHER, SPRING, 10MM
    WASHER, SPRING, 10MM
  • 92022A
    92022-1541 WASHER, SPRING, 12MM
    WASHER, SPRING, 12MM
  • 92022B
    92022-1558 WASHER, 10.5X22X1.6
    WASHER, 10.5X22X1.6
  • 92022C
    92022-1563 WASHER
    WASHER
  • 92027
    92027-1031 COLLAR, SHOCKABSORBER
    COLLAR, SHOCKABSORBER
  • 92043
    92043-080 PIN, 8X31
    PIN, 8X31
  • 92075
    92075-1019 DAMPER, RUBBER
    DAMPER, RUBBER
  • 92075A
    92075-1020 DAMPER, SHOCKABSORBER
    DAMPER, SHOCKABSORBER
  • 92076
    92076-020 DAMPER
    DAMPER
  • 92092
    92092-006 BUSHING, RUBBER, SWING ARM SHAFT
    BUSHING, RUBBER, SWING ARM SHAFT
  • 92153
    92153-1194 BOLT, CHAIN ADJUSTER, 8X50
    BOLT, CHAIN ADJUSTER, 8X50
  • 92200
    92200-1120 WASHER, 19.5X28X2.3
    WASHER, 19.5X28X2.3
  • 92200A
    92200-1541 WASHER, 12.5X26X2.3
    WASHER, 12.5X26X2.3
