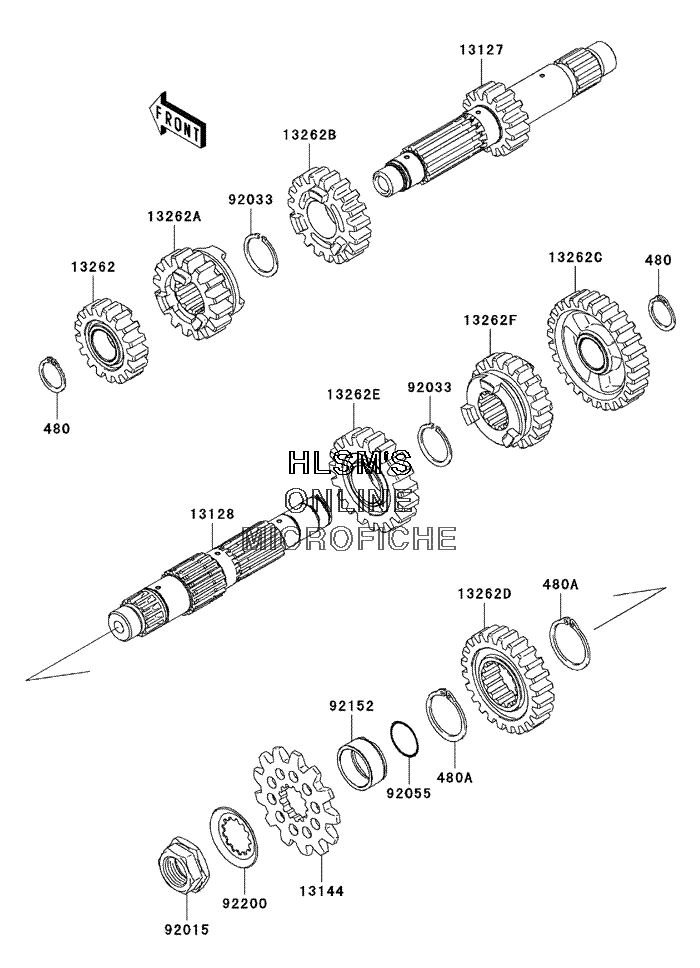

TRANSMISSION для Kawasaki KX 450F - 2006 года выпуска`
-
№АртикулНазвание
-
480480J1900 CIRCLIP, TYPE, C, 19MMCIRCLIP, TYPE, C, 19MM
-
480A480J3000 CIRCLIP, TYPE, C, 30MMCIRCLIP, TYPE, C, 30MM
-
1312713127-0037 SHAFT, TRANSMISSION INPUT, 15TSHAFT, TRANSMISSION INPUT, 15T
-
1312813128-0021 SHAFT, TRANSMISSION OUTPUTSHAFT, TRANSMISSION OUTPUT
-
1314413144-0017 SPROCKET, OUTPUT, 13TSPROCKET, OUTPUT, 13T
-
1326213262-0255 GEAR, INPUT 2ND, 17TGEAR, INPUT 2ND, 17T
-
13262A13262-0256 GEAR, INPUT 3RD, 16TGEAR, INPUT 3RD, 16T
-
13262B13262-0257 GEAR, INPUT 4TH, 19TGEAR, INPUT 4TH, 19T
-
13262C13262-0258 GEAR, OUTPUT LOW, 27TGEAR, OUTPUT LOW, 27T
-
13262D13262-0259 GEAR, OUTPUT 2ND, 24TGEAR, OUTPUT 2ND, 24T
-
13262E13262-0260 GEAR, OUTPUT 3RD, 19TGEAR, OUTPUT 3RD, 19T
-
13262F13262-0261 GEAR, OUTPUT 4TH, 19TGEAR, OUTPUT 4TH, 19T
-
9201592015-1963 NUT, 20MMNUT, 20MM
-
9203392033-1172 RING, SNAP, 25MMRING, SNAP, 25MM
-
9205592055-1293 O-RING, 21.5X1.5O-RING, 21.5X1.5
-
9215292152-0150 COLLAR, 25X30X13.2COLLAR, 25X30X13.2
-
9220092200-1065 WASHERWASHER
