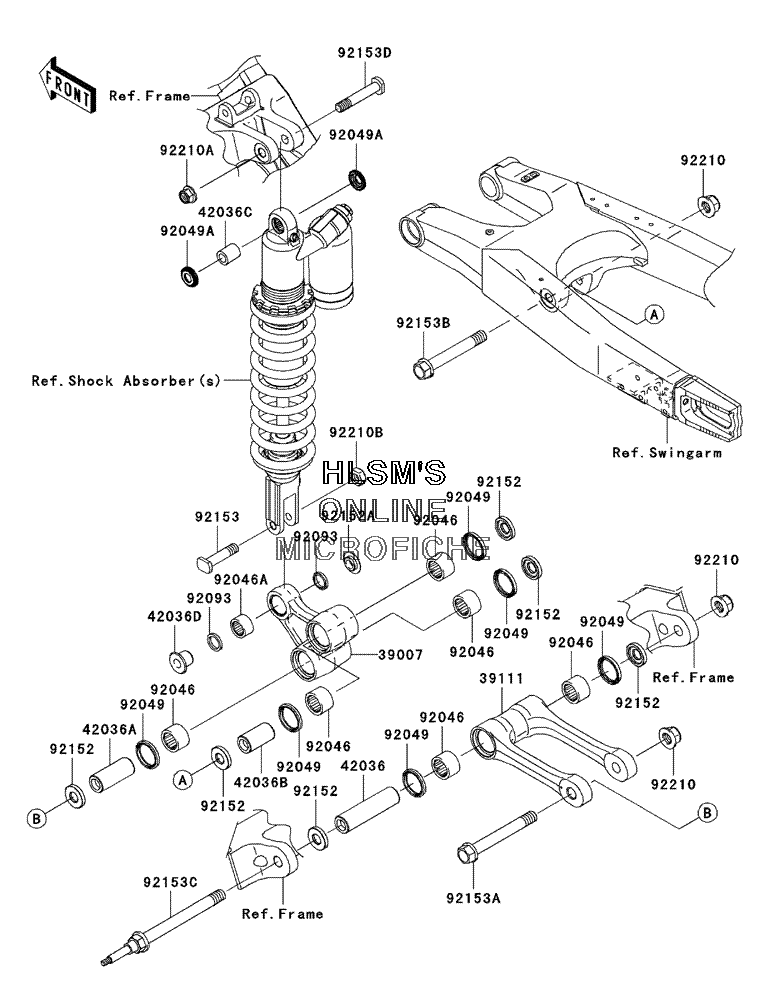

SUSPENSION - REAR для Kawasaki KX 450F - 2006 года выпуска

  • №
    Артикул
    Название
  • 39007
    39007-0063 ARM, SUSP, UNI TRAK
    ARM, SUSP, UNI TRAK
  • 39111
    39111-0027 ROD, TIE, SUSPENSION
    ROD, TIE, SUSPENSION
  • 42036
    42036-0020 SLEEVE, ROD, L=78.4
    SLEEVE, ROD, L=78.4
  • 42036A
    42036-0021 SLEEVE, SUSPENSION ARM, L=49
    SLEEVE, SUSPENSION ARM, L=49
  • 42036B
    42036-0022 SLEEVE, SUSPENSION ARM, L=37
    SLEEVE, SUSPENSION ARM, L=37
  • 42036C
    42036-0030 SLEEVE, 10X16X19.3
    SLEEVE, 10X16X19.3
  • 42036D
    42036-1351 SLEEVE
    SLEEVE
  • 92046
    92046-1151 BEARING, NEEDLE, F, 2016
    BEARING, NEEDLE, F, 2016
  • 92046A
    92046-1301 BEARING, NEEDLE, 7E, HVS16X22X12
    BEARING, NEEDLE, 7E, HVS16X22X12
  • 92049
    92049-0063 SEAL, OIL, SDO26X32X4
    SEAL, OIL, SDO26X32X4
  • 92049A
    92049-0069 SEAL, OIL
    SEAL, OIL
  • 92093
    92093-1436 SEAL
    SEAL
  • 92152
    92152-0293 COLLAR
    COLLAR
  • 92152A
    92152-1139 COLLAR
    COLLAR
  • 92153
    92153-0937 BOLT, 10X45
    BOLT, 10X45
  • 92153A
    92153-0938 BOLT, FLANGED, 12X95
    BOLT, FLANGED, 12X95
  • 92153B
    92153-0939 BOLT, FLANGED, 12X86
    BOLT, FLANGED, 12X86
  • 92153C
    92153-0941 BOLT, 12MM, L=122
    BOLT, 12MM, L=122
  • 92153D
    92153-1386 BOLT, 10X58
    BOLT, 10X58
  • 92210
    92210-0110 NUT, LOCK, FLANGED, 12MM
    NUT, LOCK, FLANGED, 12MM
  • 92210A
    92210-1080 NUT, LOCK, FLANGED, 10MM
    NUT, LOCK, FLANGED, 10MM
  • 92210B
    92210-1184 NUT, LOCK, 10MM
    NUT, LOCK, 10MM
