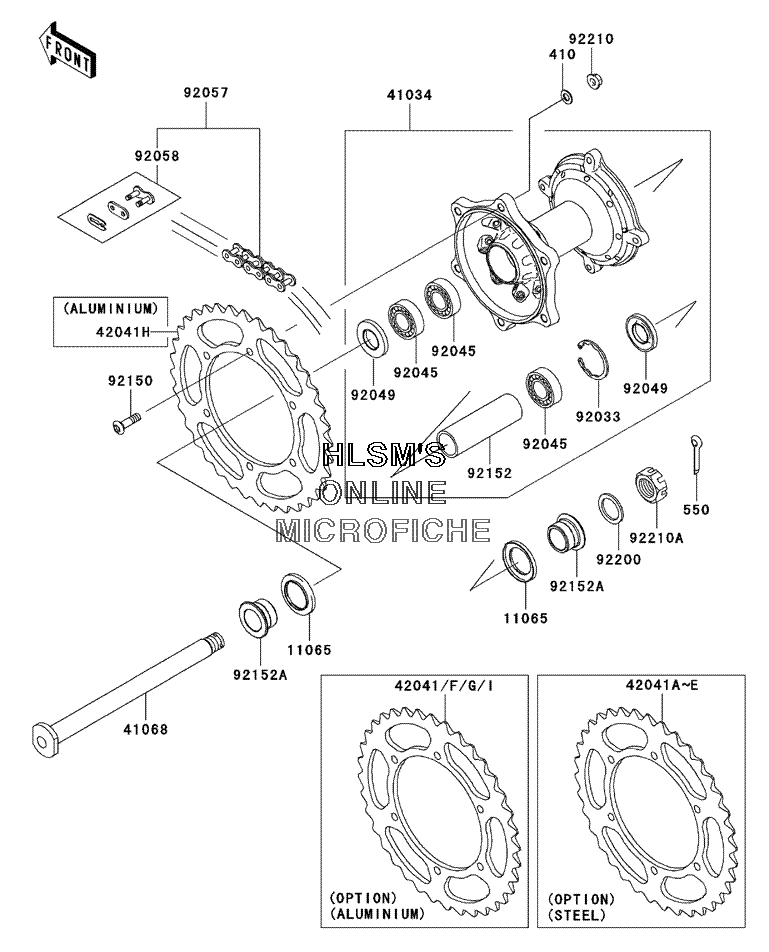

REAR HUB для Kawasaki KX 450F - 2006 года выпуска
-
№АртикулНазвание
-
410410B0800 WASHER, PLAIN, SMALL, 8MMWASHER, PLAIN, SMALL, 8MM
-
550550D3035 PIN, COTTER, 3.0X35PIN, COTTER, 3.0X35
-
1106511065-1253 CAP, AXLECAP, AXLE
-
4103441034-0004 DRUM, ASSY., REAR BRAKEDRUM, ASSY., REAR BRAKE
-
4106841068-1466 AXLE, REARAXLE, REAR
-
4204142041-0001 SPROCKET, HUB, 52T, AL (OPT.)SPROCKET, HUB, 52T, AL (OPT.)
-
42041A42041-1383 SPROCKET, HUB, 48T (OPT.)SPROCKET, HUB, 48T (OPT.)
-
42041B42041-1384 SPROCKET, HUB, 49T (OPT.)SPROCKET, HUB, 49T (OPT.)
-
42041C42041-1408 SPROCKET, HUB, 50T (OPT.)SPROCKET, HUB, 50T (OPT.)
-
42041D42041-1428 SPROCKET, HUB, 51T (OPT.)SPROCKET, HUB, 51T (OPT.)
-
42041E42041-1429 SPROCKET, HUB, 52T (OPT.)SPROCKET, HUB, 52T (OPT.)
-
42041F42041-1448 SPROCKET, HUB, 48T, AL (OPT.)SPROCKET, HUB, 48T, AL (OPT.)
-
42041G42041-1449 SPROCKET, HUB, 49T, AL (OPT.)SPROCKET, HUB, 49T, AL (OPT.)
-
42041H42041-1450 SPROCKET, HUB, 50T, ALSPROCKET, HUB, 50T, AL
-
42041I42041-1451 SPROCKET, HUB, 51T, AL (OPT.)SPROCKET, HUB, 51T, AL (OPT.)
-
9203392033-1041 RING, SNAP, 42MMRING, SNAP, 42MM
-
9204592045-1446 BEARING, BALL, 69052RSBEARING, BALL, 69052RS
-
9204992049-1614 SEAL, OILSEAL, OIL
-
9205792057-1541 CHAIN, DRIVE, DID520DMA2SDHX114LCHAIN, DRIVE, DID520DMA2SDHX114L
-
9205892058-1074 JOINT, CHAIN, DRIVEJOINT, CHAIN, DRIVE
-
9215092150-1978 BOLT, SOCKET, 8X28BOLT, SOCKET, 8X28
-
9215292152-1427 COLLAR, REAR BRAKE DRUM, L=106.5COLLAR, REAR BRAKE DRUM, L=106.5
-
92152A92152-1473 COLLAR, REAR AXLE, L=17COLLAR, REAR AXLE, L=17
-
9220092200-1623 WASHER, 22.5X35X2.3WASHER, 22.5X35X2.3
-
9221092210-0159 NUT, FLANGED, LOCK, 8MMNUT, FLANGED, LOCK, 8MM
-
92210A92210-1411 NUT, CASTLE, 22MMNUT, CASTLE, 22MM
