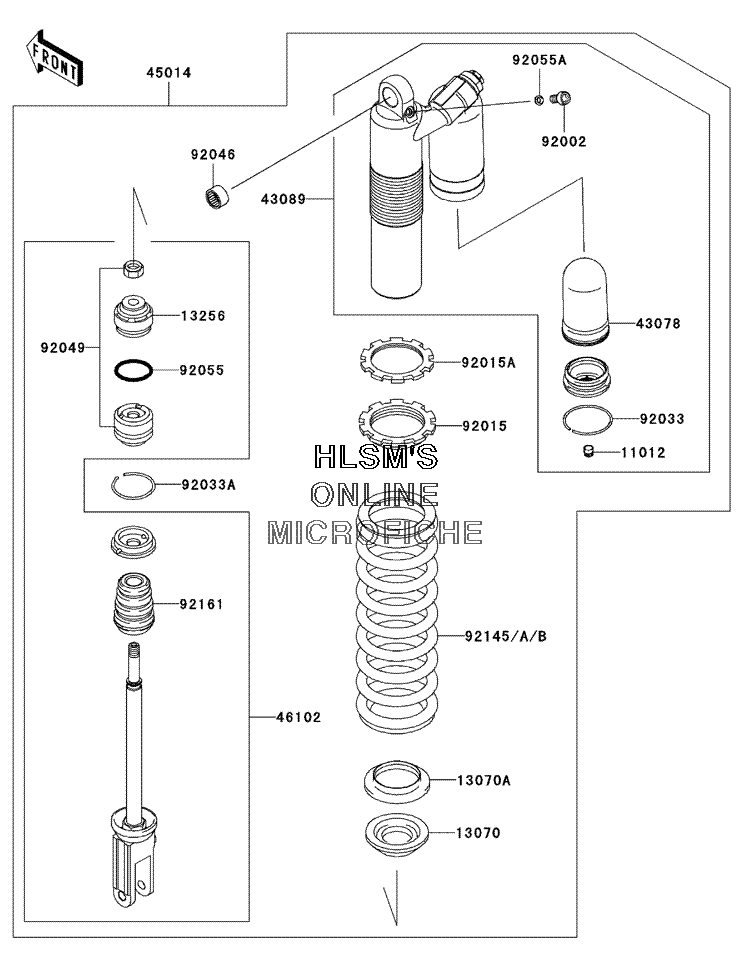

SUSPENSION - SHOCK ABSORBER для Kawasaki KX 450F - 2006 года выпуска

  • №
    Артикул
    Название
  • 11012
    11012-1552 CAP, AIR VALVE
    CAP, AIR VALVE
  • 13070
    13070-0029 GUIDE, SPRING
    GUIDE, SPRING
  • 13070A
    13070-1362 GUIDE, SPRING
    GUIDE, SPRING
  • 13256
    13256-0002 PISTON, SHOCKABSORBER
    PISTON, SHOCKABSORBER
  • 43078
    43078-0031 RESERVOIR, SHOCKABSORBER
    RESERVOIR, SHOCKABSORBER
  • 43089
    43089-0010-829 CYLINDER, SHOCKABSORBER (GOLD)
    CYLINDER, SHOCKABSORBER (GOLD)
  • 45014
    45014-5019 SHOCKABSORBER
    SHOCKABSORBER
  • 46102
    46102-0081 ROD, SHOCKABSORBER
    ROD, SHOCKABSORBER
  • 92002
    92002-1955 BOLT, DRAIN
    BOLT, DRAIN
  • 92015
    92015-1703 NUT, SPRING ADJUST
    NUT, SPRING ADJUST
  • 92015A
    92015-1704 NUT, SPRING ADJUST LOCK
    NUT, SPRING ADJUST LOCK
  • 92033
    92033-0044 RING, SNAP
    RING, SNAP
  • 92033A
    92033-1209 RING, SNAP
    RING, SNAP
  • 92046
    92046-1301 BEARING, NEEDLE, 7E, HVS16X22X12
    BEARING, NEEDLE, 7E, HVS16X22X12
  • 92049
    92049-0057 SEAL, OIL
    SEAL, OIL
  • 92055
    92055-1346 O-RING, ROD
    O-RING, ROD
  • 92055A
    92055-1383 O-RING
    O-RING
  • 92145
    92145-0016-8V SPRING, SHOCK, K=52N/MM (I.SILVER) (OPT.)
    SPRING, SHOCK, K=52N/MM (I.SILVER) (OPT.)
  • 92145A
    92145-0244-8V SPRING, SHOCK, K=54N/MM (I.SILVER)
    SPRING, SHOCK, K=54N/MM (I.SILVER)
  • 92145B
    92145-0383-8V SPRING, SHOCK, K=56N/MM (I.SILVER) (OPT.)
    SPRING, SHOCK, K=56N/MM (I.SILVER) (OPT.)
  • 92161
    92161-1172 DAMPER, SHOCKABSORBER
    DAMPER, SHOCKABSORBER
