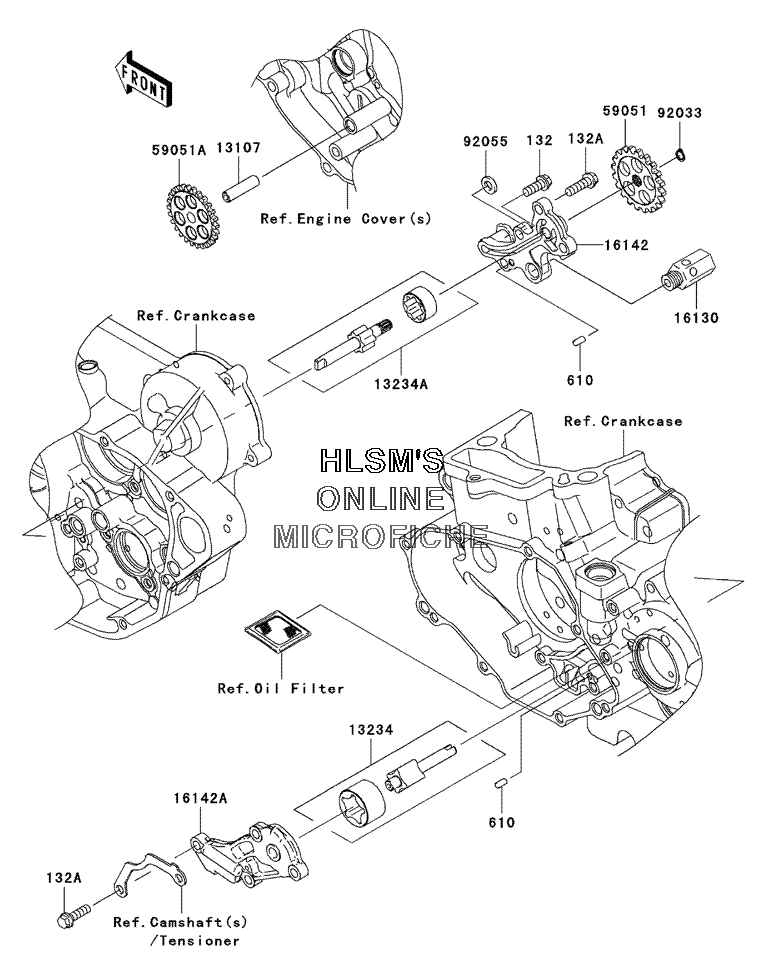

OIL PUMP для Kawasaki KX 450F - 2006 года выпуска

  • №
    Артикул
    Название
  • 132
    132G0616 BOLT, FLANGED, SMALL, 6X16
    BOLT, FLANGED, SMALL, 6X16
  • 132A
    132G0620 BOLT, FLANGED, SMALL, 6X20
    BOLT, FLANGED, SMALL, 6X20
  • 610
    610A0408 ROLLER, 4X8
    ROLLER, 4X8
  • 13107
    13107-0056 SHAFT
    SHAFT
  • 13234
    13234-0013 SHAFT, COMP, SCAVENGE
    SHAFT, COMP, SCAVENGE
  • 13234A
    13234-0014 SHAFT, COMP, FEED
    SHAFT, COMP, FEED
  • 16130
    16130-1058 VALVE, ASSY., RELIEF
    VALVE, ASSY., RELIEF
  • 16142
    16142-0031 COVER, PUMP, OIL (RIGHT)
    COVER, PUMP, OIL (RIGHT)
  • 16142A
    16142-0035 COVER, PUMP, OIL (LEFT)
    COVER, PUMP, OIL (LEFT)
  • 59051
    59051-0044 GEAR, SPUR, O/P DRIVEN, 28T
    GEAR, SPUR, O/P DRIVEN, 28T
  • 59051A
    59051-0045 GEAR, SPUR, O/P IDLER, 26T
    GEAR, SPUR, O/P IDLER, 26T
  • 92033
    92033-0019 RING, SNAP
    RING, SNAP
  • 92055
    92055-074 O-RING, OD=13
    O-RING, OD=13
