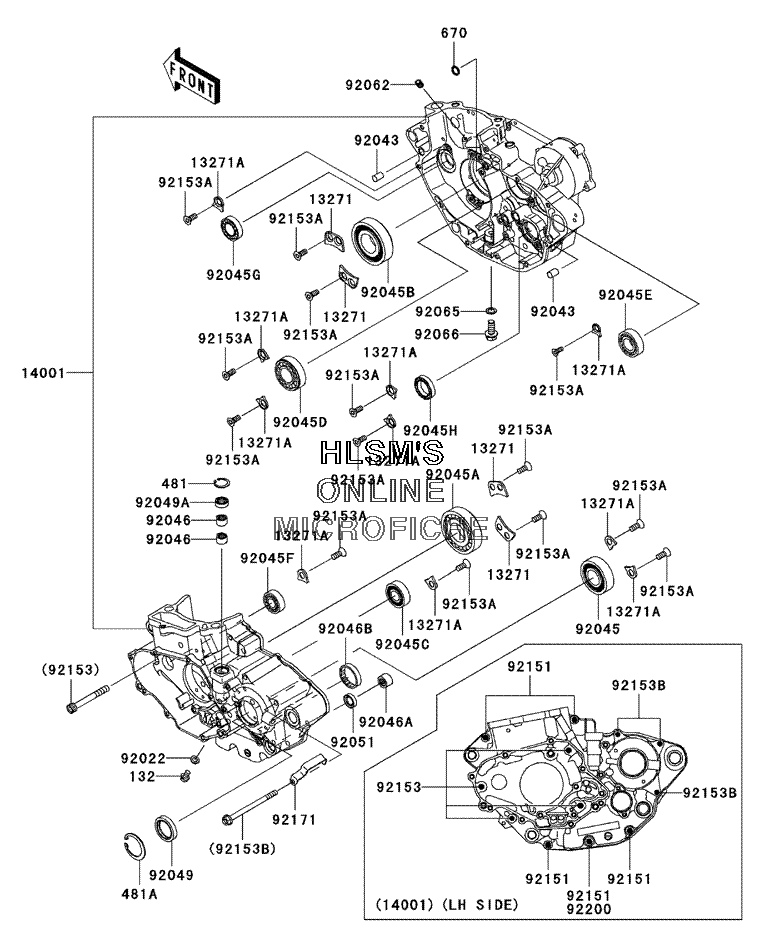

CRANKCASE для Kawasaki KX 450F - 2006 года выпуска

  • №
    Артикул
    Название
  • 132
    132L0608 BOLT, FLANGED, SMALL, 6X8
    BOLT, FLANGED, SMALL, 6X8
  • 481
    481J2100 CIRCLIP
    CIRCLIP
  • 481A
    481J4000 CIRCLIP, TYPE, C, 40MM
    CIRCLIP, TYPE, C, 40MM
  • 670
    670D1507 O-RING, 7MM
    O-RING, 7MM
  • 13271
    13271-0334 PLATE
    PLATE
  • 13271A
    13271-0345 PLATE
    PLATE
  • 14001
    14001-0056 SET, CRANKCASE
    SET, CRANKCASE
  • 92022
    92022-304 WASHER, 6.2X11X1
    WASHER, 6.2X11X1
  • 92043
    92043-1506 PIN
    PIN
  • 92045
    92045-0023 BEARING, BALL, 63/22X7LU/25
    BEARING, BALL, 63/22X7LU/25
  • 92045A
    92045-0024 BEARING, BALL, B32, 32U, A, EC4 UR5
    BEARING, BALL, B32, 32U, A, EC4 UR5
  • 92045B
    92045-0031 BEARING, BALL, B32, 32, A, DUX8EC4
    BEARING, BALL, B32, 32, A, DUX8EC4
  • 92045C
    92045-0034 BEARING, BALL, 17X40X12
    BEARING, BALL, 17X40X12
  • 92045D
    92045-0035 BEARING, BALL, 25X52X15
    BEARING, BALL, 25X52X15
  • 92045E
    92045-0036 BEARING, BALL, 20X42X12
    BEARING, BALL, 20X42X12
  • 92045F
    92045-0037 BEARING, BALL, 6202SH2C3
    BEARING, BALL, 6202SH2C3
  • 92045G
    92045-0038 BEARING, BALL, 6904C3UR5
    BEARING, BALL, 6904C3UR5
  • 92045H
    92045-1432 BEARING, BALL, 6805JRZ
    BEARING, BALL, 6805JRZ
  • 92046
    92046-1010 BEARING, NEEDLE, HK1210
    BEARING, NEEDLE, HK1210
  • 92046A
    92046-1148 BEARING, NEEDLE, HK1312
    BEARING, NEEDLE, HK1312
  • 92046B
    92046-1221 BEARING, NEEDLE, 7E, HKS33X38X8
    BEARING, NEEDLE, 7E, HKS33X38X8
  • 92049
    92049-0030 SEAL, OIL, TC 30 40 7
    SEAL, OIL, TC 30 40 7
  • 92049A
    92049-1475 SEAL, OIL, CLUTCH RELEASE
    SEAL, OIL, CLUTCH RELEASE
  • 92051
    92051-005 SEAL, OIL, TB13225.5
    SEAL, OIL, TB13225.5
  • 92062
    92062-1078 NOZZLE, 6X8, GREEN
    NOZZLE, 6X8, GREEN
  • 92065
    92065-058 GASKET, 10.5X16X1
    GASKET, 10.5X16X1
  • 92066
    92066-0038 PLUG, DRAIN, 10X22
    PLUG, DRAIN, 10X22
  • 92151
    92151-1545 BOLT, 6X50
    BOLT, 6X50
  • 92153
    92153-0846 BOLT, 7X60
    BOLT, 7X60
  • 92153A
    92153-0848 BOLT, 6X15
    BOLT, 6X15
  • 92153B
    92153-0934 BOLT, FLANGED, 6X85
    BOLT, FLANGED, 6X85
  • 92171
    92171-0579 CLAMP
    CLAMP
  • 92200
    92200-0171 WASHER, 6.3X13.5X1.0
    WASHER, 6.3X13.5X1.0
