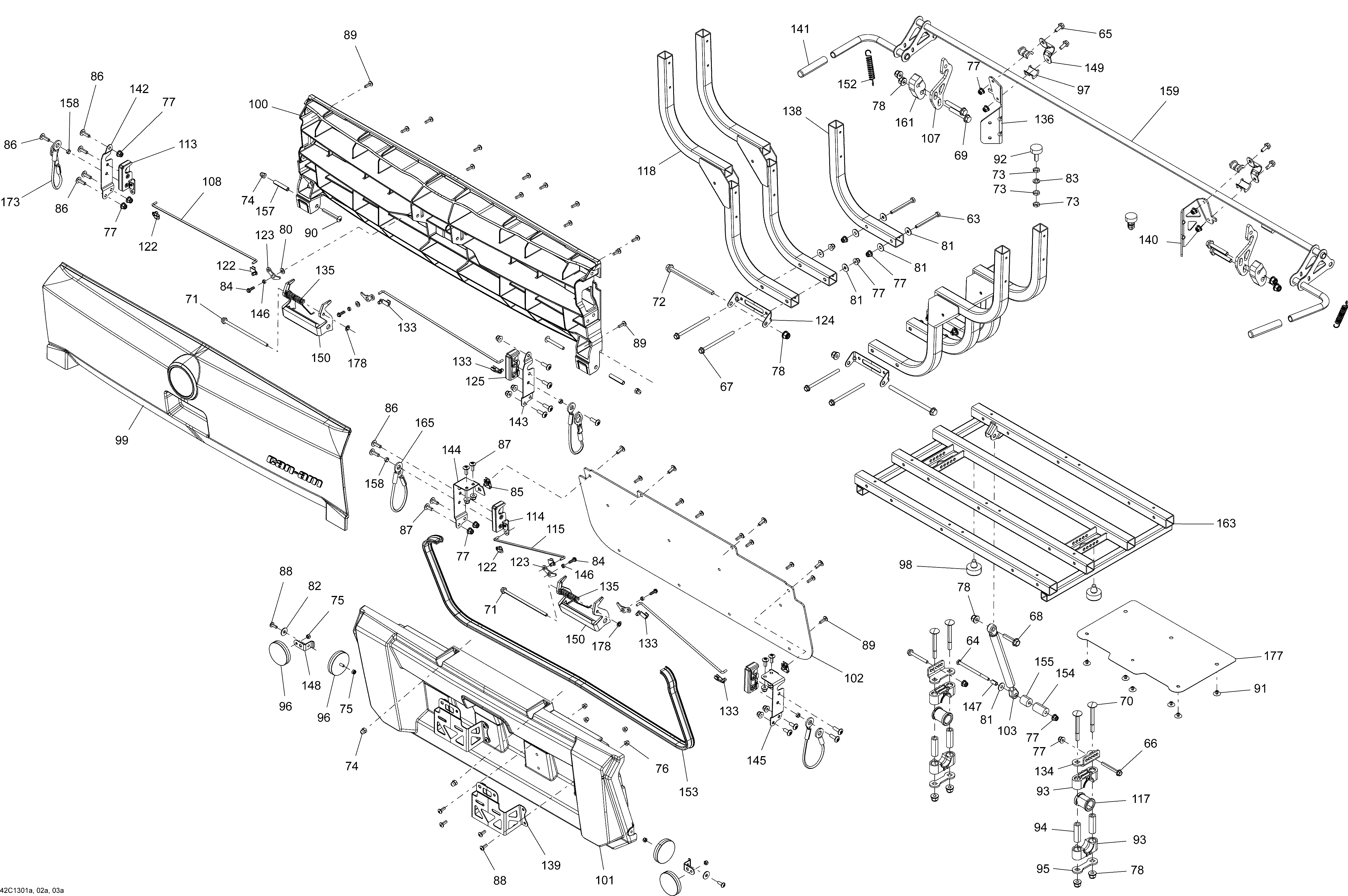

09- Rear Cargo Box Doors для BRP Commander STD, DPS, XT, X 1000 EFI - 2013
-
№АртикулНазвание
-
63207066544 Hex. Screw M6 X 65Hex. Screw M6 X 65
-
64207069044 Hex. Screw M6 X 90Hex. Screw M6 X 90
-
65207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
66207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
67207669584 Hex. Flanged Screw M6 X 95Hex. Flanged Screw M6 X 95
-
68207683544 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
69207685046 Hex. Flanged Screw M8 X 50Hex. Flanged Screw M8 X 50
-
70207787044 Carriage Bolt M8 X 70Carriage Bolt M8 X 70
-
71230663084 Hex. Flanged Screw M6 X 130Hex. Flanged Screw M6 X 130
-
72230683034 Hex. Flanged Screw M8 X 130Hex. Flanged Screw M8 X 130
-
73232180600 Hex. Jam Nut M8Hex. Jam Nut M8
-
74232361493 Domed Nut M6Domed Nut M6
-
75232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
76233251414 Hex. Flanged Elastic Nut M5. EuropeHex. Flanged Elastic Nut M5. Europe
-
77233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
78233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
80234061410 Flat Washer 6 mmFlat Washer 6 mm
-
81234062410 Flat Washer 6 mmFlat Washer 6 mm
-
82234062670 Flat WasherFlat Washer
-
83234181401 Lock Washer 8 mmLock Washer 8 mm
-
84241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
85250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
86250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
87250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
88250000145 Torx Screw M5 X 14. EuropeTorx Screw M5 X 14. Europe
-
89250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
90250000239 Torx Truss Screw M6 X 50Torx Truss Screw M6 X 50
-
91293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
92293720091 Frame Rubber BumperFrame Rubber Bumper
-
93506150400 Housing HalfHousing Half
-
94506150500 Housing BushingHousing Bushing
-
95506150600 Stopper PlateStopper Plate
-
96705002408 Reflector, Red. North America, InternationalReflector, Red. North America, International
-
97705500033 Half RingHalf Ring
-
98708000884 Rubber StopperRubber Stopper
-
99708300052 Outside Top Pannel, Yellow. XT YellowOutside Top Pannel, Yellow. XT Yellow
-
99708300052 Outside Top Pannel, Yellow. X BlackOutside Top Pannel, Yellow. X Black
-
99708300052 Outside Top Pannel, Yellow. DPSOutside Top Pannel, Yellow. DPS
-
99708300441 Outside Top Pannel, Red. RedOutside Top Pannel, Red. Red
-
99708300442 Outside Top Pannel, Camo. CAMOOutside Top Pannel, Camo. CAMO
-
99708300552 Outside Top Pannel, Magnesium. MagnesiumOutside Top Pannel, Magnesium. Magnesium
-
99708300673 Outside Top Pannel, Black Metal. Black Carbon FiberOutside Top Pannel, Black Metal. Black Carbon Fiber
-
100708300053 Inside Top PannelInside Top Pannel
-
101715001255 Lower Panel Ass'yLower Panel Ass'y
-
102708300073 Inside Bottom PannelInside Bottom Pannel
-
103708300512 Gaz ShockGaz Shock
-
107708300136 Box RetainerBox Retainer
-
108708300160 Top RodTop Rod
-
114708300162 LH LatchLH Latch
-
114708300201 RH LatchRH Latch
-
115708300164 Lower Bottom RodLower Bottom Rod
-
117708300172 Pivot BushingPivot Bushing
-
118708300174 Welded Lateral Support, BlackWelded Lateral Support, Black
-
122708300182 LH Tie Rod ClipLH Tie Rod Clip
-
123708300184 ActivatorActivator
-
124708300185 Bracket PivotBracket Pivot
-
125708300201 RH LatchRH Latch
-
133708300202 RH Tie Rod ClipRH Tie Rod Clip
-
134708300210 Adjustable Stopper PlateAdjustable Stopper Plate
-
135708300219 SpringSpring
-
136708300278 LH Latch Lever SupportLH Latch Lever Support
-
138708300340 Lateral Support, BlackLateral Support, Black
-
139708300349 Plate Support. EuropePlate Support. Europe
-
140708300351 RH Latch Lever SupportRH Latch Lever Support
-
141708300358 Cap Latch LeverCap Latch Lever
-
142708300359 LH Upper SupportLH Upper Support
-
143708300360 RH Upper SupportRH Upper Support
-
144708300361 LH Lower SupportLH Lower Support
-
145708300362 RH Lower SupportRH Lower Support
-
146708300365 BushingBushing
-
147708300366 BushingBushing
-
148708300367 Reflector Support. EuropeReflector Support. Europe
-
149708300392 Clamp ReatinerClamp Reatiner
-
150708300398 HandleHandle
-
152708300454 SpringSpring
-
153293250240 Neoprene sealNeoprene seal
-
154708300470 SpacerSpacer
-
155708300471 SpacerSpacer
-
157708300735 BushingBushing
-
158708300737 BushingBushing
-
159708300751 Cargo Handle Ass'yCargo Handle Ass'y
-
161708300754 SpacerSpacer
-
163708300758 Welded Box SupportWelded Box Support
-
165708300762 Lower Retainer CableLower Retainer Cable
-
173708300763 Upper Retainer CableUpper Retainer Cable
-
177708300780 Heat DeflectorHeat Deflector
-
178732610072 Push NutPush Nut
