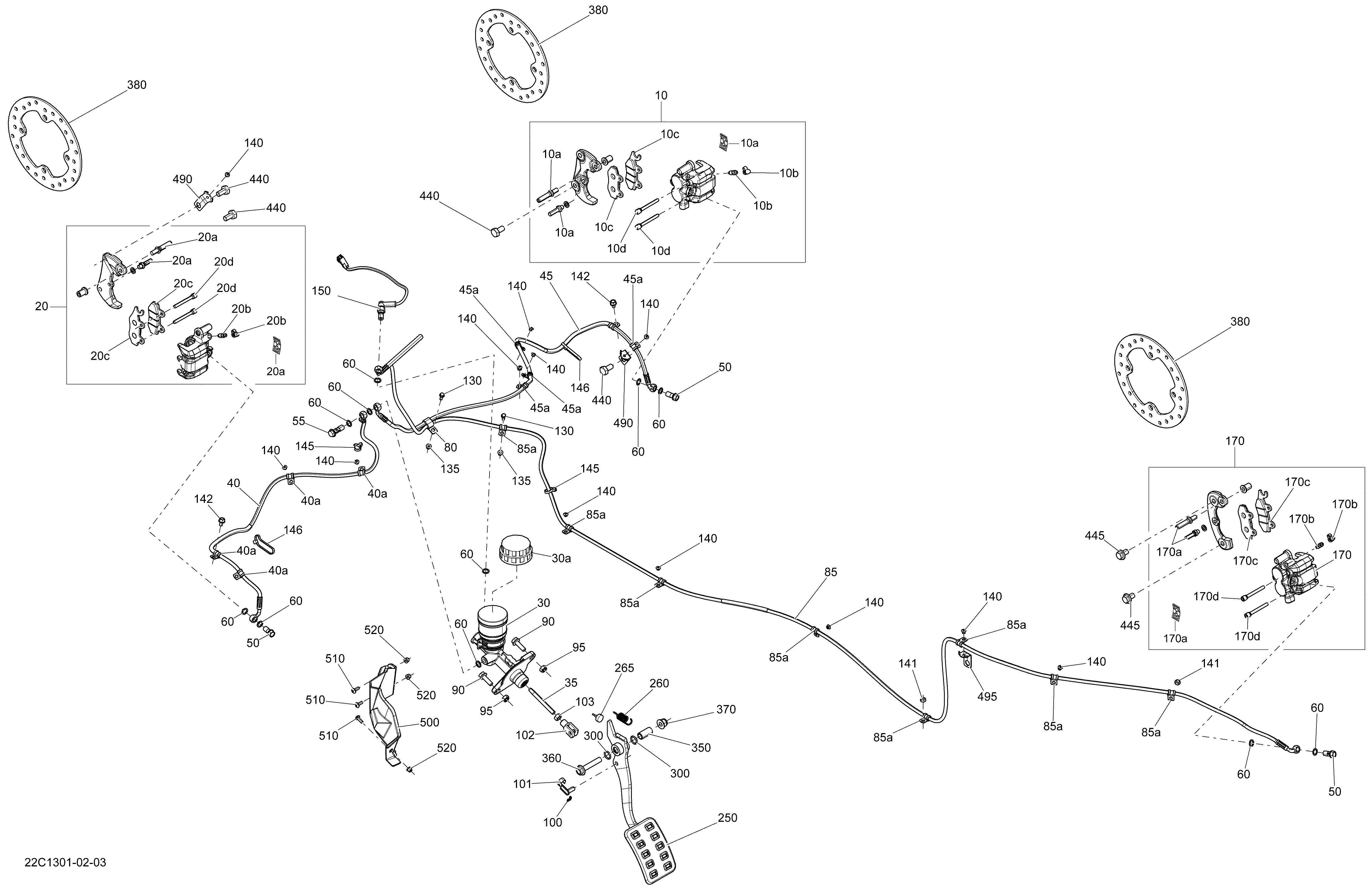

06- Brakes для BRP Commander STD, DPS, XT, X 1000 EFI - 2013

  • №
    Артикул
    Название
  • 10
    705600678 RH Caliper. Includes 10 to 10d
    RH Caliper. Includes 10 to 10d
  • 10a
    715500333 Spring Boot Kit
    Spring Boot Kit
  • 10b
    705600080 Bleeding Screw
    Bleeding Screw
  • 10c
    715500336 Brake Pad Kit
    Brake Pad Kit
  • 10d
    715500337 Pin Set
    Pin Set
  • 20
    705600679 LH Caliper. Includes 20 to 20d
    LH Caliper. Includes 20 to 20d
  • 20a
    715500333 Spring Boot Kit
    Spring Boot Kit
  • 20b
    705600080 Bleeding Screw
    Bleeding Screw
  • 20c
    715500335 Brake Pad Kit
    Brake Pad Kit
  • 20d
    715500337 Pin Set
    Pin Set
  • 30
    705600681 Master Cylinder. Includes 30 to 30a
    Master Cylinder. Includes 30 to 30a
  • 30a
    715500332 Diaphragm Cap Kit
    Diaphragm Cap Kit
  • 35
    705600833 Master Cylinder Rod
    Master Cylinder Rod
  • 40
    705600943 LH Front Hose. Includes 40 to 40a
    LH Front Hose. Includes 40 to 40a
  • 40a
    705600459 Clamp
    Clamp
  • 45
    705600944 RH Front Hose. Includes 45 to 45a
    RH Front Hose. Includes 45 to 45a
  • 45a
    705600459 Clamp
    Clamp
  • 50
    705600609 Banjo Bolt
    Banjo Bolt
  • 55
    705600958 Banjo Bolt
    Banjo Bolt
  • 60
    705600310 Copper Washer
    Copper Washer
  • 80
    293650220 Clamp
    Clamp
  • 85
    705600945 Rear Flexible Hose. Includes 85 to 85a
    Rear Flexible Hose. Includes 85 to 85a
  • 85a
    705600459 Clamp
    Clamp
  • 90
    207682544 Hex. Flanged Screw M8 X 25
    Hex. Flanged Screw M8 X 25
  • 95
    232581414 Hex. Elastic Stop Nut M8
    Hex. Elastic Stop Nut M8
  • 100
    371800700 Cotter Pin
    Cotter Pin
  • 101
    250400056 Pin
    Pin
  • 102
    705600100 Yoke
    Yoke
  • 103
    232081414 Hex. Nut M8
    Hex. Nut M8
  • 130
    210251680 Hex. Forming Screw M5 X 16
    Hex. Forming Screw M5 X 16
  • 135
    233251494 Elastic Flanged Nut M5
    Elastic Flanged Nut M5
  • 140
    390402200 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 141
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 142
    210261040 Hex. Flanged Screw M6 X 10
    Hex. Flanged Screw M6 X 10
  • 145
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 146
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 150
    705600946 Brake Switch
    Brake Switch
  • 170
    705600872 Rear Caliper. Includes 170 to 170d
    Rear Caliper. Includes 170 to 170d
  • 170a
    715500333 Spring Boot Kit
    Spring Boot Kit
  • 170b
    705600080 Bleeding Screw
    Bleeding Screw
  • 170c
    715500336 Brake Pad Kit
    Brake Pad Kit
  • 170d
    715500337 Pin Set
    Pin Set
  • 250
    705600724 Brake Pedal
    Brake Pedal
  • 260
    705600792 Brake Pedal Spring
    Brake Pedal Spring
  • 265
    708000759 Rubber Stopper
    Rubber Stopper
  • 300
    293300144 O-Ring
    O-Ring
  • 350
    705600815 Inner Spacer
    Inner Spacer
  • 360
    207605544 Hex. Flanged Screw M10 X 55
    Hex. Flanged Screw M10 X 55
  • 370
    233201414 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 380
    705600684 Brake Disc
    Brake Disc
  • 440
    250000057 Hex. Screw M10 X 20, Scotch Grip
    Hex. Screw M10 X 20, Scotch Grip
  • 445
    250000060 Flanged Screw M10 X 16, Scotch Grip
    Flanged Screw M10 X 16, Scotch Grip
  • 490
    705601088 Bracket
    Bracket
  • 495
    705601088 Bracket
    Bracket
  • 500
    705600917 LH Front Deflector
    LH Front Deflector
  • 510
    250000145 Torx Screw M5 X 14
    Torx Screw M5 X 14
  • 520
    233251494 Elastic Flanged Nut M5
    Elastic Flanged Nut M5
